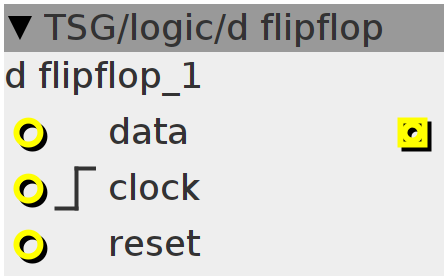

d flipflop

D-flipflop. Shifts the logic state on its data input into its storage on each rising edge of the clock input.
Author: Johannes Elliesen
License: BSD
Github: TSG/logic/d flipflop.axo

Inlets

bool32 data

bool32 reset

bool32.rising clock input

Outlets

bool32 output

Declaration
int last_clock;
int data;
Init
last_clock = 0;
data = 0;
Control Rate
if ((inlet_clock > 0) && (last_clock <= 0)) {
  data = (inlet_data > 0) ? (1 << 27) : 0;
}
if (inlet_reset > 0)
  data = 0;

last_clock = inlet_clock;
outlet_o = data;
