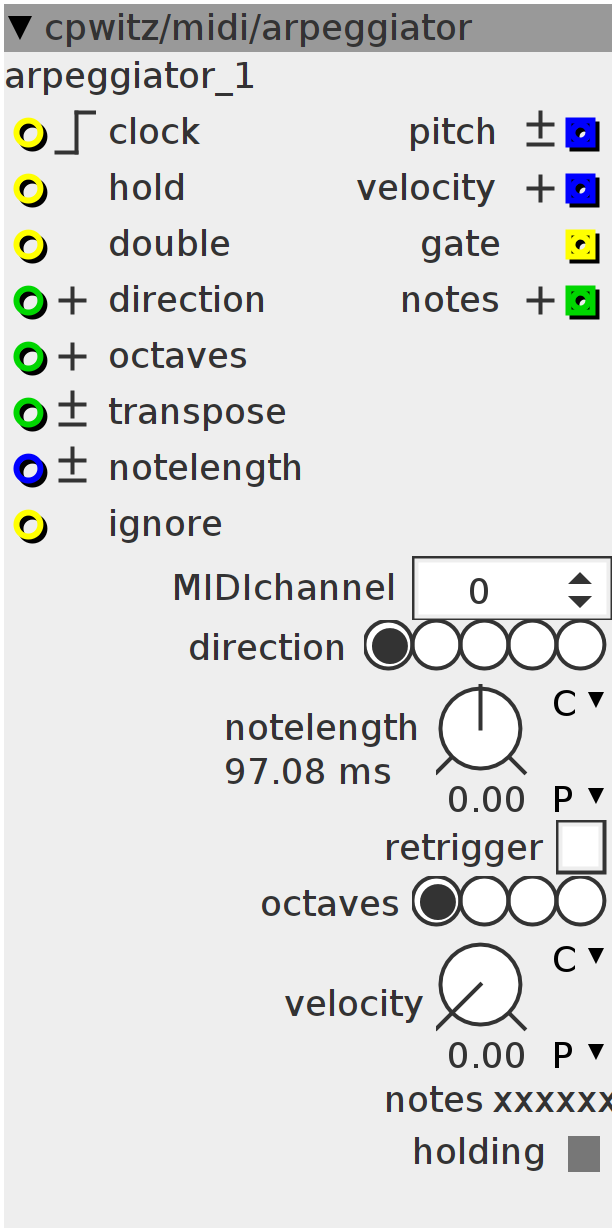

arpeggiator
MIDI arpeggiator. Receives MIDI notes on the channel set with the attribute MIDIchannel (0=all channels). Arpeggio directions: Up, down, up/down, random and play order. Configurable note length and velocity (velocity setting 0 uses the velocity of the played note). "Hold mode " to latch played notes (MIDI sustain pedal also triggers hold). Needs to be clocked from an LFO or MIDI clock input to produce notes. Semitone transpose input. Can add up to 3 octaves to the arpeggiated notes. "Retrigger " checkbox: If the notelength is longer than the clock interval, retriggers the gate every time a new arpeggio note is played. "Ignore " inlet: incoming MIDI notes are ignored as long as input is "high". Special feature: If "ignore" is on and "hold" is re-enabled, the last used latched notes are loaded again.
Inlets
bool32.rising clock
bool32 hold arpeggio
bool32 double stroke each arpeggiated note
bool32 don't receive midi notes!
int32.positive arp direction (0-4)
int32.positive number of addition octaves (0-3)
int32.bipolar transpose semitones
frac32.bipolar modulate note length
Outlets
bool32 gate
int32.positive number of notes in arpeggio
frac32.bipolar pitch
frac32.positive velocity
Parameters
bool32.tgl retrigger gate if notelength is longer than clock input
frac32.u.map 0=as played
int32.hradio ↑, ↓, ↕, rand, order
int32.hradio octaves
frac32.s.map.klineartime.exp notelength
Attributes
spinner arpeggio input midi channel (0=all channels)
Displays
bool32 holding
int32.label notes
int8_t notes[128];
int8_t notes_ord[128];
int8_t released_on_hold[128];
int8_t latched_notes[256]; // holdes last latched and ordered notes
int notecount;
int ntrigclock;
int ngate;
int highest_note;
int lowest_note;
int order_pos;
int octave;
int moveup;
int holding;
int sustainpedal;
int dehold_lock;
int ignored;
int32_t lastnote;
int32_t gateval;
int32_t outpitch;
uint32_t outvelo;
int secondclock;outpitch = 0;
outvelo = 0;
notecount = 0;
ntrigclock = 0;
lastnote = 0;
gateval = 0;
ngate = 0;
highest_note = 0;
lowest_note = 0;
order_pos = 0;
octave = 0;
moveup = 1;
holding = 0;
sustainpedal = 0;
dehold_lock = 0;
secondclock = 0;
ignored = 0;
for (int i = 0; i < 128; i++) {
notes[i] = 0;
notes_ord[i] = 0;
released_on_hold[i] = 0;
latched_notes[i] = latched_notes[i + 128] = 0;
}if ((inlet_clock > 0) && !ntrigclock) {
// clock received
if (notecount > 0) {
if (inlet_double > 0 && secondclock > 0) {
ngate = 1;
} else {
int32_t playnote = 0;
int32_t nextnote;
int nextoctave = octave;
int direction = (param_direction + inlet_direction) % 5;
int number_octaves = (param_octaves + inlet_octaves) % 4;
if (direction == 0) {
// up
nextnote = lastnote;
do {
nextnote = (nextnote + 1) % 128;
if (notes[nextnote] != 0) {
playnote = nextnote;
if (playnote == highest_note) {
nextoctave = (octave + 1) % (number_octaves + 1);
}
break;
}
} while (nextnote != lastnote);
}
if (direction == 1) {
// down
nextnote = lastnote;
do {
nextnote = nextnote - 1;
if (nextnote < 0)
nextnote = 127;
if (notes[nextnote] != 0) {
playnote = nextnote;
if (playnote == lowest_note) {
nextoctave = octave - 1;
if (nextoctave < 0) {
nextoctave = number_octaves;
};
}
break;
}
} while (nextnote != lastnote);
}
if (direction == 2) {
// up/down
nextnote = lastnote;
if (moveup) {
do {
nextnote = (nextnote + 1) % 128;
if (notes[nextnote] != 0) {
playnote = nextnote;
if (playnote == highest_note) {
nextoctave = (octave + 1) % (number_octaves + 1);
if (nextoctave == 0) {
nextoctave = (number_octaves > 0 && notecount == 1)
? octave - 1
: octave;
moveup = 0;
}
}
break;
}
} while (nextnote != lastnote);
} else {
do {
nextnote = nextnote - 1;
if (nextnote < 0)
nextnote = 127;
if (notes[nextnote] != 0) {
playnote = nextnote;
if (playnote == lowest_note) {
nextoctave = octave - 1;
if (nextoctave < 0) {
nextoctave = (number_octaves > 0 && notecount == 1) ? 1 : 0;
moveup = 1;
};
}
break;
}
} while (nextnote != lastnote);
}
}
if (direction == 3) {
// rand
int rand = GenerateRandomNumber();
int randpos = ((rand < 0 ? -rand + 1 : rand) % (notecount));
playnote = notes_ord[randpos];
rand = GenerateRandomNumber();
nextoctave = ((rand < 0 ? -rand + 1 : rand) % (number_octaves + 1));
}
if (direction == 4) {
// order
playnote = notes_ord[order_pos];
if (order_pos == notecount - 1) {
nextoctave = (octave + 1) % (number_octaves + 1);
}
order_pos = (order_pos + 1) % notecount;
}
if (playnote > 0) {
outpitch = (playnote + inlet_transpose + 12 * octave - 64) << 21;
// LogTextMessage("Triggering #%i %i", playnote, outpitch);
outvelo = param_velocity > 0 ? param_velocity : (notes[playnote] << 20);
ngate = 1;
lastnote = playnote;
octave = nextoctave;
}
}
secondclock = secondclock == 0 ? 1 : 0;
}
ntrigclock = 1;
}
if (!(inlet_clock > 0) && ntrigclock) {
ntrigclock = 0;
}
// create gate pulse
if (ngate > 0) {
// check if gate is closed
if (gateval <= 0 || param_retrigger == 0) {
gateval = 1 << 30;
ngate = 0;
} else {
// retrigger
gateval = 0;
}
}
if (gateval > 0) {
int32_t t;
MTOF(-(param_notelength + inlet_notelength), t);
gateval -= t >> 3;
if (gateval <= 0)
outlet_gate = 0;
else
outlet_gate = 1;
} else
outlet_gate = 0;
outlet_pitch = outpitch;
outlet_velocity = outvelo;
disp_notes = notecount;
outlet_notes = notecount;
ignored = inlet_ignore;
int new_holding = sustainpedal | inlet_hold;
if (holding == 0 && new_holding > 0 && ignored > 0 && notecount == 0) {
dehold_lock = 1;
// restore last latch if no notes are pressed and ignore is on
order_pos = 0;
for (int i = 0; i < 128; i++) {
notes[i] = latched_notes[i];
notes_ord[i] = latched_notes[i + 128];
if (notes_ord[i] > 0) {
order_pos++;
}
if (notes[i] > 0) {
notecount++;
released_on_hold[i] = 1;
}
}
octave = 0;
moveup = 1;
lastnote = notecount > 0 ? notecount - 1 : 0;
secondclock = 0;
dehold_lock = 0;
}
if (holding == 1 && new_holding == 0) {
dehold_lock = 1;
int store_hold = notecount;
// here comes nasty copy&paste code from the midi section :(
for (int r = 0; r < 128; r++) {
// store last latched
if (store_hold > 0) {
latched_notes[r] = notes[r];
latched_notes[r + 128] = notes_ord[r];
}
if (released_on_hold[r] == 1) {
released_on_hold[r] = 0;
notes[r] = 0;
notecount = notecount > 0 ? notecount - 1 : 0;
// find in play order array and remove it
int orderpos = -1;
for (int i = 0; i < 128; i++) {
if (notes_ord[i] == r) {
orderpos = i;
break;
}
}
if (orderpos > -1) {
for (int i = 0; i < notecount - orderpos; i++) {
notes_ord[i + orderpos] = notes_ord[i + orderpos + 1];
}
notes_ord[notecount + 1] = 0;
}
}
}
for (int i = 0; i < 128; i++) {
if (notes[i] > 0) {
lowest_note = i;
break;
}
}
for (int i = 127; i >= 0; i--) {
if (notes[i] > 0) {
highest_note = i;
break;
}
}
dehold_lock = 0;
}
holding = new_holding;
disp_holding = holding;int channel = (status & 0xf) + 1;
int cmd = (status & 0x70) >> 4;
if ((channel != attr_MIDIchannel && attr_MIDIchannel > 0) || dehold_lock) {
return;
}
bool resetStartNote = false;
// some midi devices send note on with velocity 0 instead of note off
if (cmd == 1 && data2 == 0) {
cmd = 0;
}
if (cmd == 1 && ignored == 0) {
// note on
// LogTextMessage("Pressed: %i (%i)", data1, data2);
if (notecount == 0) {
resetStartNote = true;
}
if (notes[data1] == 0) {
notecount++;
notes_ord[notecount - 1] = data1;
}
notes[data1] = data2;
released_on_hold[data1] = 0;
} else if (cmd == 0 && ignored == 0) {
// note off
// LogTextMessage("Release: %i", data1);
if (holding) {
released_on_hold[data1] = 1;
} else {
if (notes[data1] != 0) {
notecount = notecount > 0 ? notecount - 1 : 0;
notes[data1] = 0;
// find in play order array and remove it
int orderpos = -1;
for (int i = 0; i < 128; i++) {
if (notes_ord[i] == data1) {
orderpos = i;
break;
}
}
if (orderpos > -1) {
for (int i = 0; i < notecount - orderpos; i++) {
notes_ord[i + orderpos] = notes_ord[i + orderpos + 1];
}
notes_ord[notecount + 1] = 0;
}
}
}
} else if (cmd == 3 && data1 == 64 && ignored == 0) {
sustainpedal = data2 > 0 ? 1 : 0;
}
if (ignored == 0 && (cmd == 0 || cmd == 1)) {
// find highest and lowest note
for (int i = 0; i < 128; i++) {
if (notes[i] > 0) {
lowest_note = i;
break;
}
}
for (int i = 127; i >= 0; i--) {
if (notes[i] > 0) {
highest_note = i;
break;
}
}
if (resetStartNote) {
order_pos = 0;
octave = 0;
moveup = 1;
lastnote = 0;
}
/*// debug out
for (int i=0;i<notecount;i++) {
LogTextMessage("%i = #%i", i+1, notes_ord[i]);
} */
}
