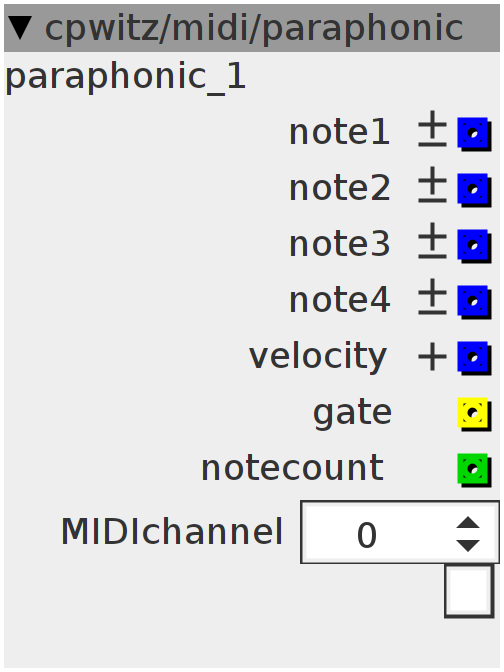

paraphonic
4 note paraphonic midi input. DISCLAIMER: "Paraphonic" does not mean "polyphonic". If you intend to build a real polyphonic patch, use the recommended "polyphonic subpatch" approach! This object is designed to build a so-called "paraphonic" synthesizer voice. The outlets note1-4 deliver the notes of up to four pressed keys. If only one key is pressed, all note outlets send the same note unisono. Up to three additionally pressed keys are distributed over the outlets. More keys than four are simply ignored. The gate outlet is high as long as any key is pressed. The "retrigger" checkbox turns on retriggering of the gate outlet with every additional keystroke. The velocity outlet delivers the velocity of the first hit key. If you just want to make a "duophonic" voice (2 pitches) or "triphonic" (3 pitches) just connect only note1-2 or note1-3 and leave the remaining notes unconnected. Set the receiving input midi channel with the MIDIchannel attribute. Channel 0 means "listen on all channels".
Inlets
None
Outlets
int32 notecount
frac32.bipolar note1
frac32.bipolar note2
frac32.bipolar note3
frac32.bipolar note4
frac32.positive velocity
bool32 gate
Parameters
bool32.tgl retrigger
Attributes
spinner MIDIchannel
#define MAX_VOX 4
int8_t pressed_note[MAX_VOX];
int32_t pitches[MAX_VOX];
int notecount = 0;
int32_t velocity = 0;
int retrigger = 0;
int doretrigger = 0;for (int i = 0; i < MAX_VOX; i++) {
pressed_note[i] = 0;
pitches[i] = 0;
}if (doretrigger) {
doretrigger = 0;
outlet_gate = 0;
} else {
outlet_gate = notecount > 0 ? 1 : 0;
}
outlet_note1 = pitches[0];
outlet_note2 = pitches[1];
outlet_note3 = pitches[2];
outlet_note4 = pitches[3];
outlet_velocity = velocity;
outlet_notecount = notecount;
retrigger = param_retrigger;int channel = (status & 0xf) + 1;
int cmd = (status & 0x70) >> 4;
if ((channel != attr_MIDIchannel && attr_MIDIchannel > 0)) {
return;
}
// some midi devices send note on with velocity 0 instead of note off
if (cmd == 1 && data2 == 0) {
cmd = 0;
}
if (cmd == 1) {
// note on
if (notecount < MAX_VOX) {
if (notecount == 0) {
velocity = data2 << 20;
}
for (int i = 0; i < MAX_VOX; i++) {
if (pressed_note[i] == 0) {
pressed_note[i] = data1;
notecount++;
break;
}
}
} else {
pressed_note[MAX_VOX - 1] = data1;
}
if (retrigger) {
doretrigger = 1;
}
} else if (cmd == 0) {
// note off
for (int i = 0; i < MAX_VOX; i++) {
if (pressed_note[i] == data1) {
pressed_note[i] = 0;
notecount--;
break;
}
}
}
if ((cmd == 1 || cmd == 0) && notecount > 0) {
// distribute pitches
int notei = 0;
for (int i = 0; i < MAX_VOX; i++) {
while (pressed_note[notei] == 0) {
notei = (notei + 1) % MAX_VOX;
}
pitches[i] = (pressed_note[notei] - 64) << 21;
notei++;
}
}
if ((cmd == 3) && (data1 == 123)) { // all notes off message
for (int i = 0; i < MAX_VOX; i++) {
pressed_note[i] = 0;
}
notecount = 0;
}
