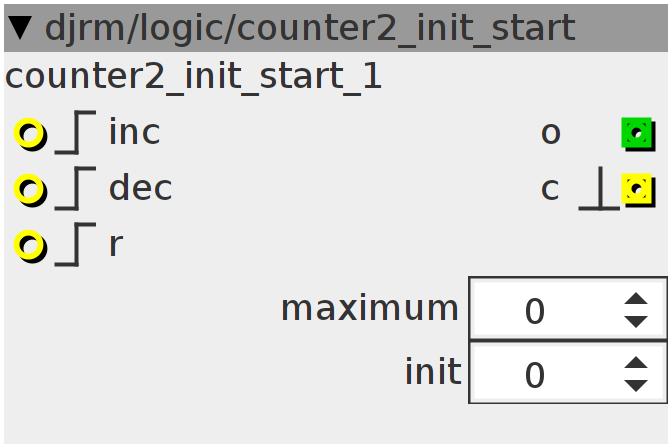

counter2_init_start
cyclic up/down counter with initial start value
Inlets
bool32.rising increment trigger
bool32.rising decrement trigger
bool32.rising reset
Outlets
int32 output
bool32.pulse carry pulse
Parameters
int32 maximum
int32 init
Declaration
int ntrig;
int rtrig;
int dtrig;
int count;
int somme;
Init
count = 0;
ntrig = 0;
dtrig = 0;
rtrig = 0;
somme = 0;
Control Rate
outlet_c = 0;
somme = count + param_init;
if ((inlet_inc > 0) && !ntrig) {
count++;
if (somme >= param_maximum) {
count = -(param_init);
outlet_c = 1;
}
ntrig = 1;
} else if (!(inlet_inc > 0))
ntrig = 0;
if ((inlet_dec > 0) && !dtrig) {
count--;
if (somme < 1) {
count = param_maximum - param_init;
outlet_c = 1;
}
dtrig = 1;
} else if (!(inlet_dec > 0))
dtrig = 0;
if ((inlet_r > 0) && !rtrig) {
count = 0;
rtrig = 1;
} else if (!(inlet_r > 0))
rtrig = 0;
outlet_o = somme;
