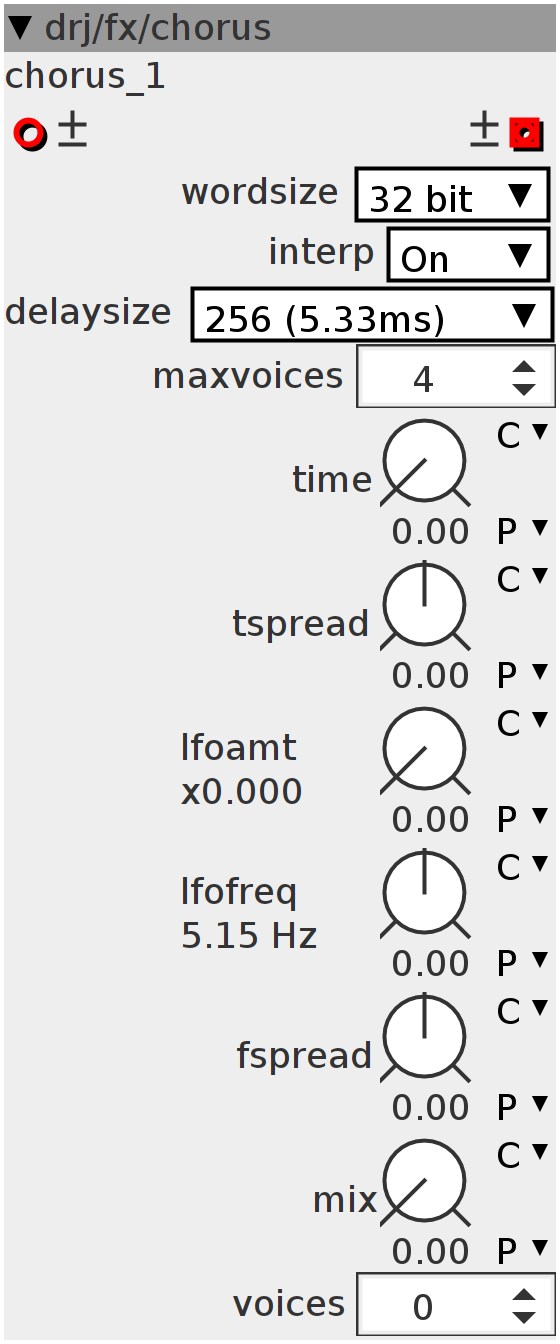

chorus

$\text{[math]}$

Chorus

Author: Are Leistad

License: BSD

Github: drj/fx/chorus.axo

IO Variants: 3

Variant: 1

Inlets

frac32buffer.bipolar Input

Outlets

frac32buffer.bipolar Output

Parameters

frac32.s.map.lfopitch LFO frequency

int32 Number of voices, 1..maxvoices, 0 for disable

frac32.u.map Delay time

frac32.u.map Dry/wet mix

frac32.s.map Time spread

frac32.s.map Frequency spread

frac32.u.map.squaregain LFO amount

Attributes

combo wordsize

combo interp

combo delaysize

spinner maxvoices

Declaration

#define WORDSIZE attr_wordsize
#define INTERPOLATE attr_interp
#define CHORUS_USE_SDRAM
// attr_storage

static const uint32_t LENGTHPOW = (attr_delaysize);
static const uint32_t LENGTH = (1 << attr_delaysize);
static const uint32_t LENGTHMASK = ((1 << attr_delaysize) - 1);
static const uint32_t WORDLENGTH = attr_wordsize;

#ifdef CHORUS_USE_SDRAM
#if WORDSIZE == 32
int32_t *array;
#elif WORDSIZE == 16
int16_t *array;
#elif WORDSIZE == 12
int16_t *array;
#elif WORDSIZE == 8
int8_t *array;
#elif WORDSIZE == 4
int8_t *array;
#endif
#else
#if WORDSIZE == 32
int32_t array[LENGTH];
#elif WORDSIZE == 16
int16_t array[LENGTH];
#elif WORDSIZE == 12
int16_t array[LENGTH];
#elif WORDSIZE == 8
int8_t array[LENGTH];
#elif WORDSIZE == 4
int8_t array[LENGTH];
#endif
#endif

int32_t nvoices;
int32_t old_nvoices;
int32_t voice_vol;
int32_t time[attr_maxvoices];
int32_t lfo_prev[attr_maxvoices];
int32_t lfo_step[attr_maxvoices];
int32_t lfo_i[attr_maxvoices];
uint32_t lfo_phase[attr_maxvoices];
uint32_t writepos;

Init

#ifdef CHORUS_USE_SDRAM
#if WORDSIZE == 32
static int32_t _array[attr_poly][LENGTH] __attribute__((section(".sdram")));
#elif WORDSIZE == 16
static int16_t _array[attr_poly][LENGTH] __attribute__((section(".sdram")));
#elif WORDSIZE == 12
static int16_t _array[attr_poly][LENGTH] __attribute__((section(".sdram")));
#elif WORDSIZE == 8
static int8_t _array[attr_poly][LENGTH] __attribute__((section(".sdram")));
#elif WORDSIZE == 4
static int8_t _array[attr_poly][LENGTH] __attribute__((section(".sdram")));
#endif
array = &_array[parent->polyIndex][0];
#endif

for (int i = 0; i < LENGTH; ++i) {
  array[i] = 0;
}

for (int v = 0; v < attr_maxvoices; ++v) {
  lfo_phase[v] = 0;
  lfo_prev[v] = 0;
  lfo_step[v] = 0;
  lfo_i[v] = 0;
}

nvoices = 0;
old_nvoices = -1;
voice_vol = (1 << 30);
writepos = 0;

Control Rate

// Voice scaling
if (param_voices != old_nvoices) {
  nvoices = param_voices <= attr_maxvoices ? param_voices : attr_maxvoices;
  if (nvoices > 0) {
    voice_vol = (int32_t)((1 << 30) * 1.0f / _VSQRTF(nvoices));
    // voice_vol = (int32_t) ((1<<30) * 1.0f / pow( nvoices, 0.4f ));  // for a
    // bit more oomph with more voices
  }
  old_nvoices = nvoices;
}

// Modulation
int32_t spread = 0;
for (int v = 0; v < nvoices; ++v) {
  time[v] = ___SMMLA(param_tspread << 3, spread, param_time);
  int32_t lfo_freq = ___SMMLA(param_fspread << 3, spread, param_lfofreq);
  spread += (1 << 27); // 0, 16, 32, 48, shifted for scaling in ___SMMUL
  int32_t lfo_out;

  MTOFEXTENDED(lfo_freq, lfo_freq);
  lfo_phase[v] += lfo_freq >> 2;
  SINE2TINTERP(lfo_phase[v], lfo_out)
  lfo_out = ___SMMUL(param_lfoamt >> 1, lfo_out);

  // LFO smoothing
  lfo_step[v] = (lfo_out - lfo_prev[v]) >> 4;
  lfo_i[v] = lfo_prev[v];
  lfo_prev[v] = lfo_out;
}

// Delay line write
for (int buffer_index = 0; buffer_index < BUFSIZE; ++buffer_index) {
  // Delay line write
  writepos = (writepos + 1) & LENGTHMASK;

#if WORDSIZE == 32
  array[writepos] = __SSAT(inlet_in[buffer_index], 28);
#elif WORDSIZE == 16
  array[writepos] = __SSAT(inlet_in[buffer_index] >> 12, 16);
#elif WORDSIZE == 12
  array[writepos] = __SSAT(inlet_in[buffer_index] >> 16, 12);
#elif WORDSIZE == 8
  array[writepos] = __SSAT(inlet_in[buffer_index] >> 20, 8);
#elif WORDSIZE == 4
  array[writepos] = __SSAT(inlet_in[buffer_index] >> 24, 4);
#endif
}

// Voices
for (int buffer_index = 0; buffer_index < BUFSIZE; ++buffer_index) {
  int32_t chorus_out = 0;
  for (int v = 0; v < nvoices; ++v) {
    // LFO smoothing
    int32_t lfo_out_interp = lfo_i[v];
    lfo_i[v] += lfo_step[v];

#if INTERPOLATE == 0

    int32_t time_mod;
    uint32_t tmp_d;
    uint32_t tmp_di;
    int32_t tmp_r;

    time_mod = ___SMMUL(time[v], lfo_out_interp);
    tmp_d = __USAT(time[v] + time_mod, 27);
    uint32_t tmp_d_limited = tmp_d >> (27 - LENGTHPOW);
    if (tmp_d_limited > LENGTHMASK - BUFSIZE) {
      tmp_d_limited = LENGTHMASK - BUFSIZE;
      tmp_d = 0;
    }
    tmp_di = writepos - tmp_d_limited - BUFSIZE + buffer_index - 1;

// uint32_t delay1 = writepos - (__USAT(param_time +
// inlet_time,27)>>(27-LENGTHPOW)) - BUFSIZE + buffer_index; outlet_out =
// array[tmp_di & LENGTHMASK]<<14;
#if WORDSIZE == 32
    tmp_r = array[tmp_di & LENGTHMASK] << 2;
#elif WORDSIZE == 16
    tmp_r = array[tmp_di & LENGTHMASK] << 14;
#elif WORDSIZE == 12
    tmp_r = array[tmp_di & LENGTHMASK] << 18;
#elif WORDSIZE == 8
    tmp_r = array[tmp_di & LENGTHMASK] << 22;
#elif WORDSIZE == 4
    tmp_r = array[tmp_di & LENGTHMASK] << 26;
#endif

    chorus_out = ___SMMLA(voice_vol, tmp_r, chorus_out);

#else

    int32_t time_mod;
    uint32_t tmp_d;
    uint32_t tmp_di;
    uint32_t tmp_w1;
    uint32_t tmp_w2;
    int32_t tmp_a1;
    int32_t tmp_a2;
    int32_t tmp_r;

    time_mod = ___SMMUL(time[v], lfo_out_interp);
    tmp_d = __USAT(time[v] + time_mod, 27);
    uint32_t tmp_d_limited = tmp_d >> (27 - LENGTHPOW);
    if (tmp_d_limited > LENGTHMASK - BUFSIZE) {
      tmp_d_limited = LENGTHMASK - BUFSIZE;
      tmp_d = 0;
    }
    tmp_di = writepos - tmp_d_limited - BUFSIZE + buffer_index - 1;
    tmp_w1 = (tmp_d << (LENGTHPOW + 3)) & 0x3FFFFFFF;
    tmp_w2 = (1 << 30) - tmp_w1;
#if WORDSIZE == 32
    tmp_a1 = array[tmp_di & LENGTHMASK] << 2;
    tmp_a2 = array[(tmp_di + 1) & LENGTHMASK] << 2;
#elif WORDSIZE == 16
    tmp_a1 = array[tmp_di & LENGTHMASK] << 14;
    tmp_a2 = array[(tmp_di + 1) & LENGTHMASK] << 14;
#elif WORDSIZE == 12
    tmp_a1 = array[tmp_di & LENGTHMASK] << 18;
    tmp_a2 = array[(tmp_di + 1) & LENGTHMASK] << 18;
#elif WORDSIZE == 8
    tmp_a1 = array[tmp_di & LENGTHMASK] << 22;
    tmp_a2 = array[(tmp_di + 1) & LENGTHMASK] << 22;
#elif WORDSIZE == 4
    tmp_a1 = array[tmp_di & LENGTHMASK] << 26;
    tmp_a2 = array[(tmp_di + 1) & LENGTHMASK] << 26;
#endif
    tmp_r = ___SMMUL(tmp_a1, tmp_w1);
    tmp_r = ___SMMLA(tmp_a2, tmp_w2, tmp_r);

    chorus_out = ___SMMLA(voice_vol, tmp_r << 2, chorus_out);

#endif
  }
  chorus_out = ___SMMUL(param_mix << 3, chorus_out << 2);
  chorus_out = ___SMMLA(((1 << 27) - param_mix) << 3,
                        inlet_in[buffer_index] << 2, chorus_out);
  outlet_out[buffer_index] = __SSAT(chorus_out, 28);
}

Variant: 2

Inlets

frac32.positive Delay time

frac32.positive LFO amount

frac32.positive Dry/wet mix

frac32.bipolar Time spread

frac32.bipolar LFO frequency

frac32.bipolar Frequency spread

int32.positive Number of voices, added to voices parameter, 1..maxvoices, 0 for disable

frac32buffer.bipolar Input

Outlets

frac32buffer.bipolar Output

Parameters

frac32.s.map.lfopitch LFO frequency

int32 Number of voices, 1..maxvoices, 0 for disable

frac32.u.map Delay time

frac32.u.map Dry/wet mix

frac32.s.map Time spread

frac32.s.map Frequency spread

frac32.u.map.squaregain LFO amount

Attributes

combo wordsize

combo interp

combo delaysize

spinner maxvoices

Declaration

#define WORDSIZE attr_wordsize
#define INTERPOLATE attr_interp
#define CHORUS_USE_SDRAM

static const uint32_t LENGTHPOW = (attr_delaysize);
static const uint32_t LENGTH = (1 << attr_delaysize);
static const uint32_t LENGTHMASK = ((1 << attr_delaysize) - 1);
static const uint32_t WORDLENGTH = attr_wordsize;

#ifdef CHORUS_USE_SDRAM
#if WORDSIZE == 32
int32_t *array;
#elif WORDSIZE == 16
int16_t *array;
#elif WORDSIZE == 12
int16_t *array;
#elif WORDSIZE == 8
int8_t *array;
#elif WORDSIZE == 4
int8_t *array;
#endif
#else
#if WORDSIZE == 32
int32_t array[LENGTH];
#elif WORDSIZE == 16
int16_t array[LENGTH];
#elif WORDSIZE == 12
int16_t array[LENGTH];
#elif WORDSIZE == 8
int8_t array[LENGTH];
#elif WORDSIZE == 4
int8_t array[LENGTH];
#endif
#endif

int32_t nvoices;
int32_t old_nvoices;
int32_t voice_vol;
int32_t time[attr_maxvoices];
int32_t lfo_prev[attr_maxvoices];
int32_t lfo_step[attr_maxvoices];
int32_t lfo_i[attr_maxvoices];
uint32_t lfo_phase[attr_maxvoices];
uint32_t writepos;

Init

#ifdef CHORUS_USE_SDRAM
#if WORDSIZE == 32
static int32_t _array[attr_poly][LENGTH] __attribute__((section(".sdram")));
#elif WORDSIZE == 16
static int16_t _array[attr_poly][LENGTH] __attribute__((section(".sdram")));
#elif WORDSIZE == 12
static int16_t _array[attr_poly][LENGTH] __attribute__((section(".sdram")));
#elif WORDSIZE == 8
static int8_t _array[attr_poly][LENGTH] __attribute__((section(".sdram")));
#elif WORDSIZE == 4
static int8_t _array[attr_poly][LENGTH] __attribute__((section(".sdram")));
#endif
array = &_array[parent->polyIndex][0];
#endif

for (int i = 0; i < LENGTH; ++i) {
  array[i] = 0;
}

for (int v = 0; v < attr_maxvoices; ++v) {
  lfo_phase[v] = 0;
  lfo_prev[v] = 0;
  lfo_step[v] = 0;
  lfo_i[v] = 0;
}

nvoices = 0;
old_nvoices = -1;
voice_vol = (1 << 30);
writepos = 0;

Control Rate

// Voice scaling
int32_t tmp_nvoices = param_voices + inlet_voices;
if (tmp_nvoices != old_nvoices) {
  nvoices = tmp_nvoices <= attr_maxvoices ? tmp_nvoices : attr_maxvoices;
  if (nvoices > 0) {
    voice_vol = (int32_t)((1 << 30) * 1.0f / _VSQRTF(nvoices));
  }
  old_nvoices = nvoices;
}

// Modulation
int32_t spread = 0;
for (int v = 0; v < nvoices; ++v) {
  time[v] = ___SMMLA((param_tspread + inlet_tspread) << 3, spread,
                     param_time + inlet_time);
  int32_t lfo_freq = ___SMMLA((param_fspread + inlet_fspread) << 3, spread,
                              param_lfofreq + param_lfofreq);
  spread += (1 << 27); // 0, 16, 32, 48, shifted for scaling in ___SMMUL
  int32_t lfo_out;

  MTOFEXTENDED(lfo_freq, lfo_freq);
  lfo_phase[v] += lfo_freq >> 2;
  SINE2TINTERP(lfo_phase[v], lfo_out)
  lfo_out = ___SMMUL((param_lfoamt + inlet_lfoamt) >> 1, lfo_out);

  // LFO smoothing
  lfo_step[v] = (lfo_out - lfo_prev[v]) >> 4;
  lfo_i[v] = lfo_prev[v];
  lfo_prev[v] = lfo_out;
}

// Delay line write
for (int buffer_index = 0; buffer_index < BUFSIZE; ++buffer_index) {
  // Delay line write
  writepos = (writepos + 1) & LENGTHMASK;

#if WORDSIZE == 32
  array[writepos] = __SSAT(inlet_in[buffer_index], 28);
#elif WORDSIZE == 16
  array[writepos] = __SSAT(inlet_in[buffer_index] >> 12, 16);
#elif WORDSIZE == 12
  array[writepos] = __SSAT(inlet_in[buffer_index] >> 16, 12);
#elif WORDSIZE == 8
  array[writepos] = __SSAT(inlet_in[buffer_index] >> 20, 8);
#elif WORDSIZE == 4
  array[writepos] = __SSAT(inlet_in[buffer_index] >> 24, 4);
#endif
}

// Voices
for (int buffer_index = 0; buffer_index < BUFSIZE; ++buffer_index) {
  int32_t chorus_out = 0;
  for (int v = 0; v < nvoices; ++v) {
    // LFO smoothing
    int32_t lfo_out_interp = lfo_i[v];
    lfo_i[v] += lfo_step[v];

#if INTERPOLATE == 0

    int32_t time_mod;
    uint32_t tmp_d;
    uint32_t tmp_di;
    int32_t tmp_r;

    time_mod = ___SMMUL(time[v], lfo_out_interp);
    tmp_d = __USAT(time[v] + time_mod, 27);
    uint32_t tmp_d_limited = tmp_d >> (27 - LENGTHPOW);
    if (tmp_d_limited > LENGTHMASK - BUFSIZE) {
      tmp_d_limited = LENGTHMASK - BUFSIZE;
      tmp_d = 0;
    }
    tmp_di = writepos - tmp_d_limited - BUFSIZE + buffer_index - 1;

#if WORDSIZE == 32
    tmp_r = array[tmp_di & LENGTHMASK] << 2;
#elif WORDSIZE == 16
    tmp_r = array[tmp_di & LENGTHMASK] << 14;
#elif WORDSIZE == 12
    tmp_r = array[tmp_di & LENGTHMASK] << 18;
#elif WORDSIZE == 8
    tmp_r = array[tmp_di & LENGTHMASK] << 22;
#elif WORDSIZE == 4
    tmp_r = array[tmp_di & LENGTHMASK] << 26;
#endif

    chorus_out = ___SMMLA(voice_vol, tmp_r, chorus_out);

#else

    int32_t time_mod;
    uint32_t tmp_d;
    uint32_t tmp_di;
    uint32_t tmp_w1;
    uint32_t tmp_w2;
    int32_t tmp_a1;
    int32_t tmp_a2;
    int32_t tmp_r;

    time_mod = ___SMMUL(time[v], lfo_out_interp);
    tmp_d = __USAT(time[v] + time_mod, 27);
    uint32_t tmp_d_limited = tmp_d >> (27 - LENGTHPOW);
    if (tmp_d_limited > LENGTHMASK - BUFSIZE) {
      tmp_d_limited = LENGTHMASK - BUFSIZE;
      tmp_d = 0;
    }
    tmp_di = writepos - tmp_d_limited - BUFSIZE + buffer_index - 1;
    tmp_w1 = (tmp_d << (LENGTHPOW + 3)) & 0x3FFFFFFF;
    tmp_w2 = (1 << 30) - tmp_w1;
#if WORDSIZE == 32
    tmp_a1 = array[tmp_di & LENGTHMASK] << 2;
    tmp_a2 = array[(tmp_di + 1) & LENGTHMASK] << 2;
#elif WORDSIZE == 16
    tmp_a1 = array[tmp_di & LENGTHMASK] << 14;
    tmp_a2 = array[(tmp_di + 1) & LENGTHMASK] << 14;
#elif WORDSIZE == 12
    tmp_a1 = array[tmp_di & LENGTHMASK] << 18;
    tmp_a2 = array[(tmp_di + 1) & LENGTHMASK] << 18;
#elif WORDSIZE == 8
    tmp_a1 = array[tmp_di & LENGTHMASK] << 22;
    tmp_a2 = array[(tmp_di + 1) & LENGTHMASK] << 22;
#elif WORDSIZE == 4
    tmp_a1 = array[tmp_di & LENGTHMASK] << 26;
    tmp_a2 = array[(tmp_di + 1) & LENGTHMASK] << 26;
#endif
    tmp_r = ___SMMUL(tmp_a1, tmp_w1);
    tmp_r = ___SMMLA(tmp_a2, tmp_w2, tmp_r);

    chorus_out = ___SMMLA(voice_vol, tmp_r << 2, chorus_out);

#endif
  }
  chorus_out = ___SMMUL((param_mix + inlet_mix) << 3, chorus_out << 2);
  chorus_out = ___SMMLA(((1 << 27) - (param_mix + inlet_mix)) << 3,
                        inlet_in[buffer_index] << 2, chorus_out);
  outlet_out[buffer_index] = __SSAT(chorus_out, 28);
}

Variant: 3

Inlets

frac32buffer.bipolar Input

frac32.positive Delay time

frac32.positive LFO amount

frac32.positive Dry/wet mix

frac32.bipolar Time spread

frac32.bipolar LFO frequency

frac32.bipolar Frequency spread

int32.positive Number of voices, 1..maxvoices, 0 for disable

Outlets

frac32buffer.bipolar Output

Attributes

combo wordsize

combo interp

combo delaysize

spinner maxvoices

Declaration

#define WORDSIZE attr_wordsize
#define INTERPOLATE attr_interp
#define CHORUS_USE_SDRAM

static const uint32_t LENGTHPOW = (attr_delaysize);
static const uint32_t LENGTH = (1 << attr_delaysize);
static const uint32_t LENGTHMASK = ((1 << attr_delaysize) - 1);
static const uint32_t WORDLENGTH = attr_wordsize;

#ifdef CHORUS_USE_SDRAM
#if WORDSIZE == 32
int32_t *array;
#elif WORDSIZE == 16
int16_t *array;
#elif WORDSIZE == 12
int16_t *array;
#elif WORDSIZE == 8
int8_t *array;
#elif WORDSIZE == 4
int8_t *array;
#endif
#else
#if WORDSIZE == 32
int32_t array[LENGTH];
#elif WORDSIZE == 16
int16_t array[LENGTH];
#elif WORDSIZE == 12
int16_t array[LENGTH];
#elif WORDSIZE == 8
int8_t array[LENGTH];
#elif WORDSIZE == 4
int8_t array[LENGTH];
#endif
#endif

int32_t nvoices;
int32_t old_nvoices;
int32_t voice_vol;
int32_t time[attr_maxvoices];
int32_t lfo_prev[attr_maxvoices];
int32_t lfo_step[attr_maxvoices];
int32_t lfo_i[attr_maxvoices];
uint32_t lfo_phase[attr_maxvoices];
uint32_t writepos;

Init

#ifdef CHORUS_USE_SDRAM
#if WORDSIZE == 32
static int32_t _array[attr_poly][LENGTH] __attribute__((section(".sdram")));
#elif WORDSIZE == 16
static int16_t _array[attr_poly][LENGTH] __attribute__((section(".sdram")));
#elif WORDSIZE == 12
static int16_t _array[attr_poly][LENGTH] __attribute__((section(".sdram")));
#elif WORDSIZE == 8
static int8_t _array[attr_poly][LENGTH] __attribute__((section(".sdram")));
#elif WORDSIZE == 4
static int8_t _array[attr_poly][LENGTH] __attribute__((section(".sdram")));
#endif
array = &_array[parent->polyIndex][0];
#endif

for (int i = 0; i < LENGTH; ++i) {
  array[i] = 0;
}

for (int v = 0; v < attr_maxvoices; ++v) {
  lfo_phase[v] = 0;
  lfo_prev[v] = 0;
  lfo_step[v] = 0;
  lfo_i[v] = 0;
}

nvoices = 0;
old_nvoices = -1;
voice_vol = (1 << 30);
writepos = 0;

Control Rate

// Voice scaling
if (inlet_voices != old_nvoices) {
  nvoices = inlet_voices <= attr_maxvoices ? inlet_voices : attr_maxvoices;
  if (nvoices > 0) {
    voice_vol = (int32_t)((1 << 30) * 1.0f / _VSQRTF(nvoices));
  }
  old_nvoices = nvoices;
}

// Modulation
int32_t spread = 0;
for (int v = 0; v < nvoices; ++v) {
  time[v] = ___SMMLA(inlet_tspread << 3, spread, inlet_time);
  int32_t lfo_freq = ___SMMLA(inlet_fspread << 3, spread, inlet_lfofreq);
  spread += (1 << 27); // 0, 16, 32, 48, shifted up 6 bits
  int32_t lfo_out;

  MTOFEXTENDED(lfo_freq, lfo_freq);
  lfo_phase[v] += lfo_freq >> 2;
  SINE2TINTERP(lfo_phase[v], lfo_out)
  lfo_out = ___SMMUL(inlet_lfoamt << 3, lfo_out);

  // LFO smoothing
  lfo_step[v] = (lfo_out - lfo_prev[v]) >> 4;
  lfo_i[v] = lfo_prev[v];
  lfo_prev[v] = lfo_out;
}

// Delay line write
for (int buffer_index = 0; buffer_index < BUFSIZE; ++buffer_index) {
  writepos = (writepos + 1) & LENGTHMASK;

#if WORDSIZE == 32
  array[writepos] = __SSAT(inlet_in[buffer_index], 28);
#elif WORDSIZE == 16
  array[writepos] = __SSAT(inlet_in[buffer_index] >> 12, 16);
#elif WORDSIZE == 12
  array[writepos] = __SSAT(inlet_in[buffer_index] >> 16, 12);
#elif WORDSIZE == 8
  array[writepos] = __SSAT(inlet_in[buffer_index] >> 20, 8);
#elif WORDSIZE == 4
  array[writepos] = __SSAT(inlet_in[buffer_index] >> 24, 4);
#endif
}

// Voices
for (int buffer_index = 0; buffer_index < BUFSIZE; ++buffer_index) {
  int32_t chorus_out = 0;
  for (int v = 0; v < nvoices; ++v) {
    // LFO smoothing
    int32_t lfo_out_interp = lfo_i[v];
    lfo_i[v] += lfo_step[v];

#if INTERPOLATE == 0

    int32_t time_mod;
    uint32_t tmp_d;
    uint32_t tmp_di;
    int32_t tmp_r;

    time_mod = ___SMMUL(time[v], lfo_out_interp);
    tmp_d = __USAT(time[v] + time_mod, 27);
    uint32_t tmp_d_limited = tmp_d >> (27 - LENGTHPOW);
    if (tmp_d_limited > LENGTHMASK - BUFSIZE) {
      tmp_d_limited = LENGTHMASK - BUFSIZE;
      tmp_d = 0;
    }
    tmp_di = writepos - tmp_d_limited - BUFSIZE + buffer_index - 1;

#if WORDSIZE == 32
    tmp_r = array[tmp_di & LENGTHMASK] << 2;
#elif WORDSIZE == 16
    tmp_r = array[tmp_di & LENGTHMASK] << 14;
#elif WORDSIZE == 12
    tmp_r = array[tmp_di & LENGTHMASK] << 18;
#elif WORDSIZE == 8
    tmp_r = array[tmp_di & LENGTHMASK] << 22;
#elif WORDSIZE == 4
    tmp_r = array[tmp_di & LENGTHMASK] << 26;
#endif

    chorus_out = ___SMMLA(voice_vol, tmp_r, chorus_out);

#else

    int32_t time_mod;
    uint32_t tmp_d;
    uint32_t tmp_di;
    uint32_t tmp_w1;
    uint32_t tmp_w2;
    int32_t tmp_a1;
    int32_t tmp_a2;
    int32_t tmp_r;

    time_mod = ___SMMUL(time[v], lfo_out_interp);
    tmp_d = __USAT(time[v] + time_mod, 27);
    uint32_t tmp_d_limited = tmp_d >> (27 - LENGTHPOW);
    if (tmp_d_limited > LENGTHMASK - BUFSIZE) {
      tmp_d_limited = LENGTHMASK - BUFSIZE;
      tmp_d = 0;
    }
    tmp_di = writepos - tmp_d_limited - BUFSIZE + buffer_index - 1;
    tmp_w1 = (tmp_d << (LENGTHPOW + 3)) & 0x3FFFFFFF;
    tmp_w2 = (1 << 30) - tmp_w1;
#if WORDSIZE == 32
    tmp_a1 = array[tmp_di & LENGTHMASK] << 2;
    tmp_a2 = array[(tmp_di + 1) & LENGTHMASK] << 2;
#elif WORDSIZE == 16
    tmp_a1 = array[tmp_di & LENGTHMASK] << 14;
    tmp_a2 = array[(tmp_di + 1) & LENGTHMASK] << 14;
#elif WORDSIZE == 12
    tmp_a1 = array[tmp_di & LENGTHMASK] << 18;
    tmp_a2 = array[(tmp_di + 1) & LENGTHMASK] << 18;
#elif WORDSIZE == 8
    tmp_a1 = array[tmp_di & LENGTHMASK] << 22;
    tmp_a2 = array[(tmp_di + 1) & LENGTHMASK] << 22;
#elif WORDSIZE == 4
    tmp_a1 = array[tmp_di & LENGTHMASK] << 26;
    tmp_a2 = array[(tmp_di + 1) & LENGTHMASK] << 26;
#endif
    tmp_r = ___SMMUL(tmp_a1, tmp_w1);
    tmp_r = ___SMMLA(tmp_a2, tmp_w2, tmp_r);

    chorus_out = ___SMMLA(voice_vol, tmp_r << 2, chorus_out);

#endif
  }
  chorus_out = ___SMMUL(inlet_mix << 3, chorus_out << 2);
  chorus_out = ___SMMLA(((1 << 27) - inlet_mix) << 3,
                        inlet_in[buffer_index] << 2, chorus_out);
  outlet_out[buffer_index] = __SSAT(chorus_out, 28);
}
