dual_multi_wave

Quadrature LFO, 0 and 90 degree outputs, bipolar, multi wave
Author: Are Leistad
License: BSD
Github: drj/lfo/multi_wave.axo

IO Variants: 4

Variant: 1

Inlets

frac32.bipolar Pitch input

Outlets

frac32 0 degrees output

frac32 90 degrees output

Parameters

bool32.tgl Unipolar output

int32 1-5 = tri, sine, saw+, saw-, square

frac32.s.map.lfopitch Pitch

frac32.u.map.ratio LFO square pulse width

frac32.s.map Amplitude

Declaration
uint32_t phase;
int32_t old_reset;

__attribute__((always_inline)) __STATIC_INLINE int32_t ___ABS(int32_t op1) {
  int32_t result;
  __ASM volatile("movs  %0, %1\n"
                 "it    mi\n"
                 "rsbmi %0, %0, #0"
                 : "=r"(result)
                 : "r"(op1));
  return (result);
};
Init
phase = 0;
old_reset = 0;
Control Rate
int32_t pitch;
pitch = param_pitch + inlet_pitch;
if (pitch > 0x07FFFFFF)
  pitch = 0x07FFFFFF;
MTOFEXTENDED(pitch, pitch);
phase += pitch >> 2;

uint32_t phase1 = phase - 0x40000000;

switch (param_wave) {
case 1:
  // Triangle
  outlet_0 = (phase >> 4) - (1 << 27);
  outlet_0 = (1 << 27) - ___ABS(outlet_0);
  outlet_90 = (phase1 >> 4) - (1 << 27);
  outlet_90 = (1 << 27) - ___ABS(outlet_90);
  break;

case 2:
  // Sine
  SINE2TINTERP(phase, outlet_0)
  outlet_0 = (outlet_0 >> 5) + (1 << 26);
  SINE2TINTERP(phase1, outlet_90)
  outlet_90 = (outlet_90 >> 5) + (1 << 26);
  break;

case 3:
  // Saw rising
  outlet_0 = (phase >> 5);
  outlet_90 = (phase1 >> 5);
  break;

case 4:
  // Saw falling
  outlet_0 = (1 << 27) - (phase >> 5);
  outlet_90 = (1 << 27) - (phase1 >> 5);
  break;

case 5:
  // Square
  {
    if ((phase >> 5) > param_pw) {
      outlet_0 = 0;
    } else {
      outlet_0 = (1 << 27) - 1;
    }
    if ((phase1 >> 5) > param_pw) {
      outlet_90 = 0;
    } else {
      outlet_90 = (1 << 27) - 1;
    }
  }
  break;
}

if (!param_unipolar) {
  outlet_0 = (outlet_0 << 1) - (1 << 27);
  outlet_90 = (outlet_90 << 1) - (1 << 27);
}

outlet_0 = ___SMMUL(param_amp << 3, outlet_0 << 2);
outlet_90 = ___SMMUL(param_amp << 3, outlet_90 << 2);

Variant: 2

Inlets

frac32.bipolar Pitch input

frac32.bipolar Phase modulation

frac32.bipolar Pulse width modulation

frac32.bipolar Amplitude modulation

int32.bipolar Waveform, added to wave parameter

bool32.rising Reset phase

Outlets

frac32 0 degrees output

frac32 90 degrees output

Parameters

frac32.s.map.lfopitch Pitch

frac32.u.map.ratio LFO square pulse width

frac32.s.map Amplitude

bool32.tgl Unipolar output

int32 1-5 = tri, sine, saw+, saw-, square

Declaration
uint32_t phase;
int32_t old_reset;

__attribute__((always_inline)) __STATIC_INLINE int32_t ___ABS(int32_t op1) {
  int32_t result;
  __ASM volatile("movs  %0, %1\n"
                 "it    mi\n"
                 "rsbmi %0, %0, #0"
                 : "=r"(result)
                 : "r"(op1));
  return (result);
};
Init
phase = 0;
old_reset = 0;
Control Rate
if (inlet_reset && !old_reset) {
  phase = 0;
} else {
  int32_t pitch;
  pitch = param_pitch + inlet_pitch;
  if (pitch > 0x07FFFFFF)
    pitch = 0x07FFFFFF;
  MTOFEXTENDED(pitch, pitch);
  phase += pitch >> 2;
}
old_reset = inlet_reset;

uint32_t phase1 = phase + (inlet_phase << 3);
uint32_t phase2 = phase1 - 0x40000000;

switch (param_wave + inlet_wave) {
default:
case 1:
  // Triangle
  outlet_0 = (phase1 >> 4) - (1 << 27);
  outlet_0 = (1 << 27) - ___ABS(outlet_0);
  outlet_90 = (phase2 >> 4) - (1 << 27);
  outlet_90 = (1 << 27) - ___ABS(outlet_90);
  break;

case 2:
  // Sine
  SINE2TINTERP(phase1, outlet_0)
  outlet_0 = (outlet_0 >> 5) + (1 << 26);
  SINE2TINTERP(phase2, outlet_90)
  outlet_90 = (outlet_90 >> 5) + (1 << 26);
  break;

case 3:
  // Saw rising
  outlet_0 = (phase1 >> 5);
  outlet_90 = (phase2 >> 5);
  break;

case 4:
  // Saw falling
  outlet_0 = (1 << 27) - (phase1 >> 5);
  outlet_90 = (1 << 27) - (phase2 >> 5);
  break;

case 5:
  // Square
  {
    int32_t pulsewidth = param_pw + inlet_pwm;
    if (pulsewidth > (1 << 27)) {
      pulsewidth = (1 << 27);
    } else if (pulsewidth < 0) {
      pulsewidth = 0;
    }
    if ((phase1 >> 5) > pulsewidth) {
      outlet_0 = 0;
    } else {
      outlet_0 = (1 << 27) - 1;
    }
    if ((phase2 >> 5) > pulsewidth) {
      outlet_90 = 0;
    } else {
      outlet_90 = (1 << 27) - 1;
    }
  }
  break;
}

if (!param_unipolar) {
  outlet_0 = (outlet_0 << 1) - (1 << 27);
  outlet_90 = (outlet_90 << 1) - (1 << 27);
}

outlet_0 = __SSAT(___SMMUL((param_amp + inlet_am) << 3, outlet_0 << 2), 28);
outlet_90 = __SSAT(___SMMUL((param_amp + inlet_am) << 3, outlet_90 << 2), 28);

Variant: 3

Inlets

frac32.bipolar Pitch input

Outlets

frac32 Output

Parameters

frac32.s.map.lfopitch Pitch

frac32.u.map.ratio Pulse width

frac32.s.map Amplitude

bool32.tgl Unipolar output

int32 1-5 = tri, sine, saw+, saw-, square

Declaration
uint32_t phase;
int32_t old_reset;

__attribute__((always_inline)) __STATIC_INLINE int32_t ___ABS(int32_t op1) {
  int32_t result;
  __ASM volatile("movs  %0, %1\n"
                 "it    mi\n"
                 "rsbmi %0, %0, #0"
                 : "=r"(result)
                 : "r"(op1));
  return (result);
};
Init
phase = 0;
old_reset = 0;
Control Rate
int32_t pitch;
pitch = param_pitch + inlet_pitch;
if (pitch > 0x07FFFFFF)
  pitch = 0x07FFFFFF;
MTOFEXTENDED(pitch, pitch);
phase += pitch >> 2;

uint32_t phase1 = phase;

switch (param_wave) {
case 1:
  // Triangle
  outlet_out = (phase1 >> 4) - (1 << 27);
  outlet_out = (1 << 27) - ___ABS(outlet_out);
  break;

case 2:
  // Sine
  SINE2TINTERP(phase1, outlet_out)
  outlet_out = (outlet_out >> 5) + (1 << 26);
  break;

case 3:
  // Saw rising
  outlet_out = (phase1 >> 5);
  break;

case 4:
  // Saw falling
  outlet_out = (1 << 27) - (phase1 >> 5);
  break;

case 5:
  // Square
  {
    if ((phase1 >> 5) > param_pw) {
      outlet_out = 0;
    } else {
      outlet_out = (1 << 27) - 1;
    }
  }
  break;
}

if (!param_unipolar) {
  outlet_out = (outlet_out << 1) - (1 << 27);
}

outlet_out = ___SMMUL(param_amp << 3, outlet_out << 2);

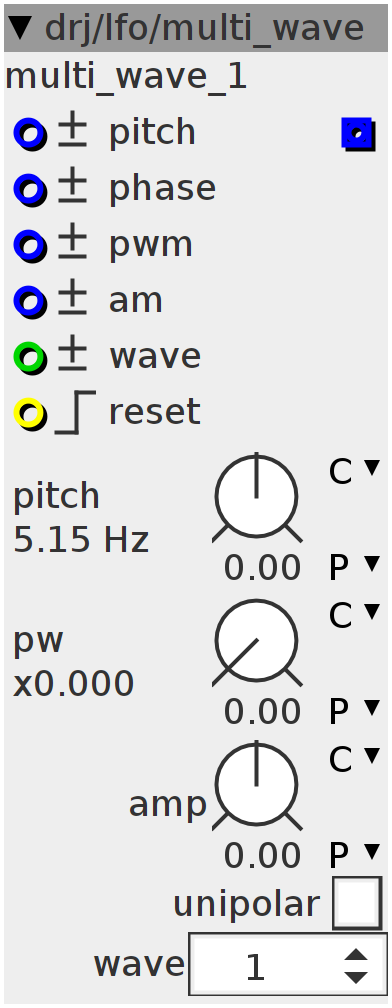

Variant: 4

Inlets

bool32.rising Reset phase

frac32.bipolar Pitch input

frac32.bipolar Phase modulation

frac32.bipolar Pulse width modulation

frac32.bipolar Amplitude modulation

int32.bipolar Waveform, added to wave parameter

Outlets

frac32 Output

Parameters

frac32.s.map.lfopitch Pitch

frac32.u.map.ratio Pulse width

frac32.s.map Amplitude

bool32.tgl Unipolar output

int32 1-5 = tri, sine, saw+, saw-, square

Declaration
uint32_t phase;
int32_t old_reset;

__attribute__((always_inline)) __STATIC_INLINE int32_t ___ABS(int32_t op1) {
  int32_t result;
  __ASM volatile("movs  %0, %1\n"
                 "it    mi\n"
                 "rsbmi %0, %0, #0"
                 : "=r"(result)
                 : "r"(op1));
  return (result);
};
Init
phase = 0;
old_reset = 0;
Control Rate
if (inlet_reset && !old_reset) {
  phase = 0;
} else {
  int32_t pitch;
  pitch = param_pitch + inlet_pitch;
  if (pitch > 0x07FFFFFF)
    pitch = 0x07FFFFFF;
  // pitch = __SSAT( pitch, 28 );
  MTOFEXTENDED(pitch, pitch);
  phase += pitch >> 2;
}
old_reset = inlet_reset;

uint32_t phase1 = phase + (inlet_phase << 3);

switch (param_wave + inlet_wave) {
default:
case 1:
  // Triangle
  outlet_out = (phase1 >> 4) - (1 << 27);
  outlet_out = (1 << 27) - ___ABS(outlet_out);
  break;

case 2:
  // Sine
  SINE2TINTERP(phase1, outlet_out)
  outlet_out = (outlet_out >> 5) + (1 << 26);
  break;

case 3:
  // Saw rising
  outlet_out = (phase1 >> 5);
  break;

case 4:
  // Saw falling
  outlet_out = (1 << 27) - (phase1 >> 5);
  break;

case 5:
  // Square
  {
    int32_t pulsewidth = param_pw + inlet_pwm;
    if (pulsewidth > (1 << 27)) {
      pulsewidth = (1 << 27);
    } else if (pulsewidth < 0) {
      pulsewidth = 0;
    }
    if ((phase1 >> 5) > pulsewidth) {
      outlet_out = 0;
    } else {
      outlet_out = (1 << 27) - 1;
    }
  }
  break;
}

if (!param_unipolar) {
  outlet_out = (outlet_out << 1) - (1 << 27);
}

outlet_out = __SSAT(___SMMUL((param_amp + inlet_am) << 3, outlet_out << 2), 28);
