sum8

Sum 8 values at k-rate
Author: Are Leistad
License: BSD
Github: drj/math/sum.axo

IO Variants: 18

Variant: 1

Inlets

int32.bipolar Input 1

int32.bipolar Input 2

int32.bipolar Input 3

int32.bipolar Input 4

int32.bipolar Input 5

int32.bipolar Input 6

int32.bipolar Input 7

int32.bipolar Input 8

Outlets

int32.bipolar Output

Control Rate
outlet_out = inlet_in1 + inlet_in2 + inlet_in3 + inlet_in4 + inlet_in5 +
             inlet_in6 + inlet_in7 + inlet_in8;

Variant: 2

Inlets

int32.bipolar Input 1

int32.bipolar Input 2

int32.bipolar Input 3

int32.bipolar Input 4

int32.bipolar Input 5

int32.bipolar Input 6

int32.bipolar Input 7

Outlets

int32.bipolar Output

Control Rate
outlet_out = inlet_in1 + inlet_in2 + inlet_in3 + inlet_in4 + inlet_in5 +
             inlet_in6 + inlet_in7;

Variant: 3

Inlets

frac32buffer.bipolar Input 1

frac32buffer.bipolar Input 2

frac32buffer.bipolar Input 3

frac32buffer.bipolar Input 4

frac32buffer.bipolar Input 5

Outlets

frac32buffer.bipolar Output

Audio Rate
outlet_out = inlet_in1 + inlet_in2 + inlet_in3 + inlet_in4 + inlet_in5;

Variant: 4

Inlets

frac32buffer.bipolar Input 1

frac32buffer.bipolar Input 2

frac32buffer.bipolar Input 3

frac32buffer.bipolar Input 4

frac32buffer.bipolar Input 5

frac32buffer.bipolar Input 6

frac32buffer.bipolar Input 7

frac32buffer.bipolar Input 8

Outlets

frac32buffer.bipolar Output

Audio Rate
outlet_out = inlet_in1 + inlet_in2 + inlet_in3 + inlet_in4 + inlet_in5 +
             inlet_in6 + inlet_in7 + inlet_in8;

Variant: 5

Inlets

frac32.bipolar Input 1

frac32.bipolar Input 2

frac32.bipolar Input 3

frac32.bipolar Input 4

frac32.bipolar Input 5

frac32.bipolar Input 6

frac32.bipolar Input 7

Outlets

frac32.bipolar Output

Control Rate
outlet_out = inlet_in1 + inlet_in2 + inlet_in3 + inlet_in4 + inlet_in5 +
             inlet_in6 + inlet_in7;

Variant: 6

Inlets

frac32.bipolar Input 1

frac32.bipolar Input 2

frac32.bipolar Input 3

frac32.bipolar Input 4

frac32.bipolar Input 5

frac32.bipolar Input 6

Outlets

frac32.bipolar Output

Control Rate
outlet_out =
    inlet_in1 + inlet_in2 + inlet_in3 + inlet_in4 + inlet_in5 + inlet_in6;

Variant: 7

Inlets

int32.bipolar Input 1

int32.bipolar Input 2

int32.bipolar Input 3

int32.bipolar Input 4

int32.bipolar Input 5

Outlets

int32.bipolar Output

Control Rate
outlet_out = inlet_in1 + inlet_in2 + inlet_in3 + inlet_in4 + inlet_in5;

Variant: 8

Inlets

frac32.bipolar Input 1

frac32.bipolar Input 2

frac32.bipolar Input 3

frac32.bipolar Input 4

Outlets

frac32.bipolar Output

Control Rate
outlet_out = inlet_in1 + inlet_in2 + inlet_in3 + inlet_in4;

Variant: 9

Inlets

frac32buffer.bipolar Input 1

frac32buffer.bipolar Input 2

frac32buffer.bipolar Input 3

frac32buffer.bipolar Input 4

Outlets

frac32buffer.bipolar Output

Audio Rate
outlet_out = inlet_in1 + inlet_in2 + inlet_in3 + inlet_in4;

Variant: 10

Inlets

frac32.bipolar Input 1

frac32.bipolar Input 2

frac32.bipolar Input 3

frac32.bipolar Input 4

frac32.bipolar Input 5

frac32.bipolar Input 6

frac32.bipolar Input 7

frac32.bipolar Input 8

Outlets

frac32.bipolar Output

Control Rate
outlet_out = inlet_in1 + inlet_in2 + inlet_in3 + inlet_in4 + inlet_in5 +
             inlet_in6 + inlet_in7 + inlet_in8;

Variant: 11

Inlets

int32.bipolar Input 1

int32.bipolar Input 2

int32.bipolar Input 3

int32.bipolar Input 4

Outlets

int32.bipolar Output

Control Rate
outlet_out = inlet_in1 + inlet_in2 + inlet_in3 + inlet_in4;

Variant: 12

Inlets

frac32buffer.bipolar Input 1

frac32buffer.bipolar Input 2

frac32buffer.bipolar Input 3

Outlets

frac32buffer.bipolar Output

Audio Rate
outlet_out = inlet_in1 + inlet_in2 + inlet_in3;

Variant: 13

Inlets

frac32.bipolar Input 1

frac32.bipolar Input 2

frac32.bipolar Input 3

Outlets

frac32.bipolar Output

Control Rate
outlet_out = inlet_in1 + inlet_in2 + inlet_in3;

Variant: 14

Inlets

frac32buffer.bipolar Input 1

frac32buffer.bipolar Input 2

frac32buffer.bipolar Input 3

frac32buffer.bipolar Input 4

frac32buffer.bipolar Input 5

frac32buffer.bipolar Input 6

frac32buffer.bipolar Input 7

Outlets

frac32buffer.bipolar Output

Audio Rate
outlet_out = inlet_in1 + inlet_in2 + inlet_in3 + inlet_in4 + inlet_in5 +
             inlet_in6 + inlet_in7;

Variant: 15

Inlets

frac32buffer.bipolar Input 1

frac32buffer.bipolar Input 2

frac32buffer.bipolar Input 3

frac32buffer.bipolar Input 4

frac32buffer.bipolar Input 5

frac32buffer.bipolar Input 6

Outlets

frac32buffer.bipolar Output

Audio Rate
outlet_out =
    inlet_in1 + inlet_in2 + inlet_in3 + inlet_in4 + inlet_in5 + inlet_in6;

Variant: 16

Inlets

int32.bipolar Input 1

int32.bipolar Input 2

int32.bipolar Input 3

int32.bipolar Input 4

int32.bipolar Input 5

int32.bipolar Input 6

Outlets

int32.bipolar Output

Control Rate
outlet_out =
    inlet_in1 + inlet_in2 + inlet_in3 + inlet_in4 + inlet_in5 + inlet_in6;

Variant: 17

Inlets

frac32.bipolar Input 1

frac32.bipolar Input 2

frac32.bipolar Input 3

frac32.bipolar Input 4

frac32.bipolar Input 5

Outlets

frac32.bipolar Output

Control Rate
outlet_out = inlet_in1 + inlet_in2 + inlet_in3 + inlet_in4 + inlet_in5;

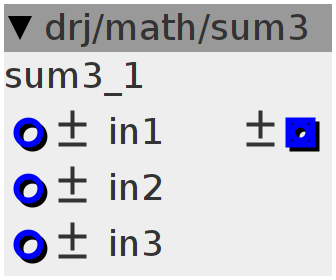

Variant: 18

Inlets

int32.bipolar Input 1

int32.bipolar Input 2

int32.bipolar Input 3

Outlets

int32.bipolar Output

Control Rate
outlet_out = inlet_in1 + inlet_in2 + inlet_in3;
