nrpn_rx_f

$\text{[math]}$

NRPN receiver, bipolar and unipolar fractional outputs

Author: Are Leistad

License: BSD

Github: drj/midi/nrpn_rx.axo

IO Variants: 4

Variant: 1

Inlets

None

Outlets

frac32.bipolar Fractional bipolar value

frac32.positive Fractional unipolar value

Attributes

combo device

spinner channel

spinner nrpn

Declaration

char midi_nrpn_msb;
int32_t midi_nrpn;
char midi_value_msb;
int32_t midi_value_frac;

__attribute__((always_inline)) __STATIC_INLINE int
midi_device_test(midi_device_t dev, uint8_t port, int selected_dev,
                 uint8_t selected_port) {
  if ((selected_dev == MIDI_DEVICE_OMNI) ||
      (selected_dev == dev && selected_port == port))
    return 1;
  return 0;
}

Init

midi_nrpn_msb = 0;
midi_nrpn = 0;
midi_value_msb = 0;
midi_value_frac = 0;

Control Rate

outlet_fb = (midi_value_frac << 1) - (1 << 27);
outlet_fp = midi_value_frac;

Midi Handler

#ifndef MIDI_C_DATA_ENTRY_LSB
#define MIDI_C_DATA_ENTRY_LSB 38
#endif

if (midi_device_test(dev, port, attr_device) == 1 &&
    status == (attr_channel - 1) | MIDI_CONTROL_CHANGE) {
  if (data1 == MIDI_C_NONRPN_MSB) {
    midi_nrpn_msb = data2;
  } else if (data1 == MIDI_C_NONRPN_LSB) {
    midi_nrpn = (midi_nrpn_msb << 7) | data2;
  } else if (data1 == MIDI_C_DATA_ENTRY && midi_nrpn == attr_nrpn) {
    midi_value_msb = data2;
    midi_value_frac = midi_value_msb << 20;
  } else if (data1 == MIDI_C_DATA_ENTRY_LSB && midi_nrpn == attr_nrpn) {
    midi_value_frac = (midi_value_msb << 20) | (data2 << 13);
  }
}

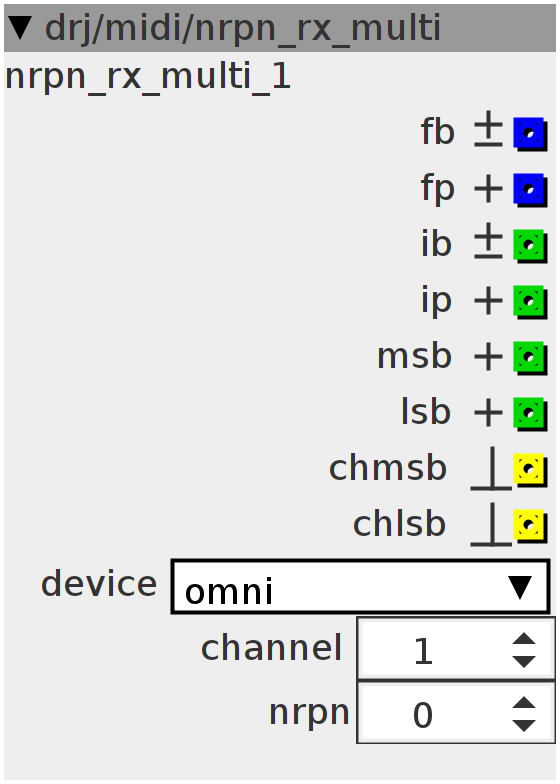

Variant: 2

Inlets

None

Outlets

frac32.bipolar Fractional bipolar value

frac32.positive Fractional unipolar value

int32.bipolar Integer bipolar 14 bit value

int32.positive Integer unipolar 14 bit value

int32.positive Integer 7 bit MSB value

int32.positive Integer 7 bit LSB value

bool32.pulse Pulse on MSB value changes

bool32.pulse Pulse on LSB value changes

Attributes

combo device

spinner channel

spinner nrpn

Declaration

char midi_nrpn_msb;
int32_t midi_nrpn;
char midi_value_msb;
char midi_value_lsb;
int32_t midi_value_int;
int32_t midi_value_frac;
int32_t midi_changed_msb;
int32_t midi_changed_lsb;

__attribute__((always_inline)) __STATIC_INLINE int
midi_device_test(midi_device_t dev, uint8_t port, int selected_dev,
                 uint8_t selected_port) {
  if ((selected_dev == MIDI_DEVICE_OMNI) ||
      (selected_dev == dev && selected_port == port))
    return 1;
  return 0;
}

Init

midi_nrpn_msb = 0;
midi_nrpn = 0;
midi_value_msb = 0;
midi_value_lsb = 0;
midi_value_int = 0;
midi_value_frac = 0;
midi_changed_msb = 0;
midi_changed_lsb = 0;

Control Rate

outlet_fb = (midi_value_frac << 1) - (1 << 27);
outlet_fp = midi_value_frac;
outlet_ib = midi_value_int - (1 << 13);
outlet_ip = midi_value_int;
outlet_msb = midi_value_msb;
outlet_lsb = midi_value_lsb;
outlet_chmsb = midi_changed_msb;
outlet_chlsb = midi_changed_lsb;
midi_changed_msb = 0;
midi_changed_lsb = 0;

Midi Handler

#ifndef MIDI_C_DATA_ENTRY_LSB
#define MIDI_C_DATA_ENTRY_LSB 38
#endif

if (midi_device_test(dev, port, attr_device) == 1 &&
    status == (attr_channel - 1) | MIDI_CONTROL_CHANGE) {
  if (data1 == MIDI_C_NONRPN_MSB) {
    midi_nrpn_msb = data2;
  } else if (data1 == MIDI_C_NONRPN_LSB) {
    midi_nrpn = (midi_nrpn_msb << 7) | data2;
  } else if (data1 == MIDI_C_DATA_ENTRY && midi_nrpn == attr_nrpn) {
    midi_value_msb = data2;
    midi_value_int = midi_value_msb << 7;
    midi_value_frac = midi_value_int << 13;
    midi_changed_msb = 1;
  } else if (data1 == MIDI_C_DATA_ENTRY_LSB && midi_nrpn == attr_nrpn) {
    midi_value_lsb = data2;
    midi_value_int = (midi_value_msb << 7) | midi_value_lsb;
    midi_value_frac = midi_value_int << 13;
    midi_changed_lsb = 1;
  }
}

Variant: 3

Inlets

None

Outlets

int32.bipolar Integer bipolar 14 bit value

int32.positive Integer unipolar 14 bit value

int32.positive Integer 7 bit MSB value

int32.positive Integer 7 bit LSB value

Attributes

combo device

spinner channel

spinner nrpn

Declaration

char midi_nrpn_msb;
int32_t midi_nrpn;
char midi_value_lsb;
char midi_value_msb;
int32_t midi_value_int;

__attribute__((always_inline)) __STATIC_INLINE int
midi_device_test(midi_device_t dev, uint8_t port, int selected_dev,
                 uint8_t selected_port) {
  if ((selected_dev == MIDI_DEVICE_OMNI) ||
      (selected_dev == dev && selected_port == port))
    return 1;
  return 0;
}

Init

midi_nrpn_msb = 0;
midi_nrpn = 0;
midi_value_lsb = 0;
midi_value_msb = 0;
midi_value_int = 0;

Control Rate

outlet_ib = midi_value_int - (1 << 13);
outlet_ip = midi_value_int;
outlet_msb = midi_value_msb;
outlet_lsb = midi_value_lsb;

Midi Handler

#ifndef MIDI_C_DATA_ENTRY_LSB
#define MIDI_C_DATA_ENTRY_LSB 38
#endif

if (midi_device_test(dev, port, attr_device) == 1 &&
    status == (attr_channel - 1) | MIDI_CONTROL_CHANGE) {
  if (data1 == MIDI_C_NONRPN_MSB) {
    midi_nrpn_msb = data2;
  } else if (data1 == MIDI_C_NONRPN_LSB) {
    midi_nrpn = (midi_nrpn_msb << 7) | data2;
  } else if (data1 == MIDI_C_DATA_ENTRY && midi_nrpn == attr_nrpn) {
    midi_value_msb = data2;
    midi_value_int = midi_value_msb << 7;
  } else if (data1 == MIDI_C_DATA_ENTRY_LSB && midi_nrpn == attr_nrpn) {
    midi_value_lsb = data2;
    midi_value_int = (midi_value_msb << 7) | midi_value_lsb;
  }
}

Variant: 4

Inlets

None

Outlets

frac32.positive Fractional unipolar value

int32.bipolar Integer bipolar 14 bit value

int32.positive Integer unipolar 14 bit value

int32.positive Integer 7 bit MSB value

int32.positive Integer 7 bit LSB value

int32.positive Parameter number

bool32.pulse Pulse on MSB value changes

bool32.pulse Pulse on LSB value changes

frac32.bipolar Fractional bipolar value

Attributes

combo device

spinner channel

Declaration

char midi_nrpn_msb;
int32_t midi_nrpn;
char midi_value_msb;
char midi_value_lsb;
int32_t midi_value_int;
int32_t midi_value_frac;
int32_t midi_changed_msb;
int32_t midi_changed_lsb;

__attribute__((always_inline)) __STATIC_INLINE int
midi_device_test(midi_device_t dev, uint8_t port, int selected_dev,
                 uint8_t selected_port) {
  if ((selected_dev == MIDI_DEVICE_OMNI) ||
      (selected_dev == dev && selected_port == port))
    return 1;
  return 0;
}

Init

midi_nrpn_msb = 0;
midi_nrpn = 0;
midi_value_msb = 0;
midi_value_lsb = 0;
midi_value_int = 0;
midi_value_frac = 0;
midi_changed_msb = 0;
midi_changed_lsb = 0;

Control Rate

outlet_fb = (midi_value_frac << 1) - (1 << 27);
outlet_fp = midi_value_frac;
outlet_ib = midi_value_int - (1 << 13);
outlet_ip = midi_value_int;
outlet_msb = midi_value_msb;
outlet_lsb = midi_value_lsb;
outlet_nrpn = midi_nrpn;
outlet_chmsb = midi_changed_msb;
outlet_chlsb = midi_changed_lsb;
midi_changed_msb = 0;
midi_changed_lsb = 0;

Midi Handler

#ifndef MIDI_C_DATA_ENTRY_LSB
#define MIDI_C_DATA_ENTRY_LSB 38
#endif

if (midi_device_test(dev, port, attr_device) == 1 &&
    status == (attr_channel - 1) | MIDI_CONTROL_CHANGE) {
  if (data1 == MIDI_C_NONRPN_MSB) {
    midi_nrpn_msb = data2;
  } else if (data1 == MIDI_C_NONRPN_LSB) {
    midi_nrpn = (midi_nrpn_msb << 7) | data2;
  } else if (data1 == MIDI_C_DATA_ENTRY) {
    midi_value_msb = data2;
    midi_value_int = midi_value_msb << 7;
    midi_value_frac = midi_value_int << 13;
    midi_changed_msb = 1;
  } else if (data1 == MIDI_C_DATA_ENTRY_LSB) {
    midi_value_lsb = data2;
    midi_value_int = (midi_value_msb << 7) | midi_value_lsb;
    midi_value_frac = midi_value_int << 13;
    midi_changed_lsb = 1;
  }
}
