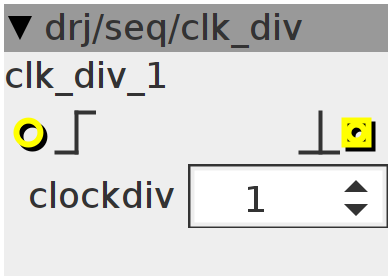

clk_div

$\text{[math]}$

Clock divider

Author: Are Leistad

License: BSD

Github: drj/seq/clk_div.axo

IO Variants: 2

Variant: 1

Inlets

bool32.rising Clock input

Outlets

bool32.pulse Clock output

Parameters

int32 clockdiv

Declaration

uint32_t clock_count;
uint32_t old_clk;

Init

clock_count = 0;
old_clk = 0;

Control Rate

outlet_clk = 0;

if (inlet_clk && !old_clk) {
  clock_count++;
  if (clock_count >= param_clockdiv) {
    clock_count = 0;
    outlet_clk = 1;
  }
}

old_clk = inlet_clk;

Variant: 2

Inlets

bool32.rising Clock input

bool32.rising Reset input

Outlets

bool32.pulse Clock output

Parameters

int32 clockdiv

Declaration

uint32_t clock_count;
uint32_t old_clk;
uint32_t old_r;

Init

clock_count = 0;
old_clk = 0;
old_r = 0;

Control Rate

outlet_clk = 0;

if (inlet_r && !old_r) {
  clock_count = 0;
} else if (inlet_clk && !old_clk) {
  clock_count++;
  if (clock_count >= param_clockdiv) {
    clock_count = 0;
    outlet_clk = 1;
  }
}

old_clk = inlet_clk;
old_r = inlet_r;
