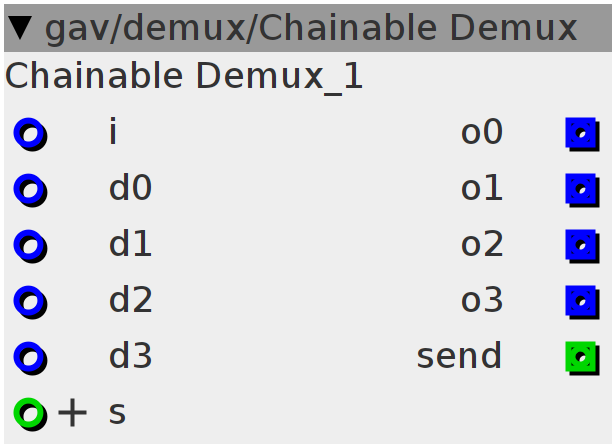

Chainable Demux
Demultiplexer. Chainable for extension. Just connect outlet send to inlet s in the next object.
Inlets
frac32 i
frac32 d0
frac32 d1
frac32 d2
frac32 d3
int32.positive select
Outlets
frac32 o0
frac32 o1
frac32 o2
frac32 o3
int32 send
outlet_send = inlet_s - 4;
switch (inlet_s > 0 ? inlet_s : 0) {
case 0:
outlet_o0 = inlet_i;
outlet_o1 = inlet_d1;
outlet_o2 = inlet_d2;
outlet_o3 = inlet_d3;
break;
case 1:
outlet_o0 = inlet_d0;
outlet_o1 = inlet_i;
outlet_o2 = inlet_d2;
outlet_o3 = inlet_d3;
break;
case 2:
outlet_o0 = inlet_d0;
outlet_o1 = inlet_d1;
outlet_o2 = inlet_i;
outlet_o3 = inlet_d3;
break;
case 3:
outlet_o0 = inlet_d0;
outlet_o1 = inlet_d1;
outlet_o2 = inlet_d2;
outlet_o3 = inlet_i;
break;
default:
outlet_o0 = inlet_d0;
outlet_o1 = inlet_d1;
outlet_o2 = inlet_d2;
outlet_o3 = inlet_d3;
}
