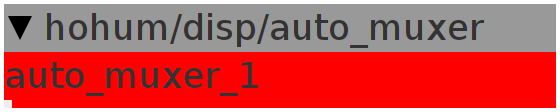

auto_muxer

Author: Berend Klein Haneveld
License: GPL
Github: hohum/disp/auto_muxer.axo

Inlets

frac32 i1

frac32 i2

frac32 i3

frac32 i4

frac32 i5

frac32 i6

frac32 i7

frac32 i8

frac32 i9

frac32 i10

Outlets

int32 out

int32 index

int32 direction

Declaration
#define INLET_COUNT 10

int curr[INLET_COUNT];      // Value from current cycle
int prev[INLET_COUNT];      // Value from previous cycle
int direction[INLET_COUNT]; // 0 (no direction), -1 down, 1 up

// Index of inlet that was chosen for last cycle
int selected_index;
int cycle_index;

int imax(int a, int b) { return a > b ? a : b; }

int imin(int a, int b) { return a < b ? a : b; }
Init
for (int i = 0; i < INLET_COUNT; i++) {
  curr[i] = 0;
  prev[i] = 0;
  direction[i] = 0;
}
Control Rate
// Compare the values from the inlets with the previous values
// >> 18 gives values between 0 and 512
curr[0] = inlet_i1 >> 20;
curr[1] = inlet_i2 >> 20;
curr[2] = inlet_i3 >> 20;
curr[3] = inlet_i4 >> 20;
curr[4] = inlet_i5 >> 20;
curr[5] = inlet_i6 >> 20;
curr[6] = inlet_i7 >> 20;
curr[7] = inlet_i8 >> 20;
curr[8] = inlet_i9 >> 20;
curr[9] = inlet_i10 >> 20;

for (int i = 0; i < INLET_COUNT; i++) {
  // Calculate the change since last cycle
  int diff = curr[i] - prev[i];

  // Check for significant change
  if (abs(diff) > 1) {
    // We have significant change!
    selected_index = i;
    // So now we update the last known direction
    direction[i] = diff;
  }

  // Stabelize readings from the pot by doing the following:
  // When direction is up, always take the max value of last
  // known value and current value
  if (direction[i] > 0) {
    curr[i] = imax(curr[i], prev[i]);
  } else if (direction[i] < 0) {
    // Take the lowest value when the direction is down
    curr[i] = imin(curr[i], prev[i]);
  }

  // Only update the last read value for the current pot
  if (i == selected_index) {
    prev[i] = curr[i];
  }
}

// If the rounded value changes significantly from the last value, then
// that index is sent out and its value
outlet_out = curr[selected_index];
outlet_index = selected_index;
outlet_direction = direction[selected_index];
