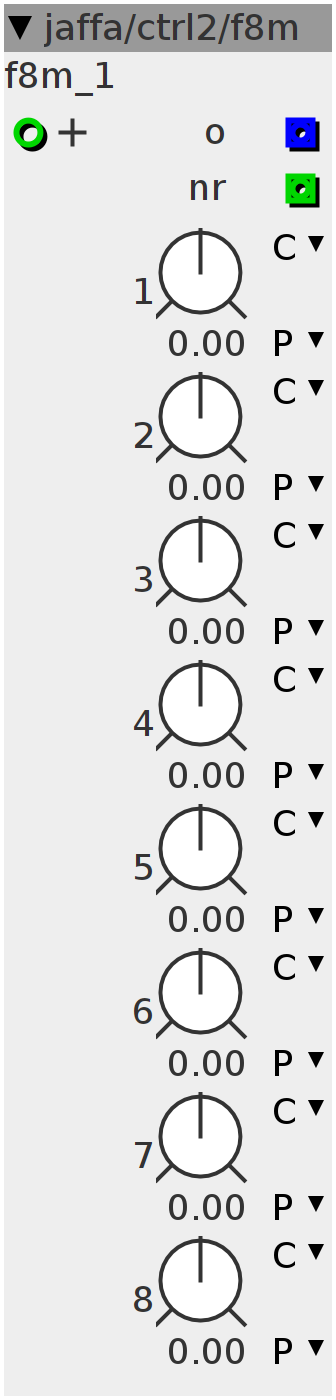

f8m
8 bipolar fractional controls fed into a muxer. Use input to select which one of the 8 fractional values to output. Nr output shows which integer value is currently selected.
Inlets
int32.positive s
Outlets
frac32 o
int32 nr
Parameters
frac32.s.map 1
frac32.s.map 2
frac32.s.map 3
frac32.s.map 4
frac32.s.map 5
frac32.s.map 6
frac32.s.map 7
frac32.s.map 8
switch (inlet_s > 0 ? inlet_s - 1 : 0) {
case 0:
outlet_o = param_1;
break;
case 1:
outlet_o = param_2;
break;
case 2:
outlet_o = param_3;
break;
case 3:
outlet_o = param_4;
break;
case 4:
outlet_o = param_5;
break;
case 5:
outlet_o = param_6;
break;
case 6:
outlet_o = param_7;
break;
case 7:
outlet_o = param_8;
break;
default:
outlet_o = param_8;
break;
}
outlet_nr = inlet_s;
