Akso - Audio DSP Platform

i16m

$\text{[math]}$

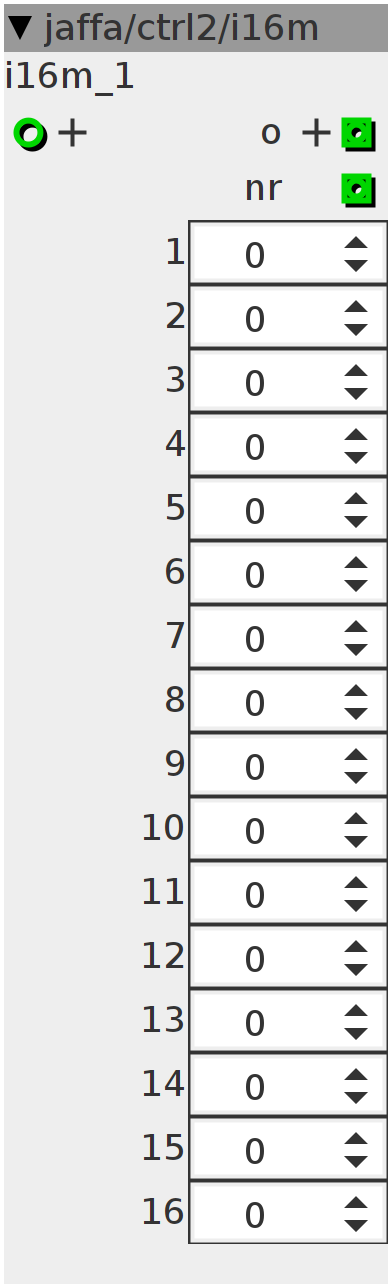

16 positive integer controls fed into a muxer. Use input to select which one of the 16 integer values to output. Nr output shows which integer value is currently selected.

Author: Jaffasplaffa

License: BSD

Github: jaffa/ctrl2/i16m.axo

Inlets

int32.positive s

Outlets

int32.positive o

int32 nr

Parameters

int32 1

int32 2

int32 3

int32 4

int32 5

int32 6

int32 7

int32 8

int32 9

int32 10

int32 11

int32 12

int32 13

int32 14

int32 15

int32 16

Control Rate

switch (inlet_s > 0 ? inlet_s - 1 : 0) {
case 0:
  outlet_o = param_1;
  break;
case 1:
  outlet_o = param_2;
  break;
case 2:
  outlet_o = param_3;
  break;
case 3:
  outlet_o = param_4;
  break;
case 4:
  outlet_o = param_5;
  break;
case 5:
  outlet_o = param_6;
  break;
case 6:
  outlet_o = param_7;
  break;
case 7:
  outlet_o = param_8;
  break;
case 8:
  outlet_o = param_9;
  break;
case 9:
  outlet_o = param_10;
  break;
case 10:
  outlet_o = param_11;
  break;
case 11:
  outlet_o = param_12;
  break;
case 12:
  outlet_o = param_13;
  break;
case 13:
  outlet_o = param_14;
  break;
case 14:
  outlet_o = param_15;
  break;
case 15:
  outlet_o = param_16;
  break;
default:
  outlet_o = param_16;
  break;
}
outlet_nr = inlet_s;
