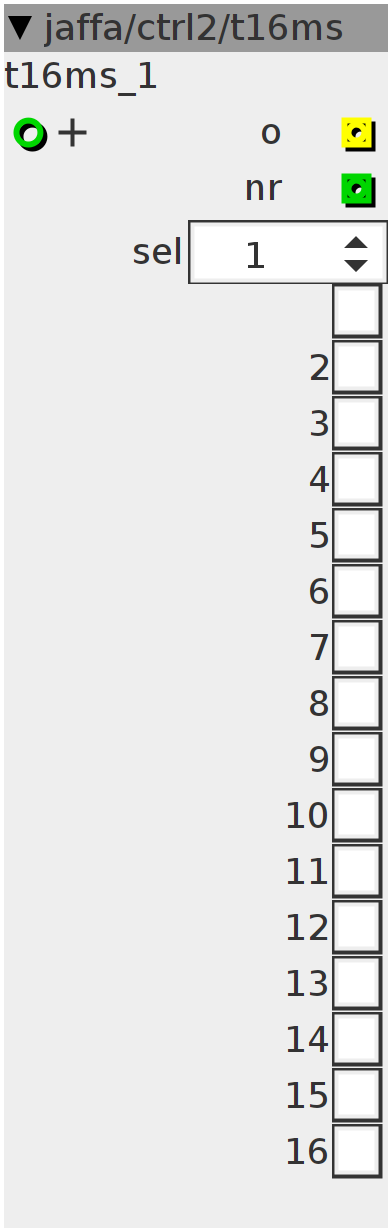

t16ms
16 constant boolean, toggle control fed into a muxer. This one also has a build in selector for the muxer. Use input or selector to select which one of the 16 constant boolean to output. Nr output shows which integer value is currently selected.
Inlets
int32.positive s
Outlets
bool32 output
int32 nr
Parameters
int32 sel
bool32.tgl 1
bool32.tgl 2
bool32.tgl 3
bool32.tgl 4
bool32.tgl 5
bool32.tgl 6
bool32.tgl 7
bool32.tgl 8
bool32.tgl 9
bool32.tgl 10
bool32.tgl 11
bool32.tgl 12
bool32.tgl 13
bool32.tgl 14
bool32.tgl 15
bool32.tgl 16
switch (inlet_s + param_sel > 0 ? inlet_s + param_sel - 1 : 0) {
case 0:
outlet_o = param_1;
break;
case 1:
outlet_o = param_2;
break;
case 2:
outlet_o = param_3;
break;
case 3:
outlet_o = param_4;
break;
case 4:
outlet_o = param_5;
break;
case 5:
outlet_o = param_6;
break;
case 6:
outlet_o = param_7;
break;
case 7:
outlet_o = param_8;
break;
case 8:
outlet_o = param_9;
break;
case 9:
outlet_o = param_10;
break;
case 10:
outlet_o = param_11;
break;
case 11:
outlet_o = param_12;
break;
case 12:
outlet_o = param_13;
break;
case 13:
outlet_o = param_14;
break;
case 14:
outlet_o = param_15;
break;
case 15:
outlet_o = param_16;
break;
default:
outlet_o = param_16;
break;
}
outlet_nr = inlet_s + param_sel;
