t32m

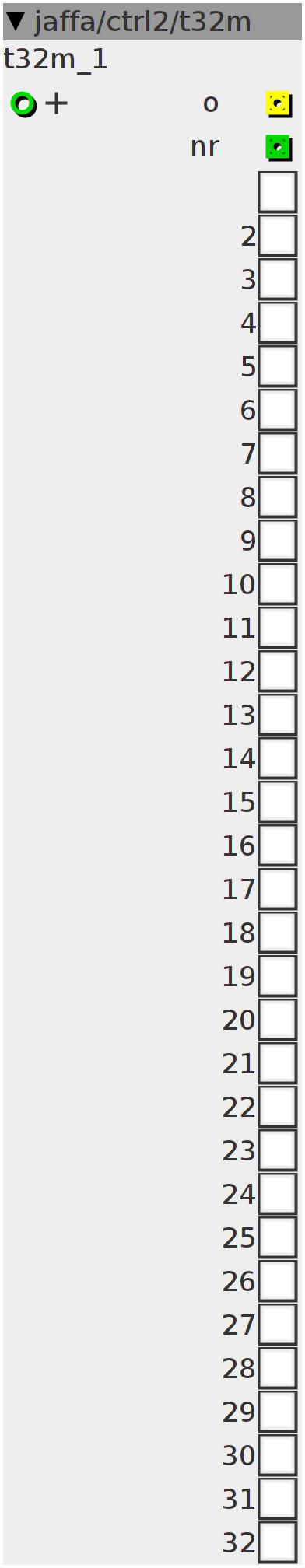

32 constant boolean, toggle control fed into a muxer. This one also has a build in selector for the muxer. Use input to select which one of the 32 constant boolean to output. Nr output shows which integer value is currently selected.
Author: Johannes Taelman
License: BSD
Github: jaffa/ctrl2/t32m.axo

Inlets

int32.positive s

Outlets

bool32 output

int32 nr

Parameters

bool32.tgl 1

bool32.tgl 2

bool32.tgl 3

bool32.tgl 4

bool32.tgl 5

bool32.tgl 6

bool32.tgl 7

bool32.tgl 8

bool32.tgl 9

bool32.tgl 10

bool32.tgl 11

bool32.tgl 12

bool32.tgl 13

bool32.tgl 14

bool32.tgl 15

bool32.tgl 16

bool32.tgl 17

bool32.tgl 18

bool32.tgl 19

bool32.tgl 20

bool32.tgl 21

bool32.tgl 22

bool32.tgl 23

bool32.tgl 24

bool32.tgl 25

bool32.tgl 26

bool32.tgl 27

bool32.tgl 28

bool32.tgl 29

bool32.tgl 30

bool32.tgl 31

bool32.tgl 32

Control Rate
switch (inlet_s > 0 ? inlet_s - 1 : 0) {
case 0:
  outlet_o = param_1;
  break;
case 1:
  outlet_o = param_2;
  break;
case 2:
  outlet_o = param_3;
  break;
case 3:
  outlet_o = param_4;
  break;
case 4:
  outlet_o = param_5;
  break;
case 5:
  outlet_o = param_6;
  break;
case 6:
  outlet_o = param_7;
  break;
case 7:
  outlet_o = param_8;
  break;
case 8:
  outlet_o = param_9;
  break;
case 9:
  outlet_o = param_10;
  break;
case 10:
  outlet_o = param_11;
  break;
case 11:
  outlet_o = param_12;
  break;
case 12:
  outlet_o = param_13;
  break;
case 13:
  outlet_o = param_14;
  break;
case 14:
  outlet_o = param_15;
  break;
case 15:
  outlet_o = param_16;
  break;
case 16:
  outlet_o = param_17;
  break;
case 17:
  outlet_o = param_18;
  break;
case 18:
  outlet_o = param_19;
  break;
case 19:
  outlet_o = param_20;
  break;
case 20:
  outlet_o = param_21;
  break;
case 21:
  outlet_o = param_22;
  break;
case 22:
  outlet_o = param_23;
  break;
case 23:
  outlet_o = param_24;
  break;
case 24:
  outlet_o = param_25;
  break;
case 25:
  outlet_o = param_26;
  break;
case 26:
  outlet_o = param_27;
  break;
case 27:
  outlet_o = param_28;
  break;
case 28:
  outlet_o = param_29;
  break;
case 29:
  outlet_o = param_30;
  break;
case 30:
  outlet_o = param_31;
  break;
case 31:
  outlet_o = param_32;
  break;
default:
  outlet_o = param_32;
  break;
}
outlet_nr = inlet_s;
