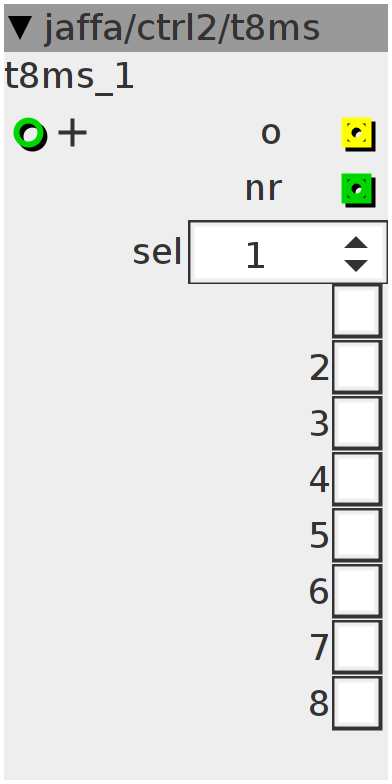

t8ms
8 constant boolean, toggle control fed into a muxer. This one also has a build in selector for the muxer. Use input or selector to select which one of the 8 constant boolean to output. Nr output shows which integer value is currently selected.
Inlets
int32.positive s
Outlets
int32 nr
bool32 output
Parameters
bool32.tgl 1
bool32.tgl 2
bool32.tgl 3
bool32.tgl 4
bool32.tgl 5
bool32.tgl 6
bool32.tgl 7
bool32.tgl 8
int32 sel
switch (inlet_s + param_sel > 0 ? inlet_s + param_sel - 1 : 0) {
case 0:
outlet_o = param_1;
break;
case 1:
outlet_o = param_2;
break;
case 2:
outlet_o = param_3;
break;
case 3:
outlet_o = param_4;
break;
case 4:
outlet_o = param_5;
break;
case 5:
outlet_o = param_6;
break;
case 6:
outlet_o = param_7;
break;
case 7:
outlet_o = param_8;
break;
default:
outlet_o = param_8;
break;
}
outlet_nr = inlet_s + param_sel;
