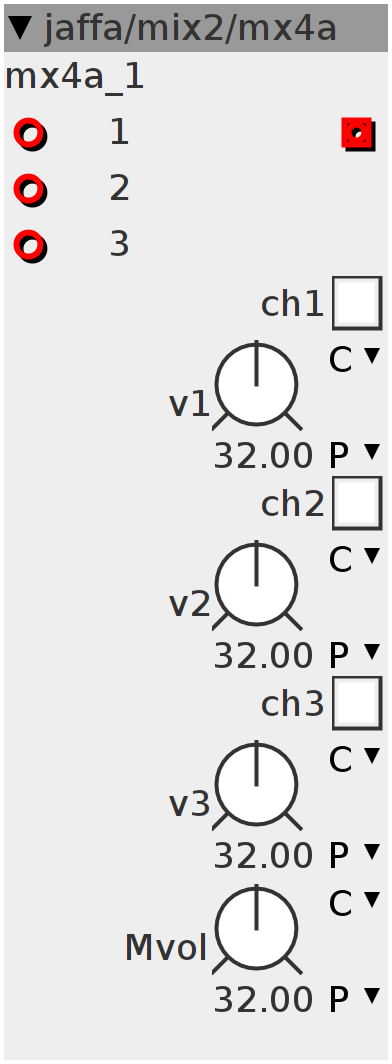

mx4a
3 channel mixer. 2% DSP
Inlets
frac32buffer 1
frac32buffer 2
frac32buffer 3
Outlets
frac32buffer Master out L
Parameters
frac32.u.map Ch1. volume
frac32.u.map Ch2. volume
frac32.u.map Ch3. volume
frac32.u.map Master volume
bool32.tgl ch1
bool32.tgl ch2
bool32.tgl ch3
// Channel 1 //
int32_t CHANNELONE;
if (param_ch1 > 0) {
CHANNELONE = ___SMMUL(inlet_1 << 3, param_v1 << 2);
} else {
CHANNELONE = 0;
}
// Channel 1 route //
int32_t CH1MAIN = (param_ch1 == 1) ? CHANNELONE : 0;
// Channel 2 //
int32_t CHANNELTWO;
if (param_ch2 > 0) {
CHANNELTWO = ___SMMUL(inlet_2 << 3, param_v2 << 2);
} else {
CHANNELTWO = 0;
}
// Channel 2 route //
int32_t CH2MAIN = (param_ch2 == 1) ? CHANNELTWO : 0;
// Channel 3 //
int32_t CHANNELTHREE;
if (param_ch3 > 0) {
CHANNELTHREE = ___SMMUL(inlet_3 << 3, param_v3 << 2);
} else {
CHANNELTHREE = 0;
}
// Channel 3 route //
int32_t CH3MAIN = (param_ch3 == 1) ? CHANNELTHREE : 0;
// Final master out volume on outlet_m before going to master effect //
outlet_m = ___SMMUL((CH1MAIN + CH2MAIN + CH3MAIN) << 3, param_Mvol << 2);
