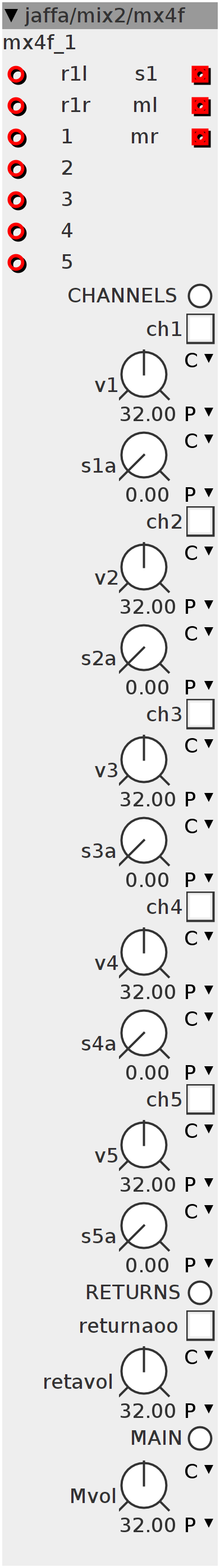

mx4f
5 channel mixer with 1 send with stereo return. All channels are mono, but the output of the object is stereo, so you are able to use a stereo send effect. The send effects are post-channel fader(they are affected by the channel volume). All parameters are described if you hoover the mouse over them, so look there for description. 6% DSP
Inlets
frac32buffer send 1 stereo return L
frac32buffer send 1 stereo return R
frac32buffer 1
frac32buffer 2
frac32buffer 3
frac32buffer 4
frac32buffer 5
Outlets
frac32buffer send 1
frac32buffer Master out L
frac32buffer Master out R
Parameters
bool32.mom CHANNELS
bool32.mom RETURNS
bool32.mom MAIN
bool32.tgl ch1
bool32.tgl ch2
bool32.tgl ch3
bool32.tgl ch4
bool32.tgl ch5
bool32.tgl Returna on/off
frac32.u.map Ch1. volume
frac32.u.map Ch1. senda
frac32.u.map Ch2. volume
frac32.u.map Ch2. senda
frac32.u.map Ch3. volume
frac32.u.map Ch3. senda
frac32.u.map Ch4. volume
frac32.u.map Ch4. senda
frac32.u.map Ch5. volume
frac32.u.map Ch5. senda
frac32.u.map Returna volume
frac32.u.map Master volume
// Channel 1 //
int32_t CHANNELONE;
if (param_ch1 > 0) {
CHANNELONE = ___SMMUL(inlet_1 << 3, param_v1 << 2);
} else {
CHANNELONE = 0;
}
int32_t CHANNELONESENDA = ___SMMUL(CHANNELONE << 3, param_s1a << 2);
// Channel 2 //
int32_t CHANNELTWO;
if (param_ch2 > 0) {
CHANNELTWO = ___SMMUL(inlet_2 << 3, param_v2 << 2);
} else {
CHANNELTWO = 0;
}
int32_t CHANNELTWOSENDA = ___SMMUL(CHANNELTWO << 3, param_s2a << 2);
// Channel 3 //
int32_t CHANNELTHREE;
if (param_ch3 > 0) {
CHANNELTHREE = ___SMMUL(inlet_3 << 3, param_v3 << 2);
} else {
CHANNELTHREE = 0;
}
int32_t CHANNELTHREESENDA = ___SMMUL(CHANNELTHREE << 3, param_s3a << 2);
// Channel 4 //
int32_t CHANNELFOUR;
if (param_ch4 > 0) {
CHANNELFOUR = ___SMMUL(inlet_4 << 3, param_v4 << 2);
} else {
CHANNELFOUR = 0;
}
int32_t CHANNELFOURSENDA = ___SMMUL(CHANNELFOUR << 3, param_s4a << 2);
// Channel 5 //
int32_t CHANNELFIVE;
if (param_ch5 > 0) {
CHANNELFIVE = ___SMMUL(inlet_5 << 3, param_v5 << 2);
} else {
CHANNELFIVE = 0;
}
int32_t CHANNELFIVESENDA = ___SMMUL(CHANNELFIVE << 3, param_s5a << 2);
// Sends //
outlet_s1 = CHANNELONESENDA + CHANNELTWOSENDA + CHANNELTHREESENDA +
CHANNELFOURSENDA + CHANNELFIVESENDA;
// Returns//
int32_t RETURNAL;
int32_t RETURNAR;
if (param_returnaoo) {
RETURNAL = ___SMMUL(inlet_r1l << 3, param_retavol << 2);
RETURNAR = ___SMMUL(inlet_r1r << 3, param_retavol << 2);
}
else {
RETURNAL = 0;
RETURNAR = 0;
}
// Final master out volume on outlet_m before going to master effect //
outlet_ml = ___SMMUL((CHANNELONE + CHANNELTWO + CHANNELTHREE + CHANNELFOUR +
CHANNELFIVE + RETURNAL)
<< 3,
param_Mvol << 2);
outlet_mr = ___SMMUL((CHANNELONE + CHANNELTWO + CHANNELTHREE + CHANNELFOUR +
CHANNELFIVE + RETURNAR)
<< 3,
param_Mvol << 2);
