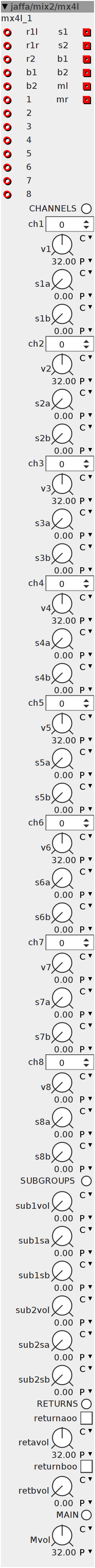

mx4l
8 channel mixer with 2 sends and 2 subgroups. The first send effect has a stereo return, the second one is mono. There is also sends for the subgroups. All channels are mono, but the output of the object is stereo, so you are able to use a stereo send effect. First send is stereo and second is only mono. The send effects are post-channel fader(they are affected by the channel volume). All parameters are described if you hoover the mouse over them, so look there for further descriptions. Also see helpfile on how to set it up. 17% DSP
Inlets
frac32buffer send 1 stereo return L
frac32buffer send 1 stereo return R
frac32buffer send 2 mono return
frac32buffer Subgroup1
frac32buffer Subgroup2
frac32buffer 1
frac32buffer 2
frac32buffer 3
frac32buffer 4
frac32buffer 5
frac32buffer 6
frac32buffer 7
frac32buffer 8
Outlets
frac32buffer send 1
frac32buffer send 2
frac32buffer Subgroup1
frac32buffer Subgroup2
frac32buffer Master out L
frac32buffer Master out R
Parameters
int32 0 = Off 1=Main 2=Subgroup1 3=Subgroup2
int32 0 = Off 1=Main 2=Subgroup1 3=Subgroup2
int32 0 = Off 1=Main 2=Subgroup1 3=Subgroup2
int32 0 = Off 1=Main 2=Subgroup1 3=Subgroup2
int32 0 = Off 1=Main 2=Subgroup1 3=Subgroup2
int32 0 = Off 1=Main 2=Subgroup1 3=Subgroup2
int32 0 = Off 1=Main 2=Subgroup1 3=Subgroup2
int32 ch8
frac32.u.map Ch1. volume
frac32.u.map Ch1. senda
frac32.u.map Ch1. sbnda
frac32.u.map Ch2. volume
frac32.u.map Ch2. senda
frac32.u.map Ch2. sendb
frac32.u.map Ch3. volume
frac32.u.map Ch3. senda
frac32.u.map Ch3. sendb
frac32.u.map Ch4. volume
frac32.u.map Ch4. senda
frac32.u.map Ch4. sendb
frac32.u.map Ch5. volume
frac32.u.map Ch5. senda
frac32.u.map Ch5. senda
frac32.u.map Ch6. volume
frac32.u.map Ch6. senda
frac32.u.map Ch6. sendb
frac32.u.map Ch7. volume
frac32.u.map Ch7. senda
frac32.u.map Ch7. sendb
frac32.u.map v8
frac32.u.map s8a
frac32.u.map s8b
frac32.u.map Sub1 vol
frac32.u.map Sub1 send a
frac32.u.map Sub1 send b
frac32.u.map Sub2 vol
frac32.u.map Sub2 send a
frac32.u.map Sub2 send b
frac32.u.map Returna volume
frac32.u.map Returna volume
frac32.u.map Master volume
bool32.tgl Returna on/off
bool32.tgl Returna on/off
bool32.mom CHANNELS
bool32.mom SUBGROUPS
bool32.mom RETURNS
bool32.mom MAIN
// Channel 1 //
int32_t CHANNELONE;
if (param_ch1 > 0) {
CHANNELONE = ___SMMUL(inlet_1 << 3, param_v1 << 2);
} else {
CHANNELONE = 0;
}
int32_t CHANNELONESENDA = ___SMMUL(CHANNELONE << 3, param_s1a << 2);
int32_t CHANNELONESENDB = ___SMMUL(CHANNELONE << 3, param_s1b << 2);
// Channel 1 route //
int32_t CH1MAIN = (param_ch1 == 1) ? CHANNELONE : 0;
int32_t CH1BUS1 = (param_ch1 == 2) ? CHANNELONE : 0;
int32_t CH1BUS2 = (param_ch1 == 3) ? CHANNELONE : 0;
// Channel 2 //
int32_t CHANNELTWO;
if (param_ch2 > 0) {
CHANNELTWO = ___SMMUL(inlet_2 << 3, param_v2 << 2);
} else {
CHANNELTWO = 0;
}
int32_t CHANNELTWOSENDA = ___SMMUL(CHANNELTWO << 3, param_s2a << 2);
int32_t CHANNELTWOSENDB = ___SMMUL(CHANNELTWO << 3, param_s2b << 2);
// Channel 2 route //
int32_t CH2MAIN = (param_ch2 == 1) ? CHANNELTWO : 0;
int32_t CH2BUS1 = (param_ch2 == 2) ? CHANNELTWO : 0;
int32_t CH2BUS2 = (param_ch2 == 3) ? CHANNELTWO : 0;
// Channel 3 //
int32_t CHANNELTHREE;
if (param_ch3 > 0) {
CHANNELTHREE = ___SMMUL(inlet_3 << 3, param_v3 << 2);
} else {
CHANNELTHREE = 0;
}
int32_t CHANNELTHREESENDA = ___SMMUL(CHANNELTHREE << 3, param_s3a << 2);
int32_t CHANNELTHREESENDB = ___SMMUL(CHANNELTHREE << 3, param_s3b << 2);
// Channel 3 route //
int32_t CH3MAIN = (param_ch3 == 1) ? CHANNELTHREE : 0;
int32_t CH3BUS1 = (param_ch3 == 2) ? CHANNELTHREE : 0;
int32_t CH3BUS2 = (param_ch3 == 3) ? CHANNELTHREE : 0;
// Channel 4 //
int32_t CHANNELFOUR;
if (param_ch4 > 0) {
CHANNELFOUR = ___SMMUL(inlet_4 << 3, param_v4 << 2);
} else {
CHANNELFOUR = 0;
}
int32_t CHANNELFOURSENDA = ___SMMUL(CHANNELFOUR << 3, param_s4a << 2);
int32_t CHANNELFOURSENDB = ___SMMUL(CHANNELFOUR << 3, param_s4b << 2);
// Channel 4 route //
int32_t CH4MAIN = (param_ch4 == 1) ? CHANNELFOUR : 0;
int32_t CH4BUS1 = (param_ch4 == 2) ? CHANNELFOUR : 0;
int32_t CH4BUS2 = (param_ch4 == 3) ? CHANNELFOUR : 0;
// Channel 5 //
int32_t CHANNELFIVE;
if (param_ch5 > 0) {
CHANNELFIVE = ___SMMUL(inlet_5 << 3, param_v5 << 2);
} else {
CHANNELFIVE = 0;
}
int32_t CHANNELFIVESENDA = ___SMMUL(CHANNELFIVE << 3, param_s5a << 2);
int32_t CHANNELFIVESENDB = ___SMMUL(CHANNELFIVE << 3, param_s5b << 2);
// Channel 5 route //
int32_t CH5MAIN = (param_ch5 == 1) ? CHANNELFIVE : 0;
int32_t CH5BUS1 = (param_ch5 == 2) ? CHANNELFIVE : 0;
int32_t CH5BUS2 = (param_ch5 == 3) ? CHANNELFIVE : 0;
// Channel 6 //
int32_t CHANNELSIX;
if (param_ch6 > 0) {
CHANNELSIX = ___SMMUL(inlet_6 << 3, param_v6 << 2);
} else {
CHANNELSIX = 0;
}
int32_t CHANNELSIXSENDA = ___SMMUL(CHANNELSIX << 3, param_s6a << 2);
int32_t CHANNELSIXSENDB = ___SMMUL(CHANNELSIX << 3, param_s6b << 2);
// Channel 6 route //
int32_t CH6MAIN = (param_ch6 == 1) ? CHANNELSIX : 0;
int32_t CH6BUS1 = (param_ch6 == 2) ? CHANNELSIX : 0;
int32_t CH6BUS2 = (param_ch6 == 3) ? CHANNELSIX : 0;
// Channel 7 //
int32_t CHANNELSEVEN;
if (param_ch7 > 0) {
CHANNELSEVEN = ___SMMUL(inlet_7 << 3, param_v7 << 2);
} else {
CHANNELSEVEN = 0;
}
int32_t CHANNELSEVENSENDA = ___SMMUL(CHANNELSEVEN << 3, param_s7a << 2);
int32_t CHANNELSEVENSENDB = ___SMMUL(CHANNELSEVEN << 3, param_s7b << 2);
// Channel 7 route //
int32_t CH7MAIN = (param_ch7 == 1) ? CHANNELSEVEN : 0;
int32_t CH7BUS1 = (param_ch7 == 2) ? CHANNELSEVEN : 0;
int32_t CH7BUS2 = (param_ch7 == 3) ? CHANNELSEVEN : 0;
// Channel 8 //
int32_t CHANNELEIGHT;
if (param_ch8 > 0) {
CHANNELEIGHT = ___SMMUL(inlet_8 << 3, param_v8 << 2);
} else {
CHANNELEIGHT = 0;
}
int32_t CHANNELEIGHTSENDA = ___SMMUL(CHANNELEIGHT << 3, param_s8a << 2);
int32_t CHANNELEIGHTSENDB = ___SMMUL(CHANNELEIGHT << 3, param_s8b << 2);
// Channel 8 route //
int32_t CH8MAIN = (param_ch8 == 1) ? CHANNELEIGHT : 0;
int32_t CH8BUS1 = (param_ch8 == 2) ? CHANNELEIGHT : 0;
int32_t CH8BUS2 = (param_ch8 == 3) ? CHANNELEIGHT : 0;
// Sends for subgroups //
int32_t SUB1SENDA = ___SMMUL(inlet_b1 << 3, param_sub1sa << 2);
int32_t SUB1SENDB = ___SMMUL(inlet_b1 << 3, param_sub1sb << 2);
int32_t SUB2SENDA = ___SMMUL(inlet_b2 << 3, param_sub2sa << 2);
int32_t SUB2SENDB = ___SMMUL(inlet_b2 << 3, param_sub2sb << 2);
// Sends //
outlet_s1 = CHANNELONESENDA + CHANNELTWOSENDA + CHANNELTHREESENDA +
CHANNELFOURSENDA + CHANNELFIVESENDA + CHANNELSIXSENDA +
CHANNELSEVENSENDA + CHANNELEIGHTSENDA + SUB1SENDA + SUB2SENDA;
outlet_s2 = CHANNELONESENDB + CHANNELTWOSENDB + CHANNELTHREESENDB +
CHANNELFOURSENDB + CHANNELFIVESENDB + CHANNELSIXSENDB +
CHANNELSEVENSENDB + CHANNELEIGHTSENDB + SUB1SENDB + SUB2SENDB;
// Returns//
int32_t RETURNAL;
int32_t RETURNAR;
if (param_returnaoo) {
RETURNAL = ___SMMUL(inlet_r1l << 3, param_retavol << 2);
RETURNAR = ___SMMUL(inlet_r1r << 3, param_retavol << 2);
}
else {
RETURNAL = 0;
RETURNAR = 0;
}
int32_t RETURNB;
if (param_returnboo) {
RETURNB = ___SMMUL(inlet_r2 << 3, param_retbvol << 2);
} else {
RETURNB = 0;
}
// Busses - //
outlet_b1 = ___SMMUL((CH1BUS1 + CH2BUS1 + CH3BUS1 + CH4BUS1 + CH5BUS1 +
CH6BUS1 + CH7BUS1 + CH8BUS1)
<< 3,
param_sub1vol << 2);
outlet_b2 = ___SMMUL((CH1BUS2 + CH2BUS2 + CH3BUS2 + CH4BUS2 + CH5BUS2 +
CH6BUS2 + CH7BUS2 + CH8BUS2)
<< 3,
param_sub2vol << 2);
// Master //
outlet_ml =
___SMMUL((CH1MAIN + CH2MAIN + CH3MAIN + CH4MAIN + CH5MAIN + CH6MAIN +
CH7MAIN + CH8MAIN + RETURNAL + RETURNB + inlet_b1 + inlet_b2)
<< 3,
param_Mvol << 2);
outlet_mr =
___SMMUL((CH1MAIN + CH2MAIN + CH3MAIN + CH4MAIN + CH5MAIN + CH6MAIN +
CH7MAIN + CH8MAIN + RETURNAR + RETURNB + inlet_b1 + inlet_b2)
<< 3,
param_Mvol << 2);
