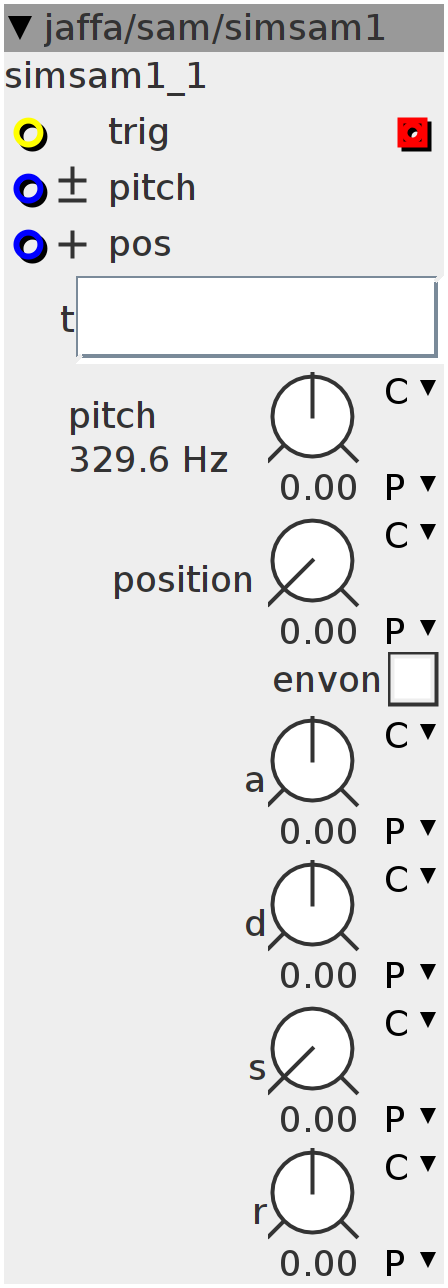

simsam1

Simple sampler with an ADSR envelope.
Author: Jaffasplaffa
License: BSD
Github: jaffa/sam/simsam1.axo

Inlets

bool32 trig

frac32.bipolar pitch modulation

frac32.positive start position in table

Outlets

frac32buffer wave

Parameters

frac32.u.map position

frac32.u.map s

bool32.tgl envon

frac32.s.map a

frac32.s.map d

frac32.s.map r

frac32.s.map.pitch pitch

Attributes

objref t

Declaration
// Table/Play //
int pstart;
int pstop;
uint64_t pos;
int32_t TABLE;

// ADSR //
int32_t prev;
int32_t step;

int8_t stage;
int ntrig;
int32_t val;
int32_t Loopval;
Init
// Table/Play //
pos = 0;
pstart = 0;
pstop = 1;

// ADSR //
stage = 0;
ntrig = 0;
val = 0;
Control Rate
// Table/Play //
if ((inlet_trig > 0) && !pstart) {
  pstart = 1;
  pstop = 0;
  uint32_t asat = __USAT(inlet_pos + param_position, 27);
  pos = ((uint64_t)(asat >> (27 - attr_t.LENGTHPOW))) << 32;
} else if (!(inlet_trig > 0)) {
  pstart = 0;
}
if ((0) && !pstop) {
  pstop = 1;
  pstart = 0;
}
uint32_t f0;
MTOFEXTENDED(inlet_pitch + 0xFEC747D4 + param_pitch, f0);

// ADSR //
// vca
step = (Loopval - prev) >> 4;
int32_t i = prev;
prev = Loopval;

// env
if ((inlet_trig > 0) && !ntrig) {
  stage = 1;
  ntrig = 1;
}
if (!(inlet_trig > 0) && ntrig) {
  stage = 0;
  ntrig = 0;
}
if (stage == 0) {
  int32_t r1;
  int32_t r2;
  MTOF(-param_r, r1);
  r1 = 0x7FFFFFFF - (r1 >> 2);
  val = ___SMMUL(val, r1) << 1;
} else if (stage == 1) {
  int32_t a;
  MTOF(-param_a, a);
  a = a >> 2;
  val = val + a;
  if (val < 0) {
    val = 0x7FFFFFFF;
    stage = 2;
  }
} else if (stage == 2) {
  int32_t s = __USAT(param_s, 27);
  int32_t d;
  MTOF(-param_d, d);
  d = 0x7FFFFFFF - (d >> 2);
  val = (s << 4) + (___SMMUL(val - (s << 4), d) << 1);
}
Loopval = val >> 4;
Audio Rate
if (!pstop) {
  if ((pos >> 32) < attr_t.LENGTH) {
    uint32_t r = ___SMMUL(attr_t.array[pos >> 32] << attr_t.GAIN,
                          INT32_MAX - (((uint32_t)pos) >> 1));
    r = ___SMMLA(attr_t.array[(pos >> 32) + 1] << attr_t.GAIN,
                 (((uint32_t)pos) >> 1), r);
    TABLE = r;
    pos += ((uint64_t)f0) << 8;
  } else
    TABLE = 0;
} else
  TABLE = 0;

// ADSR //
if (param_envon) {

  outlet_out = ___SMMUL(TABLE, i) << 5;
  i += step;
} else {
  outlet_out = TABLE;
}
