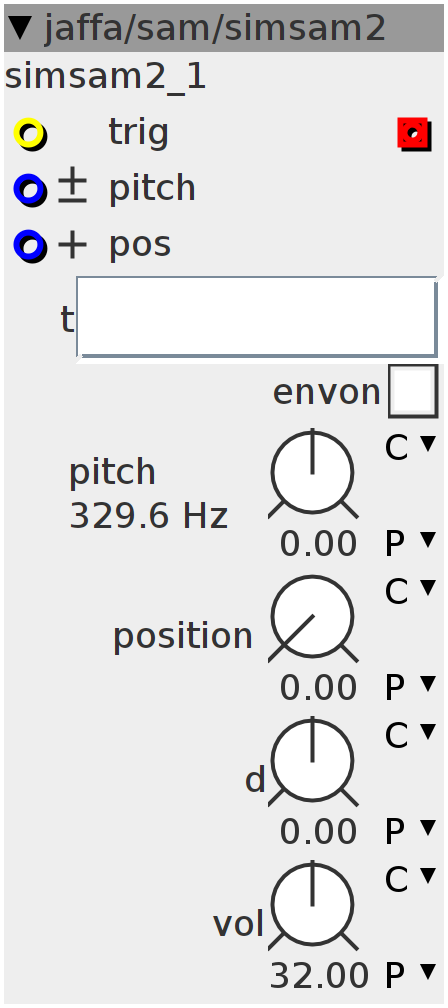

simsam2

Simple sampler with pitch, position, decay envelope and volume.
Author: Jaffasplaffa
License: BSD
Github: jaffa/sam/simsam2.axo

Inlets

bool32 trig

frac32.bipolar pitch modulation

frac32.positive start position in table

Outlets

frac32buffer wave

Parameters

frac32.s.map.pitch Set pitch

frac32.u.map Position

frac32.u.map Volume Unity=32

frac32.s.map Decay length

bool32.tgl Decay envelope on

Attributes

objref t

Declaration
// Table/Play //
int pstart;
int pstop;
uint64_t pos;

// Decay envelope //
int32_t prev;
int32_t step;

int32_t val;
int ntrig;
Init
// Table/Play //
pos = 0;
pstart = 0;
pstop = 1;

// Decay envelope //
val = 0;
ntrig = 0;
Control Rate
// Table/Play //
if ((inlet_trig > 0) && !pstart) {
  pstart = 1;
  pstop = 0;
  uint32_t asat = __USAT(inlet_pos + param_position, 27);
  pos = ((uint64_t)(asat >> (27 - attr_t.LENGTHPOW))) << 32;
} else if (!(inlet_trig > 0)) {
  pstart = 0;
}
if ((0) && !pstop) {
  pstop = 1;
  pstart = 0;
}
uint32_t f0;
MTOFEXTENDED(inlet_pitch + 0xFEC747D4 + param_pitch, f0);

// Vca //
step = (val - prev) >> 4;
int32_t i = prev;
prev = val;

// Env //
if ((inlet_trig > 0) && !ntrig) {
  val = 1 << 27;
  ntrig = 1;
} else {
  if (!(inlet_trig > 0))
    ntrig = 0;
  int32_t in = -param_d;
  int32_t c;
  MTOFEXTENDED(in, c);
  c = 0x7FFFFFFF - (c >> 2);
  val = ___SMMUL(val, c) << 1;
}
Audio Rate
int32_t table;
if (!pstop) {
  if ((pos >> 32) < attr_t.LENGTH) {
    uint32_t r = ___SMMUL(attr_t.array[pos >> 32] << attr_t.GAIN,
                          INT32_MAX - (((uint32_t)pos) >> 1));
    r = ___SMMLA(attr_t.array[(pos >> 32) + 1] << attr_t.GAIN,
                 (((uint32_t)pos) >> 1), r);
    table = r;
    pos += ((uint64_t)f0) << 8;
  } else
    table = 0;
} else
  table = 0;

// Env on //

int32_t envelopeon;
if (param_envon) {

  envelopeon = ___SMMUL(table, i) << 5;
  i += step;
} else {
  envelopeon = table;
};

outlet_out = ___SMMUL(envelopeon << 3, param_vol << 3);
