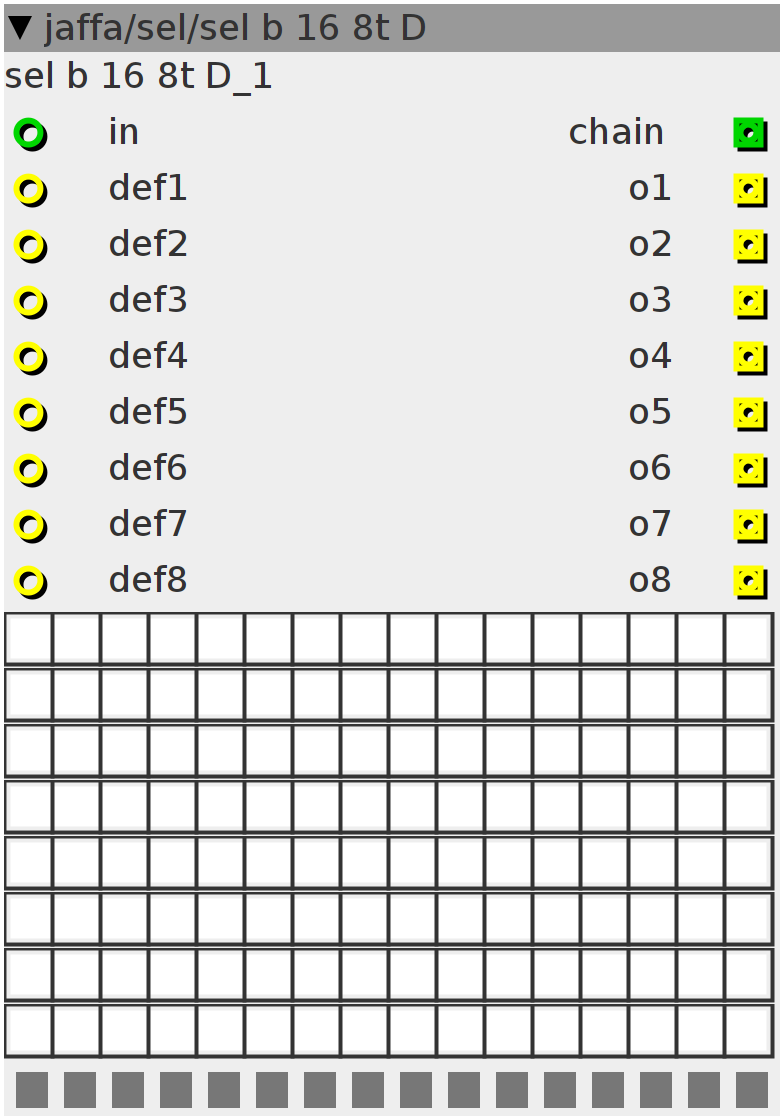

sel b 16 8t D
select one out of 16 booleans, chainable, 8 tracks
Inlets
int32 in
bool32 default value channel 1
bool32 default value channel 2
bool32 default value channel 3
bool32 default value channel 4
bool32 default value channel 5
bool32 default value channel 6
bool32 default value channel 7
bool32 default value channel 8
Outlets
bool32 output channel 1
bool32 output channel 2
bool32 output channel 3
bool32 output channel 4
bool32 output channel 5
bool32 output channel 6
bool32 output channel 7
bool32 output channel 8
int32 chain out (in-16)
Parameters
bin16 p1
bin16 p2
bin16 p3
bin16 p4
bin16 p5
bin16 p6
bin16 p7
bin16 p8
Displays
int32.bar16 v
disp_v = inlet_in;
if ((inlet_in >= 0) && (inlet_in < 16)) {
outlet_o1 = param_p1 & (1 << inlet_in);
outlet_o2 = param_p2 & (1 << inlet_in);
outlet_o3 = param_p3 & (1 << inlet_in);
outlet_o4 = param_p4 & (1 << inlet_in);
outlet_o5 = param_p5 & (1 << inlet_in);
outlet_o6 = param_p6 & (1 << inlet_in);
outlet_o7 = param_p7 & (1 << inlet_in);
outlet_o8 = param_p8 & (1 << inlet_in);
} else {
outlet_o1 = inlet_def1;
outlet_o2 = inlet_def2;
outlet_o3 = inlet_def3;
outlet_o4 = inlet_def4;
outlet_o5 = inlet_def5;
outlet_o6 = inlet_def6;
outlet_o7 = inlet_def7;
outlet_o8 = inlet_def8;
}
outlet_chain = inlet_in - 16;
