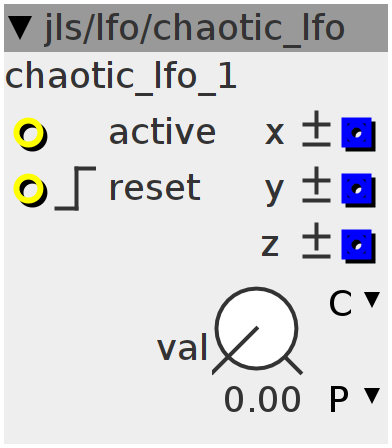

chaotic_lfo

Simple chaotic lfo - parameter "val" is range from oscillation to chaos
Author: JLS
License: BSD
Github: jls/lfo/chaotic_lfo.axo

Inlets

bool32 active

bool32.rising reset

Outlets

frac32.bipolar axis x

frac32.bipolar axis y

frac32.bipolar axis z

Parameters

frac32.u.map from oscillation to chaos

Declaration
float x;
float tx;
float y;
float ty;
float z;
float tz;
float a;
float dt;
int res;
Init
x = 0.1;
y = 0.1;
z = 0.1;
a = 0;
dt = 0.02;
res = 0;
Audio Rate
if (inlet_active > 0) {

  a = 0.2 + (param_val / 640000000.0);

  tx = -y + (z * z);
  ty = x + a * y;
  tz = x - z;

  x = x + tx * dt;
  y = y + ty * dt;
  z = z + tz * dt;

  outlet_x = (int32_t)((0.5 + x) * (1 << 25));
  outlet_y = (int32_t)((-0.5 + y) * (1 << 25));
  outlet_z = (int32_t)((0.25 + z) * (1 << 25));

}

else {

  outlet_x = 0;
  outlet_y = 0;
  outlet_z = 0;
}

if ((inlet_reset > 0) && !res) {

  res = 1;
  x = 0.1;
  y = 0.1;
  z = 0.1;
  a = 0;

} else if (!(inlet_reset > 0))
  res = 0;
