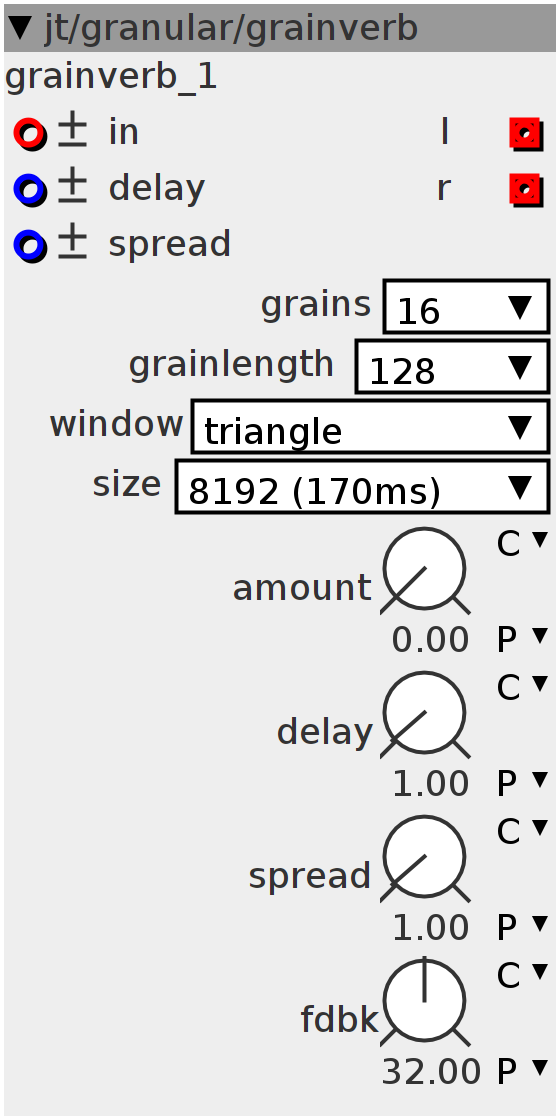

grainverb
granular reverb a granular delay with feedback
Inlets
frac32buffer.bipolar in
frac32.bipolar delay
frac32.bipolar spread
Outlets
frac32buffer l
frac32buffer r
Parameters
frac32.u.map dry/wet balance
frac32.u.map pre-delay time
frac32.u.map amount of random variation in grain delay
frac32.u.map feedback - the sweet spot depends on window shape!
Attributes
combo number of simulatneous grains
combo length of each grain in samples
combo window shape
combo maximum delay in samples
Declaration
static const uint32_t LENGTHPOW = (attr_size);
static const uint32_t LENGTH = (1 << attr_size);
static const uint32_t LENGTHMASK = ((1 << attr_size) - 1);
int16_t *array;
uint32_t writepos;
static const int ngrains = attr_grains;
static const int attenuate_shift =
attr_grains == 128 ? 6 : attr_grains == 64 ? 5 : attr_grains == 32 ? 4 : 3;
static const int grainlength = attr_grainlength;
// even distribution of grain phases
static const int incr1 = (1ull << 32) / ngrains;
static const int incr2 = ((1ull << 32) / (BUFSIZE * 1024)) *
((BUFSIZE * BUFSIZE * 1024 /*ngrains*/) / grainlength);
static const int iNewGrainsPerFrame = (ngrains * BUFSIZE) / grainlength;
// to avoid division by zero warnings in inactive code...
static const int iNewGrainsPerFrame1 =
iNewGrainsPerFrame > 0 ? iNewGrainsPerFrame : 1;
static const int attenuate_fdbk = (int32_t)(
0x7FFFFFFF * 0.58f *
(attr_grains == 128
? 1.0f
: attr_grains == 64
? 0.70710678f
: attr_grains == 32 ? 0.70710678f * 0.70710678f
: 0.70710678f * 0.70710678f * 0.70710678f));
int32_t fdbk[BUFSIZE];
int32_t *offsets[ngrains];
int32_t prev_window[ngrains];
int32_t phase = 0;
int32_t save_FMC_SDCR1;
__attribute__((always_inline)) __STATIC_INLINE int32_t _SMLAWT(int32_t op1,
int32_t op2,
int32_t op3) {
int32_t result;
__ASM volatile("smlawt %0, %1, %2, %3"
: "=r"(result)
: "r"(op1), "r"(op2), "r"(op3));
return (result);
}
__attribute__((always_inline)) __STATIC_INLINE int32_t _SMLAWB(int32_t op1,
int32_t op2,
int32_t op3) {
int32_t result;
__ASM volatile("smlawb %0, %1, %2, %3"
: "=r"(result)
: "r"(op1), "r"(op2), "r"(op3));
return (result);
}
void setupDMACopy(int nwords) {
DMA2D->IFCR |= DMA2D_IFSR_CTEIF;
DMA2D->IFCR |= DMA2D_IFSR_CTCIF;
DMA2D->CR = 0;
DMA2D->FGPFCCR = 0;
DMA2D->OPFCCR = 0;
DMA2D->FGOR = 0;
DMA2D->OOR = 0;
DMA2D->NLR = 1 + (nwords << 16);
}
void initiateDMACopy(volatile int32_t *pDst, volatile int32_t *pSrc) {
DMA2D->FGMAR = (uint32_t)pSrc;
DMA2D->OMAR = (uint32_t)pDst;
DMA2D->CR |= DMA2D_CR_START;
}
void waitDMACopyComplete() {
while (DMA2D->CR & DMA2D_CR_START) {
}
}
int window_triangle(int phase) {
int32_t x = phase;
x = x < 0 ? ~x : x;
return x >> 3;
}
int window_smoothstep(int phase) {
int32_t x = phase;
x = x < 0 ? ~x : x;
uint32_t _3_minus_2x = 0xC0000000 - x;
uint32_t x_squared = ___SMMUL(x, x);
return (_3_minus_2x * (uint64_t)x_squared) >> 32;
}
int window_smoothstep_ext(int phase) {
int32_t x = phase;
x = x < 0 ? ~x : x;
x = __SSAT(x, 31) << 1;
uint32_t _3_minus_2x = 0xC0000000 - x;
uint32_t x_squared = ___SMMUL(x, x);
return (_3_minus_2x * (uint64_t)x_squared) >> 32;
}
int window_hanning_ext(int phase) {
int32_t x = phase;
x = x < 0 ? ~x : x;
x = __SSAT(x, 31) << 1;
int32_t c = sin_q31(x - 0x40000000);
return 0x08000000 + (c >> 4);
}
int window_hanning(int phase) {
int32_t x = phase;
int32_t c = sin_q31(x - 0x40000000);
return 0x08000000 + (c >> 4);
}
int window(int phase) { return window_attr_window(phase); }
int32_t *getNewOffset(int delay, int spread) {
int32_t tpdf = (GenerateRandomNumber() >> (32 - LENGTHPOW)) +
(GenerateRandomNumber() >> (32 - LENGTHPOW));
int off = 2 * __SMMLA(spread, tpdf, delay);
int lim = LENGTH - grainlength;
if (off >= lim) {
off = lim - (off - lim);
}
if (off < 0) {
off = -off;
}
return (int32_t *)&array[(writepos - off) & LENGTHMASK];
}
void simd16_env(int32_t *outp, int32_t a_new, int32_t a_prev,
volatile int32_t *src) {
int32_t ainc = (a_new - a_prev) >> 4;
int32_t a = a_prev;
int i = BUFSIZE / 2;
while (i--) {
// registers:
// *src
// s_s16_s16
// a
// ainc
// i
// *inp
// x1
// x2
int32_t s_s16_s16 = *src++;
int32_t *inp = outp;
int32_t x1 = *inp++;
int32_t x2 = *inp;
x1 = _SMLAWB(a, s_s16_s16, x1);
a += ainc;
x2 = _SMLAWT(a, s_s16_s16, x2);
a += ainc;
*outp++ = x1;
*outp++ = x2;
}
}
Init
int i;
static int16_t _array[attr_poly][LENGTH * 2] __attribute__((section(".sdram")));
array = &_array[parent->polyIndex][0];
writepos = 0;
for (i = 0; i < LENGTH * 2; i++)
array[i] = 0;
// initialize DMA2D engine
RCC->AHB1ENR |= RCC_AHB1ENR_DMA2DEN;
RCC->AHB1RSTR |= RCC_AHB1RSTR_DMA2DRST;
RCC->AHB1RSTR &= ~RCC_AHB1RSTR_DMA2DRST;
for (i = 0; i < ngrains; i++) {
offsets[i] = (int32_t *)&array[0];
prev_window[i] = 0;
}
for (i = 0; i < BUFSIZE; i++) {
fdbk[i] = 0;
}
phase = 0;
// enable SDRam read burst
// FMC_Bank5_6->SDCR[0] |= FMC_SDCR1_RBURST;
save_FMC_SDCR1 = *((uint32_t *)0xA0000140);
*((uint32_t *)0xA0000140) |= 0x00001000;
Control Rate
static int32_t dmabuf1[8] __attribute__((section(".sram2")));
static int32_t dmabuf2[8] __attribute__((section(".sram2")));
int i;
writepos = (writepos + BUFSIZE) & LENGTHMASK;
int16_t *parray = &array[writepos];
for (i = 0; i < BUFSIZE; i++) {
*parray++ = __SSAT((fdbk[i] + inlet_in[i]) >> 12, 16);
}
parray = &array[writepos] + LENGTH;
for (i = 0; i < BUFSIZE; i++) {
*parray++ = __SSAT((fdbk[i] + inlet_in[i]) >> 12, 16);
}
int32_t delay = __USAT(param_delay + inlet_delay, 27) >> (28 - LENGTHPOW);
int32_t spread = __USAT(param_spread + inlet_spread, 27) << 4;
/*
// unfinished
// search for next positive zerocrossing
int16_t *psample = &attr_table.array[off + 128 * BUFSIZE];
int j = 512;
while(j--){
if (*psample++ < 0) break;
}
j = 512;
while(j--){
if (*psample++ >= 0) break;
}
// align to middle of window
*psample -= 64 * BUFSIZE;
*psample -= index * 16;
offsets[(127-index)&0x7F] = (int32_t *)((int32_t)psample & 0xFFFFFFFC);
*/
/*
example:
ngrains=16
grainlength=8*BUFSIZE
iNewGrainsPerFrame=2
frame:0 1 2 3 4 5 6 7 8 9 A B C D E F
grain:0 / - - - - - - \ / - - - - - - \
1 \ / - - - - - - \ / - - - - - -
2 - \ / - - - - - - \ / - - - - -
3 - - \ / - - - - - - \ / - - - -
4 - - - \ / - - - - - - \ / - - -
5 - - - - \ / - - - - - - \ / - -
6 - - - - - \ / - - - - - - \ / -
7 - - - - - - \ / - - - - - - \ /
8 / - - - - - - \ / - - - - - - \
9 \ / - - - - - - \ / - - - - - -
A - \ / - - - - - - \ / - - - - -
B - - \ / - - - - - - \ / - - - -
C - - - \ / - - - - - - \ / - - -
D - - - - \ / - - - - - - \ / - -
E - - - - - \ / - - - - - - \ / -
F - - - - - - \ / - - - - - - \ /
even grains on left output
odd grains on right output
*/
if (iNewGrainsPerFrame) {
int index =
((uint32_t)phase) / ((1ull << 32) / (ngrains / iNewGrainsPerFrame1));
for (i = 0; i < iNewGrainsPerFrame; i++) {
index += ngrains / iNewGrainsPerFrame1;
offsets[(0 - index) & (ngrains - 1)] = getNewOffset(delay, spread);
}
} else {
if (!(phase & (incr1 - 1))) {
int index = ((uint32_t)phase) / ((1ull << 32) / ngrains);
offsets[(0 - index) & (ngrains - 1)] = getNewOffset(delay, spread);
}
}
// every 32bit word contains 2 16bit samples
setupDMACopy(BUFSIZE / 2);
// clear output buffers
for (i = 0; i < BUFSIZE; i++) {
outlet_l[i] = 0;
outlet_r[i] = 0;
}
int iGrain;
int phl = phase;
int32_t **pGrain;
pGrain = &offsets[0];
int32_t *pPrevWindow = &prev_window[0];
int32_t a1, a2;
#if 1 // use DMA
// loop lead-in
waitDMACopyComplete();
initiateDMACopy(&dmabuf2[0], *pGrain);
*pGrain += BUFSIZE / 2;
pGrain++;
// loop
for (iGrain = 1; iGrain < (ngrains - 1); iGrain++) {
// pingpong SDRAM to SRAM using DMA
waitDMACopyComplete();
initiateDMACopy(&dmabuf1[0], *pGrain);
*pGrain += BUFSIZE / 2;
pGrain++;
a1 = *pPrevWindow;
a2 = window(phl + incr2) >> attenuate_shift;
*pPrevWindow++ = a2;
// if (iGrain==1+(param_p1>>20))
simd16_env(&outlet_l[0], a2, a1, &dmabuf2[0]);
phl += incr1;
iGrain++;
waitDMACopyComplete();
initiateDMACopy(&dmabuf2[0], *pGrain);
*pGrain += BUFSIZE / 2;
pGrain++;
a1 = *pPrevWindow;
a2 = window(phl + incr2) >> attenuate_shift;
*pPrevWindow++ = a2;
// if (iGrain==1+(param_p1>>20))
simd16_env(&outlet_r[0], a2, a1, &dmabuf1[0]);
phl += incr1;
}
// loop lead-out
waitDMACopyComplete();
initiateDMACopy(&dmabuf1[0], *pGrain);
*pGrain += BUFSIZE / 2;
pGrain++;
a1 = *pPrevWindow;
a2 = window(phl + incr2) >> attenuate_shift;
*pPrevWindow++ = a2;
simd16_env(&outlet_l[0], a2, a1, &dmabuf2[0]);
phl += incr1;
a1 = *pPrevWindow;
a2 = window(phl + incr2) >> attenuate_shift;
*pPrevWindow++ = a2;
waitDMACopyComplete();
simd16_env(&outlet_r[0], a2, a1, &dmabuf1[0]);
#else // implementation without DMA copy
for (iGrain = 0; iGrain < ngrains; iGrain++) {
a1 = *pPrevWindow;
a2 = window(phl + incr2) >> attenuate_shift;
*pPrevWindow++ = a2;
simd16_env(&outlet_l[0], a2, a1, *pGrain);
*pGrain += BUFSIZE / 2;
pGrain++;
phl += incr1;
iGrain++;
a1 = *pPrevWindow;
a2 = window(phl + incr2) >> attenuate_shift;
*pPrevWindow++ = a2;
simd16_env(&outlet_r[0], a2, a1, *pGrain);
*pGrain += BUFSIZE / 2;
pGrain++;
phl += incr1;
}
#endif
phase += incr2;
int fdbka = ___SMMUL(param_fdbk, attenuate_fdbk) << 5;
for (i = 0; i < BUFSIZE; i++) {
fdbk[i] = __SSAT(___SMMUL(fdbka, outlet_l[i] - outlet_r[i]), 26) << 5;
}
int amt = param_amount << 4;
int amtc = 0x7FFFFFFF - (param_amount << 4);
for (i = 0; i < BUFSIZE; i++) {
outlet_l[i] = ___SMMLA(amt, outlet_l[i], ___SMMUL(amtc, inlet_in[i])) << 1;
outlet_r[i] = ___SMMLA(amt, outlet_r[i], ___SMMUL(amtc, inlet_in[i])) << 1;
}
Dispose
*((uint32_t *)0xA0000140) = save_FMC_SDCR1;
