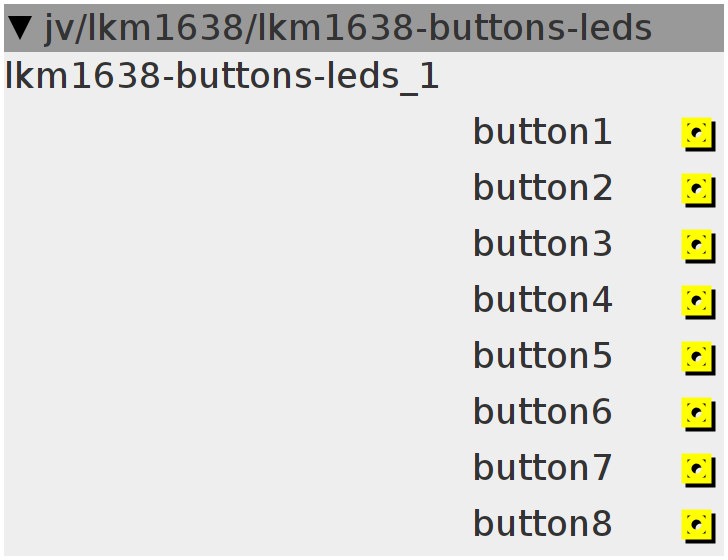

lkm1638-buttons-leds

Outputs which buttons on the LKM1638 board are pressed.
Author: Jan Vantomme
License: BSD
Github: jv/lkm1638/lkm1638 buttons leds.axo

Inlets

None

Outlets

bool32 Button 1 Status

bool32 Button 2 Status

bool32 Button 3 Status

bool32 Button 4 Status

bool32 Button 5 Status

bool32 Button 6 Status

bool32 Button 7 Status

bool32 Button 8 Status

Declaration
uint8_t *txbuf;
uint8_t *rxbuf;

bool btn1;
bool btn2;
bool btn3;
bool btn4;
bool btn5;
bool btn6;
bool btn7;
bool btn8;

// Send a command to the TM1638 Chip
// ------------------------------------

void tm1638_send_command(uint8_t x) {
  SPID1.spi->CR1 |= SPI_CR1_BIDIOE;
  spiSelect(&SPID1);
  txbuf[0] = x;
  spiSend(&SPID1, 1, &txbuf[0]);
  spiUnselect(&SPID1);
}

// Send data to the TM1638 Chip
// ------------------------------------

void tm1638_send_data(uint8_t addr, uint8_t data) {
  SPID1.spi->CR1 |= SPI_CR1_BIDIOE;
  tm1638_send_command(0x44);
  txbuf[0] = addr | 0xc0;
  txbuf[1] = data;
  spiSelect(&SPID1);
  spiSend(&SPID1, 2, txbuf);
  spiUnselect(&SPID1);
}

// Set the color for a single LED
// ------------------------------------
// 0 = OFF
// 1 = GREEN
// 2 = RED

void tm1638_set_led(uint8_t led, uint8_t cols) {
  tm1638_send_data((led << 1) + 1, cols);
}

// SETUP
// ------------------

void setup() {

  static uint8_t _txbuf[8] __attribute__((section(".sram2")));
  static uint8_t _rxbuf[8] __attribute__((section(".sram2")));

  txbuf = _txbuf;
  rxbuf = _rxbuf;
}

// LOOP
// ------------------

void loop() {
  chThdSleepMilliseconds(1);

  txbuf[0] = 0x42;
  txbuf[1] = 0;
  txbuf[2] = 0;
  txbuf[3] = 0;
  txbuf[4] = 0;
  txbuf[5] = 0;
  txbuf[6] = 0;
  txbuf[7] = 0;

  spiSelect(&SPID1);
  spiSend(&SPID1, 1, &txbuf[0]);
  palSetPadMode(GPIOA, 7, PAL_MODE_INPUT); // MOSI -> tristate
  spiReceive(&SPID1, 4, &rxbuf[0]);
  spiUnselect(&SPID1);
  palSetPadMode(GPIOA, 7, PAL_MODE_ALTERNATE(5)); // MOSI -> output

  btn1 = rxbuf[0] & 0x01 ? true : false;
  btn2 = rxbuf[1] & 0x01 ? true : false;
  btn3 = rxbuf[2] & 0x01 ? true : false;
  btn4 = rxbuf[3] & 0x01 ? true : false;
  btn5 = rxbuf[0] & 0x10 ? true : false;
  btn6 = rxbuf[1] & 0x10 ? true : false;
  btn7 = rxbuf[2] & 0x10 ? true : false;
  btn8 = rxbuf[3] & 0x10 ? true : false;

  if (btn1 == true) {
    tm1638_set_led(0, 2);
  } else {
    tm1638_set_led(0, 0);
  }

  if (btn2 == true) {
    tm1638_set_led(1, 2);
  } else {
    tm1638_set_led(1, 0);
  }

  if (btn3 == true) {
    tm1638_set_led(2, 2);
  } else {
    tm1638_set_led(2, 0);
  }

  if (btn4 == true) {
    tm1638_set_led(3, 2);
  } else {
    tm1638_set_led(3, 0);
  }

  if (btn5 == true) {
    tm1638_set_led(4, 2);
  } else {
    tm1638_set_led(4, 0);
  }

  if (btn6 == true) {
    tm1638_set_led(5, 2);
  } else {
    tm1638_set_led(5, 0);
  }

  if (btn7 == true) {
    tm1638_set_led(6, 2);
  } else {
    tm1638_set_led(6, 0);
  }

  if (btn8 == true) {
    tm1638_set_led(7, 2);
  } else {
    tm1638_set_led(7, 0);
  }
}

// ------------------------------------------------------------------------------------------------
// THREADS
// ------------------------------------------------------------------------------------------------

msg_t ThreadX2() {
  setup();
  while (!chThdShouldTerminate()) {
    loop();
    chThdSleepMilliseconds(1);
  }

  chThdExit((msg_t)0);
}

static msg_t ThreadX(void *arg) { ((attr_parent *)arg)->ThreadX2(); }

WORKING_AREA(waThreadX, 1024);

Thread *Thd;
Init
Thd = chThdCreateStatic(waThreadX, sizeof(waThreadX), NORMALPRIO, ThreadX,
                        (void *)this);

btn1 = false;
btn2 = false;
btn3 = false;
btn4 = false;
btn5 = false;
btn6 = false;
btn7 = false;
btn8 = false;
Control Rate
outlet_button1 = btn1;
outlet_button2 = btn2;
outlet_button3 = btn3;
outlet_button4 = btn4;
outlet_button5 = btn5;
outlet_button6 = btn6;
outlet_button7 = btn7;
outlet_button8 = btn8;
Dispose
chThdTerminate(Thd);
chThdWait(Thd);
