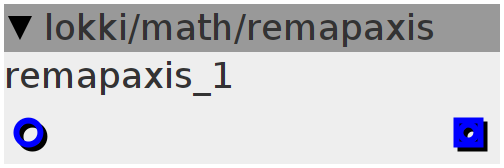

remapaxis

c-thru axis 49 selfless to w-h remap
Author: Simon Iten
License: BSD
Github: lokki/math/remapaxis.axo

Inlets

frac32 input

Outlets

frac32 output

Declaration
uint8_t reMap[128]{
    18,  20,  22, 24, 26, 28, 30, 25, 27,  29,  31,  33, 35, 37,  30,  32,
    34,  36,  38, 40, 42, 37, 39, 41, 43,  45,  47,  49, 42, 44,  46,  48,
    50,  52,  54, 49, 51, 53, 55, 57, 59,  61,  54,  56, 58, 60,  62,  64,
    66,  61,  63, 65, 67, 69, 71, 73, 68,  70,  72,  74, 76, 78,  80,  73,
    75,  77,  79, 81, 83, 85, 80, 82, 84,  86,  88,  90, 92, 85,  87,  89,
    91,  93,  95, 97, 92, 94, 96, 98, 100, 102, 104, 97, 99, 101, 103, 105,
    107, 109, 0,  0,  0,  0,  0,  0,  0,   0,   0,   0,  0,  0,   0,   0,
    0,   0,   0,  0,  0,  0,  0,  0,  0,   0,   0,   0,  0,  0,   0,   0};
Control Rate
outlet_out = (reMap[(inlet_in >> 21) + 63] - 64) << 21;
