Akso - Audio DSP Platform

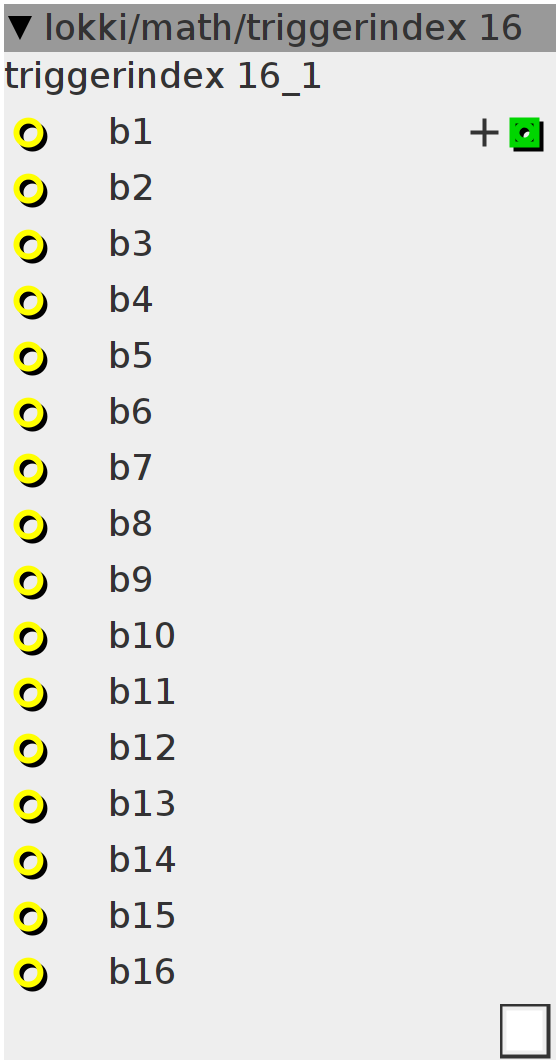

triggerindex 16

$\text{[math]}$

trigger an index according to a connected boolean source, index can be momentary or latching

Author: Simon Iten

License: BSD

Github: lokki/math/triggerindex 16.axo

Inlets

bool32 b1

bool32 b2

bool32 b3

bool32 b4

bool32 b5

bool32 b6

bool32 b7

bool32 b8

bool32 b9

bool32 b10

bool32 b11

bool32 b12

bool32 b13

bool32 b14

bool32 b15

bool32 b16

Outlets

int32.positive output

Parameters

bool32.tgl latch index

Declaration

int index;

Init

index = 0;

Control Rate

if (inlet_b1)
  index = 1;
else if (inlet_b2)
  index = 2;
else if (inlet_b3)
  index = 3;
else if (inlet_b4)
  index = 4;
else if (inlet_b5)
  index = 5;
else if (inlet_b6)
  index = 6;
else if (inlet_b7)
  index = 7;
else if (inlet_b8)
  index = 8;
else if (inlet_b9)
  index = 9;
else if (inlet_b10)
  index = 10;
else if (inlet_b11)
  index = 11;
else if (inlet_b12)
  index = 12;
else if (inlet_b13)
  index = 13;
else if (inlet_b14)
  index = 14;
else if (inlet_b15)
  index = 15;
else if (inlet_b16)
  index = 16;
else if (!param_indexlatch)
  index = 0;
outlet_out = index;
