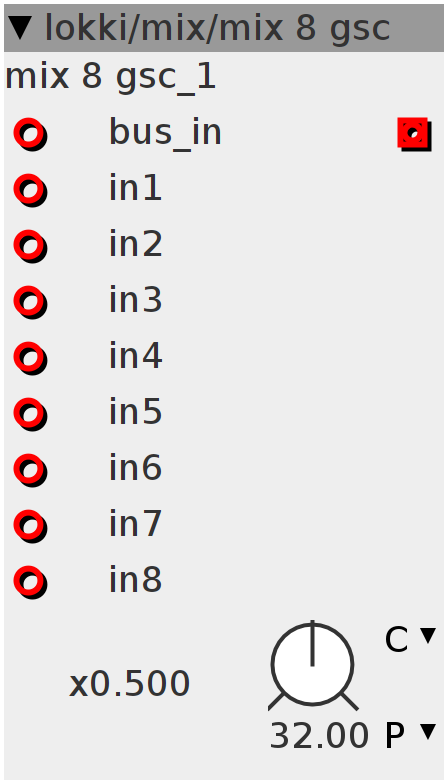

mix 8 gsc

$\text{[math]}$

8 input s-rate mixer, shows gain units, single control

Author: Simon Iten

License: BSD

Github: lokki/mix/mix 8 gsc.axo

Inlets

frac32buffer input with unity gain

frac32buffer input 1

frac32buffer input 2

frac32buffer input 3

frac32buffer input 4

frac32buffer input 5

frac32buffer input 6

frac32buffer input 7

frac32buffer input 8

Outlets

frac32buffer mix out

Parameters

frac32.u.map.gain gain1

Audio Rate

int32_t accum = ___SMMUL(inlet_in1, param_gain1);
accum = ___SMMLA(inlet_in2, param_gain1, accum);
accum = ___SMMLA(inlet_in3, param_gain1, accum);
accum = ___SMMLA(inlet_in4, param_gain1, accum);
accum = ___SMMLA(inlet_in5, param_gain1, accum);
accum = ___SMMLA(inlet_in6, param_gain1, accum);
accum = ___SMMLA(inlet_in7, param_gain1, accum);
accum = ___SMMLA(inlet_in8, param_gain1, accum);
outlet_out = __SSAT(inlet_bus__in + (accum << 1), 28);
