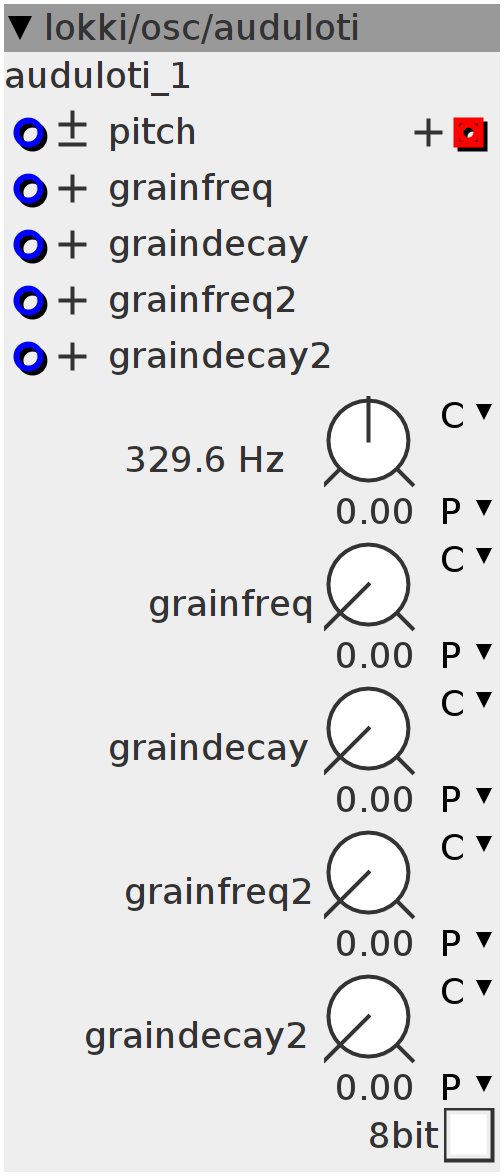

auduloti

auduino port to axoloti, auduloti
Author: Simon Iten
License: BSD
Github: lokki/osc/auduloti.axo

Inlets

frac32.bipolar pitch

frac32.positive grainfreq

frac32.positive graindecay

frac32.positive grainfreq2

frac32.positive graindecay2

Outlets

frac32buffer.positive phasor wave

Parameters

bool32.tgl 8bit

frac32.s.map.pitch pitch

frac32.u.map grainfreq

frac32.u.map graindecay

frac32.u.map grainfreq2

frac32.u.map graindecay2

Declaration
uint16_t syncPhaseAcc;
uint16_t syncPhaseInc;
uint16_t grainPhaseAcc;
uint16_t grainPhaseInc;
uint16_t grainAmp;
uint8_t grainDecay;
uint16_t grain2PhaseAcc;
uint16_t grain2PhaseInc;
uint16_t grain2Amp;
uint8_t grain2Decay;
uint16_t antilogTable[64] = {
    64830, 64132, 63441, 62757, 62081, 61413, 60751, 60097, 59449, 58809, 58176,
    57549, 56929, 56316, 55709, 55109, 54515, 53928, 53347, 52773, 52204, 51642,
    51085, 50535, 49991, 49452, 48920, 48393, 47871, 47356, 46846, 46341, 45842,
    45348, 44859, 44376, 43898, 43425, 42958, 42495, 42037, 41584, 41136, 40693,
    40255, 39821, 39392, 38968, 38548, 38133, 37722, 37316, 36914, 36516, 36123,
    35734, 35349, 34968, 34591, 34219, 33850, 33486, 33125, 32768};
uint16_t mapPhaseInc(uint16_t input) {
  return (antilogTable[input & 0x3f]) >> (input >> 6);
}
Init
syncPhaseInc = 0;
Control Rate
uint32_t freq;
MTOFEXTENDED(param_pitch + inlet_pitch, freq);
syncPhaseInc = freq >> 16;

grainPhaseInc = mapPhaseInc((inlet_grainfreq + param_grainfreq) >> 18) >> 1;
grainDecay = (inlet_graindecay + param_graindecay) >> 21;
grain2PhaseInc = mapPhaseInc((inlet_grainfreq2 + param_grainfreq2) >> 18) >> 1;
grain2Decay = (inlet_graindecay2 + param_graindecay2) >> 21;
Audio Rate
uint8_t value;
uint16_t output;

syncPhaseAcc += syncPhaseInc;
if (syncPhaseAcc < syncPhaseInc) {
  // Time to start the next grain
  grainPhaseAcc = 0;
  grainAmp = 0x7fff;
  grain2PhaseAcc = 0;
  grain2Amp = 0x7fff;
}

// Increment the phase of the grain oscillators
grainPhaseAcc += grainPhaseInc;
grain2PhaseAcc += grain2PhaseInc;

// Convert phase into a triangle wave
value = (grainPhaseAcc >> 7) & 0xff;
if (grainPhaseAcc & 0x8000)
  value = ~value;
// Multiply by current grain amplitude to get sample
output = value * (grainAmp >> 8);

// Repeat for second grain
value = (grain2PhaseAcc >> 7) & 0xff;
if (grain2PhaseAcc & 0x8000)
  value = ~value;
output += value * (grain2Amp >> 8);

// Make the grain amplitudes decay by a factor every sample (exponential decay)
grainAmp -= (grainAmp >> 8) * grainDecay;
grain2Amp -= (grain2Amp >> 8) * grain2Decay;

// Scale output to the available range, clipping if necessary

if (param_8bit) {
  output >>= 9;
  if (output > 255)
    output = 255;
  outlet_phasor = output << 20;
} else {
  if (output > 1 << 17)
    output = 1 << 17;

  outlet_phasor = output << 11;
}
