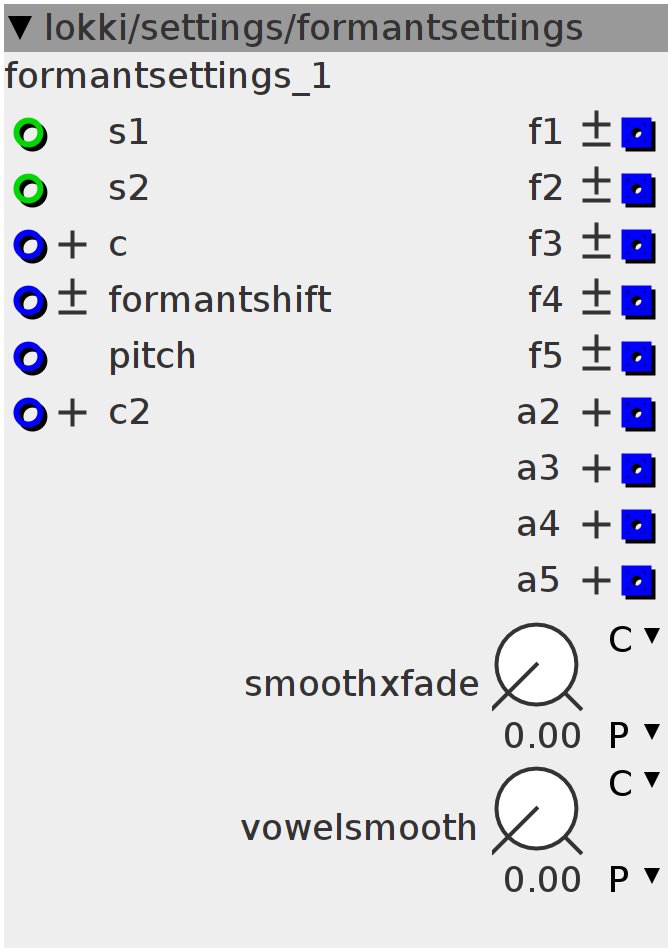

formantsettings
select two of 25 filter settings for five bandpass filters and additional vca stage and crossfade between them. filter settings are the vowel formants f1-f5 for a e i o u in different vocal ranges. 0-4:alto, 5-9:bass, 10-14:countertenor, 15-19:soprano, 20-24:tenor. check the help patch for usage.
Inlets
frac32 formants follow pitch (if xfade is on pitch side)
int32 select vowel1
int32 select vowel2
frac32.positive xfade vowel1 and vowel2
frac32.positive xfade pitch and formantshift
frac32.bipolar shift formants up/down
Outlets
frac32.positive a2
frac32.positive a3
frac32.positive a4
frac32.positive a5
frac32.bipolar f1
frac32.bipolar f2
frac32.bipolar f3
frac32.bipolar f4
frac32.bipolar f5
Parameters
frac32.u.map smooth out xfade input
frac32.u.map smooth vowel change
int32_t val0;
int32_t val1;
int32_t val2;
int32_t val3;
int32_t val4;
int32_t val5;
int32_t val6;
int32_t val7;
int32_t val8;
int32_t valb0;
int32_t valb1;
int32_t valb2;
int32_t valb3;
int32_t valb4;
int32_t valb5;
int32_t valb6;
int32_t valb7;
int32_t valb8;
int32_t xfade;
const int32_t filtersettings[225]{
// values for 5 bandpass filters, formant 1 to 5,
// a e i o u, for alto, bass, countertenor, soprano, tenor.
32191283, 7025375, 2177305, 11301677, -513312, 21746417, 7025375,
-10038857, 7025375, 2177305, 25206718, 10485760, -7244675, 9651093,
4194849, 32191283, 2177305, -7244675, 11301677, -513312, 24652441,
7025375, -4650246, 7025375, 2177305, // filter 1
45367060, 57357107, 59558068, 32191283, 27343087, 41716757, 57807994,
60610628, 29847925, 21746417, 44407403, 61633409, 62628089, 33087605,
23517881, 45367060, 65458615, 67915009, 32191283, 27343087, 43087036,
59558068, 63018578, 32191283, 21746417, // filter2
77674735, 76354368, 76354368, 78061659, 73993184, 69734917, 72078065,
74984089, 72078065, 72078065, 77020633, 76354368, 78948755, 76354368,
77020633, 78948755, 77674735, 79569512, 78061659, 76354368, 75675729,
74984089, 77674735, 74984089, 76354368, // filter3
85776452, 83640084, 87793913, 85776452, 85776452, 72826748, 77674735,
80779778, 74984089, 76016726, 80179573, 80179573, 84185972, 80179573,
80179573, 89705257, 86799233, 89705257, 88762168, 88762168, 78948755,
82522931, 83085806, 77674735, 78948755, // filter4
98361042, 98361042, 98361042, 98361042, 98361042, 77020633, 81370126,
84077549, 78948755, 79569512, 84185972, 83640084, 86698151, 83640084,
84723892, 98361042, 98361042, 98361042, 98361042, 98361042, 83085806,
86596858, 86188962, 80179573, 83640084, // filter5
84685724, 8468572, 13421772, 47622337, 33714025, 59952752, 33714025,
4244342, 37827798, 13421772, 67268247, 26780001, 8468572, 42443420,
13421772, 67268247, 13421772, 33714025, 37827798, 21272041, 67268247,
26780001, 23867686, 42443420, 13421772, // filter2 amplitudes
13421772, 4244342, 4244342, 21272041, 4244342, 47622337, 47622337,
21272041, 11962175, 3371402, 9501881, 16897005, 8468572, 6726824,
9501881, 3371402, 23867686, 6726824, 10661291, 2386768, 59952752,
33714025, 16897005, 33714025, 18958757, // filter3 amplitudes
2127204, 2386768, 2127204, 5343312, 1342177, 47622337, 33714025,
10661291, 13421772, 5343312, 8468572, 13421772, 2127204, 10661291,
4244342, 13421772, 1342177, 6726824, 10661291, 1342177, 53433126,
26780001, 13421772, 33714025, 26780001, // filter4 amplitudes
134217, 134217, 134217, 238676, 84685, 13421772, 16897005,
5343312, 1342177, 2127204, 1689700, 13421772, 2127204, 2678000,
2678000, 424434, 212720, 846857, 424434, 134217, 10661291,
13421772, 4244342, 6726824, 6726824 // filter5 amplitudes
};val0 = 0;
val1 = 0;
val2 = 0;
val3 = 0;
val4 = 0;
val5 = 0;
val6 = 0;
val7 = 0;
val8 = 0;
valb0 = 0;
valb1 = 0;
valb2 = 0;
valb3 = 0;
valb4 = 0;
valb5 = 0;
valb6 = 0;
valb7 = 0;
valb8 = 0;
xfade = 0;xfade = ___SMMLA(xfade - inlet_c, (-1 << 26) + (param_smoothxfade >> 1), xfade);
int64_t j = (int64_t)(inlet_pitch)*inlet_c2;
j += (int64_t)inlet_formantshift * ((128 << 20) - inlet_c2);
val0 = ___SMMLA(val0 - filtersettings[inlet_s1],
(-1 << 26) + (param_vowelsmooth >> 1), val0);
valb0 = ___SMMLA(valb0 - filtersettings[inlet_s2],
(-1 << 26) + (param_vowelsmooth >> 1), valb0);
int64_t a = (int64_t)valb0 * xfade;
a += (int64_t)val0 * ((128 << 20) - xfade);
outlet_f1 = (a >> 27) + (j >> 27);
val1 = ___SMMLA(val1 - filtersettings[inlet_s1 + 25],
(-1 << 26) + (param_vowelsmooth >> 1), val1);
valb1 = ___SMMLA(valb1 - filtersettings[inlet_s2 + 25],
(-1 << 26) + (param_vowelsmooth >> 1), valb1);
int64_t b = (int64_t)valb1 * xfade;
b += (int64_t)val1 * ((128 << 20) - xfade);
outlet_f2 = (b >> 27) + (j >> 27);
val2 = ___SMMLA(val2 - filtersettings[inlet_s1 + 50],
(-1 << 26) + (param_vowelsmooth >> 1), val2);
valb2 = ___SMMLA(valb2 - filtersettings[inlet_s2 + 50],
(-1 << 26) + (param_vowelsmooth >> 1), valb2);
int64_t c = (int64_t)valb2 * xfade;
c += (int64_t)val2 * ((128 << 20) - xfade);
outlet_f3 = (c >> 27) + (j >> 27);
val3 = ___SMMLA(val3 - filtersettings[inlet_s1 + 75],
(-1 << 26) + (param_vowelsmooth >> 1), val3);
valb3 = ___SMMLA(valb3 - filtersettings[inlet_s2 + 75],
(-1 << 26) + (param_vowelsmooth >> 1), valb3);
int64_t d = (int64_t)valb3 * xfade;
d += (int64_t)val3 * ((128 << 20) - xfade);
outlet_f4 = (d >> 27) + (j >> 27);
val4 = ___SMMLA(val4 - filtersettings[inlet_s1 + 100],
(-1 << 26) + (param_vowelsmooth >> 1), val4);
valb4 = ___SMMLA(valb4 - filtersettings[inlet_s2 + 100],
(-1 << 26) + (param_vowelsmooth >> 1), valb4);
int64_t e = (int64_t)valb4 * xfade;
e += (int64_t)val4 * ((128 << 20) - xfade);
outlet_f5 = (e >> 27) + (j >> 27);
val5 = ___SMMLA(val5 - filtersettings[inlet_s1 + 125],
(-1 << 26) + (param_vowelsmooth >> 1), val5);
valb5 = ___SMMLA(valb5 - filtersettings[inlet_s2 + 125],
(-1 << 26) + (param_vowelsmooth >> 1), valb5);
int64_t f = (int64_t)valb5 * xfade;
f += (int64_t)val5 * ((128 << 20) - xfade);
outlet_a2 = f >> 27;
val6 = ___SMMLA(val6 - filtersettings[inlet_s1 + 150],
(-1 << 26) + (param_vowelsmooth >> 1), val6);
valb6 = ___SMMLA(valb6 - filtersettings[inlet_s2 + 150],
(-1 << 26) + (param_vowelsmooth >> 1), valb6);
int64_t g = (int64_t)valb6 * xfade;
g += (int64_t)val6 * ((128 << 20) - xfade);
outlet_a3 = g >> 27;
val7 = ___SMMLA(val7 - filtersettings[inlet_s1 + 175],
(-1 << 26) + (param_vowelsmooth >> 1), val7);
valb7 = ___SMMLA(valb7 - filtersettings[inlet_s2 + 175],
(-1 << 26) + (param_vowelsmooth >> 1), valb7);
int64_t h = (int64_t)valb7 * xfade;
h += (int64_t)val7 * ((128 << 20) - xfade);
outlet_a4 = h >> 27;
val8 = ___SMMLA(val8 - filtersettings[inlet_s1 + 200],
(-1 << 26) + (param_vowelsmooth >> 1), val8);
valb8 = ___SMMLA(valb8 - filtersettings[inlet_s2 + 200],
(-1 << 26) + (param_vowelsmooth >> 1), valb8);
int64_t i = (int64_t)valb8 * xfade;
i += (int64_t)val8 * ((128 << 20) - xfade);
outlet_a5 = i >> 27;
