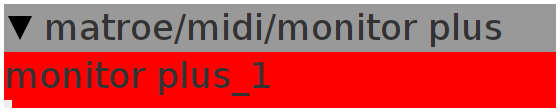

monitor plus
mod of factory monitor Dumps incoming MIDI data to the log. Useful for diagnostics, but do not leave it in a patch for real playing! Occasionally causes disconnects. modded to include channel touch and clock messages, plus tells you which device/port dev 1 = DIN
Inlets
None
Outlets
None
Parameters
bool32.tgl Enable to monitor Control Change messages
bool32.tgl Enable to monitor Note On/Off messages
bool32.tgl Enable to monitor Program Change messages
bool32.tgl Enable to monitor Pitch Bend messages
bool32.tgl Enable to monitor Polyphonic Pressure messages
bool32.tgl Enable to monitor Channel Pressure messages
bool32.tgl Clock
bool32.tgl StartStop
bool p_Note;
bool p_PolyPressure;
bool p_ControlChange;
bool p_ProgramChange;
bool p_Bend;
bool p_ChannelPressure;
bool p_Clock;
bool p_StartStop;p_Note = param_Note;
p_PolyPressure = param_PolyPressure;
p_ControlChange = param_ControlChange;
p_ProgramChange = param_ProgramChange;
p_Bend = param_Bend;
p_ChannelPressure = param_ChannelPressure;
p_Clock = param_Clock;
p_StartStop = param_StartStop;switch (status & 0xf0) {
case MIDI_NOTE_ON:
if (p_Note)
LogTextMessage("NoteOn ch%2D n%3D v%3D dev%3D port%3D ",
1 + (status & 0x0F), data1, data2, dev, port);
break;
case MIDI_NOTE_OFF:
if (p_Note)
LogTextMessage("NoteOff ch%2D n%3D v%3D dev%3D port%3D ",
1 + (status & 0x0F), data1, data2, dev, port);
break;
case MIDI_POLY_PRESSURE:
if (p_PolyPressure)
LogTextMessage("PolyPrs ch%2D n%3D v%3D dev%3D port%3D ",
1 + (status & 0x0F), data1, data2, dev, port);
break;
case MIDI_CONTROL_CHANGE:
if (p_ControlChange)
LogTextMessage("Control ch%2D cc%3D v%3D dev%3D port%3D ",
1 + (status & 0x0F), data1, data2, dev, port);
break;
case MIDI_PROGRAM_CHANGE:
if (p_ProgramChange)
LogTextMessage("PgmChg ch%2D pgm%3D dev%3D port%3D ",
1 + (status & 0x0F), data1, data2, dev, port);
break;
case MIDI_PITCH_BEND:
if (p_Bend)
LogTextMessage("PitchBnd ch%2D v%3D v%3D dev%3D port%3D ",
1 + (status & 0x0F), data1, data2, dev, port);
break;
case MIDI_CHANNEL_PRESSURE:
if (p_ChannelPressure)
LogTextMessage("ChannelPrs ch%2D v%3D dev%3D port%3D ",
1 + (status & 0x0F), data1, dev, port);
break;
default:;
}
if ((status == MIDI_TIMING_CLOCK) && p_Clock) {
LogTextMessage("Clock Tick dev%3D port%3D ", dev, port);
}
if ((status == MIDI_START) && p_StartStop) {
LogTextMessage("Start Clock dev%3D port%3D ", dev, port);
}
if ((status == MIDI_STOP) && p_StartStop) {
LogTextMessage("Stop Clock dev%3D port%3D ", dev, port);
}
