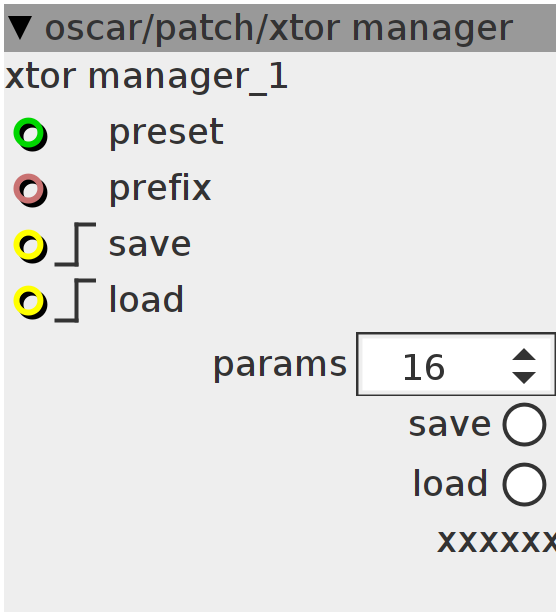

xtor manager

This object manages presets of special xtorable objects and stores them in .xtor files in the sdcard. To use it, write the name of this object as a reference in xtorable controls. The name of the files will be prefix000.xtor, where 000 is the prefix number. Preset inlet selects preset number, from 0 to 999. Prefix inlet selects an optional string prefix for the file names. Save and load are self explanatory. Params atribute selects the max number of params you plan to store. You can change it later and the preset files will still work. Also, you can leave it bigger than you need, but the smaller it is, the less memory it occupies.
Author: Oscar Abraham
License: BSD
Github: oscar/patch/xtor manager.axo

Inlets

int32 preset

charptr32 prefix

bool32.rising save

bool32.rising load

Outlets

None

Parameters

bool32.mom save

bool32.mom load

Attributes

spinner params

Displays

int32.label current

Declaration
//#define DEBUGF LogTextMessage
//#define DEBUGF_THREAD LogTextMessage
#define DEBUGF(...)                                                            \
  {}
#define DEBUGF_THREAD(...)                                                     \
  {}

uint8_t indexArray[attr_params];
uint32_t hashArray[attr_params];
int32_t paramLength = 0;
int32_t currentPreset = 0;

bool saveBtn = false;
bool loadBtn = false;
bool saveExt = false;
bool loadExt = false;
uint8_t initializationStep = 0;

void registerParam(int PExchIndex, const char *name) {
  if (paramLength <= attr_params) {
    indexArray[paramLength] = PExchIndex;
    hashArray[paramLength] = CalcCRC32((uint8_t *)name, strlen(name));
  }
  paramLength++;
}

void prepareFileName(char *filename, int buflen, const char *prefix, int pnum) {
  int offset = 0;
  if (prefix != NULL) {
    strncpy(filename, prefix, buflen);
    offset = strlen(filename);
  }
  if (buflen >= offset + 4) {
    filename[offset++] = '0' + (pnum / 100) % 10;
    filename[offset++] = '0' + (pnum / 10) % 10;
    filename[offset++] = '0' + pnum % 10;
    filename[offset] = 0;
  }
  strncpy(filename + offset, ".xtor", buflen - offset);
  filename[buflen - 1] = 0;
}

int file_error(FIL *FileObject, FRESULT err, const char *filename) {
  if (err != FR_OK)
    report_fatfs_error(err, filename);
  if (FileObject != NULL)
    f_close(FileObject);
  return -1;
}

int save(const char *prefix, int pnum) {
  FRESULT err;
  unsigned int bytes_written;
  uint32_t pair[2];
  FIL FileObject;
  char filename[64];

  prepareFileName(filename, 64, prefix, pnum);

  err = f_open(&FileObject, filename, FA_WRITE | FA_CREATE_ALWAYS);
  if (err != FR_OK) {
    return file_error(&FileObject, err, filename);
  }

  err = f_write(&FileObject, (uint8_t *)"XTO1", 4, &bytes_written);
  if (err != FR_OK) {
    return file_error(&FileObject, err, filename);
  }

  err = f_write(&FileObject, (uint8_t *)&paramLength, sizeof(int32_t),
                &bytes_written);
  if (err != FR_OK) {
    return file_error(&FileObject, err, filename);
  }

  for (int i = 0; i < paramLength; i++) {
    pair[0] = parent->PExch[indexArray[i]].value;
    pair[1] = hashArray[i];
    err = f_write(&FileObject, (uint8_t *)pair, sizeof(pair), &bytes_written);
    if (err != FR_OK) {
      return file_error(&FileObject, err, filename);
    }
  }

  err = f_close(&FileObject);
  if (err != FR_OK) {
    return file_error(&FileObject, err, filename);
  }
  return 1;
}

int load(const char *prefix, int pnum) {

  FRESULT err;
  FIL FileObject;
  unsigned int bytes_read;
  int n_params;
  char filename[64];

  prepareFileName(filename, 64, prefix, pnum);

  err = f_open(&FileObject, filename, FA_READ | FA_OPEN_EXISTING);

  if (err != FR_OK) {
    return file_error(&FileObject, err, filename);
  }

  f_lseek(&FileObject, 4);
  err = f_read(&FileObject, (uint8_t *)&n_params, sizeof(int32_t), &bytes_read);
  if (err != FR_OK) {
    return file_error(&FileObject, err, filename);
  }

  for (int param_i = 0; param_i < n_params; param_i++) {
    uint32_t pair[2];
    err = f_read(&FileObject, (uint8_t *)pair, sizeof(pair), &bytes_read);
    if (err != FR_OK) {
      return file_error(&FileObject, err, filename);
    }
    for (int i = 0; i < paramLength; i++) {
      if (pair[1] == hashArray[i]) { // if names coincide
        PExParameterChange(&parent->PExch[indexArray[i]], pair[0], 0xFFFD);
        continue;
      }
    }
  }

  err = f_close(&FileObject);
  if (err != FR_OK) {
    file_error(&FileObject, err, filename);
    return -1;
  }

  return 1;
}

WORKING_AREA(waThreadX, 1024);
Thread *Thd;
const char *th_prefix;
int th_preset_no;
int th_mode;

msg_t ThreadX2() {
  if (th_mode == 0) {
    load(th_prefix, th_preset_no);
    DEBUGF_THREAD("xtor load done");
  } else {
    save(th_prefix, th_preset_no);
    DEBUGF_THREAD("xtor save done");
  }
}

static msg_t ThreadX(void *arg) { ((attr_parent *)arg)->ThreadX2(); }

void th_start(int mode, const char *prefix, int preset_no) {
  if (Thd != NULL) {
    chThdWait(Thd);
  }
  th_prefix = prefix;
  th_preset_no = preset_no;
  th_mode = mode;
  Thd = chThdCreateStatic(waThreadX, sizeof(waThreadX), NORMALPRIO, ThreadX,
                          (void *)this);
  DEBUGF_THREAD("Thread started...");
}

int th_preset_load(const char *prefix, int preset_no) {
  DEBUGF_THREAD("Load, waiting...");
  th_start(0, prefix, preset_no);
  return FR_OK;
}

int th_preset_save(const char *prefix, int preset_no) {
  DEBUGF_THREAD("Save, waiting...");
  th_start(1, prefix, preset_no);
  return FR_OK;
}
Control Rate
if (initializationStep <= 0) {
  // give time for the params to be registered
  initializationStep++;
} else {
  if ((param_save && !saveBtn) || (inlet_save && !saveExt)) {
    currentPreset = inlet_preset;
    th_preset_save(inlet_prefix, currentPreset);
  }

  if (param_load && !loadBtn || (inlet_load && !loadExt)) {
    currentPreset = inlet_preset;
    th_preset_load(inlet_prefix, currentPreset);
  }
}

saveBtn = param_save;
loadBtn = param_load;
saveExt = inlet_save;
loadExt = inlet_load;
disp_current = currentPreset;
Dispose
if (Thd != NULL) {
  chThdTerminate(Thd);
  chThdWait(Thd);
}
