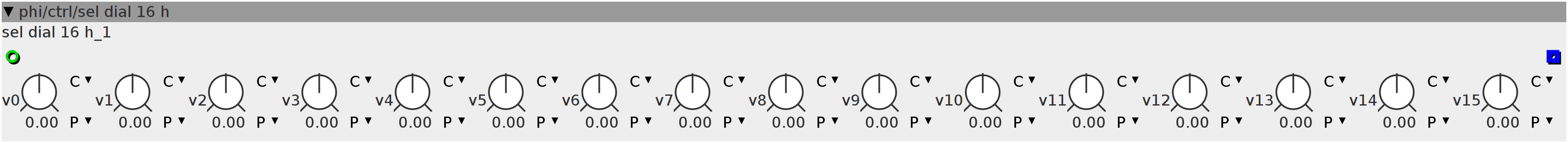

sel dial 16 h

$\text{[math]}$

selectable constant horizontal

Author: Johannes Taelman

License: BSD

Github: phi/ctrl/sel dial 16 h.axo

Inlets

int32 select

Outlets

frac32 output

Parameters

frac32.s.map v0

frac32.s.map v1

frac32.s.map v2

frac32.s.map v3

frac32.s.map v4

frac32.s.map v5

frac32.s.map v6

frac32.s.map v7

frac32.s.map v8

frac32.s.map v9

frac32.s.map v10

frac32.s.map v11

frac32.s.map v12

frac32.s.map v13

frac32.s.map v14

frac32.s.map v15

Control Rate

switch (inlet_s > 0 ? inlet_s : 0) {
case 0:
  outlet_o = param_v0;
  break;
case 1:
  outlet_o = param_v1;
  break;
case 2:
  outlet_o = param_v2;
  break;
case 3:
  outlet_o = param_v3;
  break;
case 4:
  outlet_o = param_v4;
  break;
case 5:
  outlet_o = param_v5;
  break;
case 6:
  outlet_o = param_v6;
  break;
case 7:
  outlet_o = param_v7;
  break;
case 8:
  outlet_o = param_v8;
  break;
case 9:
  outlet_o = param_v9;
  break;
case 10:
  outlet_o = param_v10;
  break;
case 11:
  outlet_o = param_v11;
  break;
case 12:
  outlet_o = param_v12;
  break;
case 13:
  outlet_o = param_v13;
  break;
case 14:
  outlet_o = param_v14;
  break;
case 15:
default:
  outlet_o = param_v15;
  break;
}
