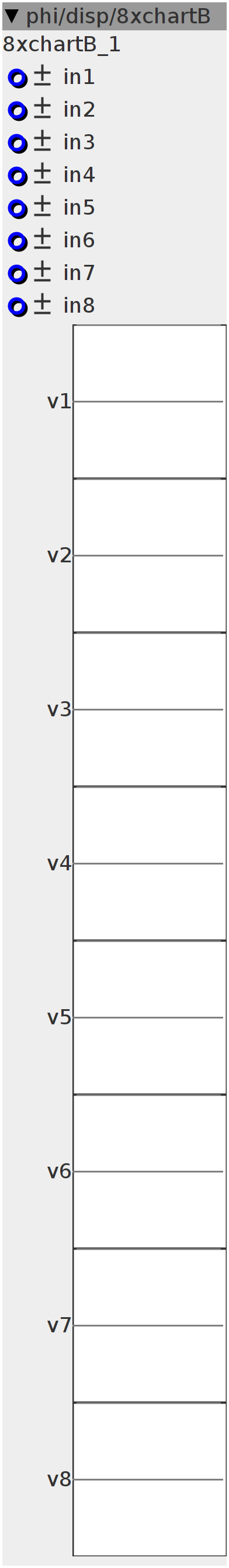

8xchartB

8x bipolar k-rate signal chart plotter
Author: phi
License: BSD
Github: phi/disp/8xchartB.axo

Inlets

frac32.bipolar in1

frac32.bipolar in2

frac32.bipolar in3

frac32.bipolar in4

frac32.bipolar in5

frac32.bipolar in6

frac32.bipolar in7

frac32.bipolar in8

Outlets

None

Displays

frac32.s.chart v1

frac32.s.chart v2

frac32.s.chart v3

frac32.s.chart v4

frac32.s.chart v5

frac32.s.chart v6

frac32.s.chart v7

frac32.s.chart v8

Control Rate
disp_v1 = inlet_in1;
disp_v2 = inlet_in2;
disp_v3 = inlet_in3;
disp_v4 = inlet_in4;
disp_v5 = inlet_in5;
disp_v6 = inlet_in6;
disp_v7 = inlet_in7;
disp_v8 = inlet_in8;
