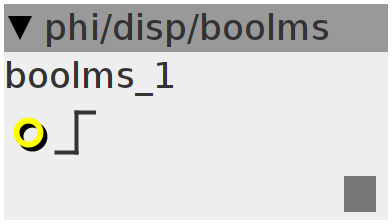

boolms
Generates a single pulse after a rising edge on trigger input. A new trigger before the pulse finishes at the output, extends the pulse.
Inlets
bool32.rising trigger
Outlets
None
Displays
bool32 bool
Declaration
int32_t val;
int ntrig;
Init
val = 0;
ntrig = 0;
Control Rate
if ((inlet_trig > 0) && !ntrig) {
val = 1 << 30;
ntrig = 1;
disp_bool = 1;
} else {
if (!(inlet_trig > 0))
ntrig = 0;
if (val > 0) {
int32_t t;
MTOF(-64, t);
val -= t >> 3;
if (val <= 0)
disp_bool = 0;
else
disp_bool = 1;
} else
disp_bool = 0;
}
