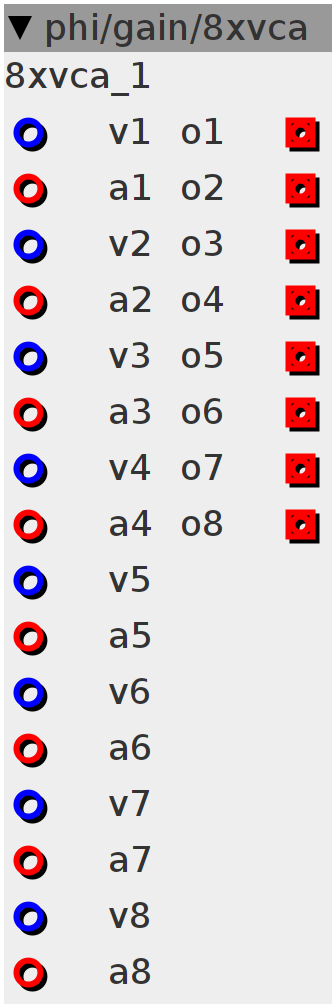

8xvca
8x "voltage controlled amplifier", multiplies v and a inputs, with linear interpolation from k- to s-rate
Inlets
frac32 gain input
frac32 v2
frac32 v3
frac32 v4
frac32 v5
frac32 v6
frac32 v7
frac32 v8
frac32buffer a1
frac32buffer a2
frac32buffer a3
frac32buffer a4
frac32buffer a5
frac32buffer a6
frac32buffer a7
frac32buffer a8
Outlets
frac32buffer o1
frac32buffer o2
frac32buffer o3
frac32buffer o4
frac32buffer o5
frac32buffer o6
frac32buffer o7
frac32buffer o8
int32_t prev1;
int32_t step1;
int32_t prev2;
int32_t step2;
int32_t prev3;
int32_t step3;
int32_t prev4;
int32_t step4;
int32_t prev5;
int32_t step5;
int32_t prev6;
int32_t step6;
int32_t prev7;
int32_t step7;
int32_t prev8;
int32_t step8;step1 = (inlet_v1 - prev1) >> 4;
int32_t i1 = prev1;
prev1 = inlet_v1;
step2 = (inlet_v2 - prev2) >> 4;
int32_t i2 = prev2;
prev2 = inlet_v2;
step3 = (inlet_v3 - prev3) >> 4;
int32_t i3 = prev3;
prev3 = inlet_v3;
step4 = (inlet_v4 - prev4) >> 4;
int32_t i4 = prev4;
prev4 = inlet_v4;
step5 = (inlet_v5 - prev5) >> 4;
int32_t i5 = prev5;
prev5 = inlet_v5;
step6 = (inlet_v6 - prev6) >> 4;
int32_t i6 = prev6;
prev6 = inlet_v6;
step7 = (inlet_v7 - prev7) >> 4;
int32_t i7 = prev7;
prev7 = inlet_v7;
step8 = (inlet_v8 - prev8) >> 4;
int32_t i8 = prev8;
prev8 = inlet_v8;outlet_o1 = ___SMMUL(inlet_a1, i1) << 5;
i1 += step1;
outlet_o2 = ___SMMUL(inlet_a2, i2) << 5;
i2 += step2;
outlet_o3 = ___SMMUL(inlet_a3, i3) << 5;
i3 += step3;
outlet_o4 = ___SMMUL(inlet_a4, i4) << 5;
i4 += step4;
outlet_o5 = ___SMMUL(inlet_a5, i5) << 5;
i5 += step5;
outlet_o6 = ___SMMUL(inlet_a6, i6) << 5;
i6 += step6;
outlet_o7 = ___SMMUL(inlet_a7, i7) << 5;
i7 += step7;
outlet_o8 = ___SMMUL(inlet_a8, i8) << 5;
i8 += step8;
