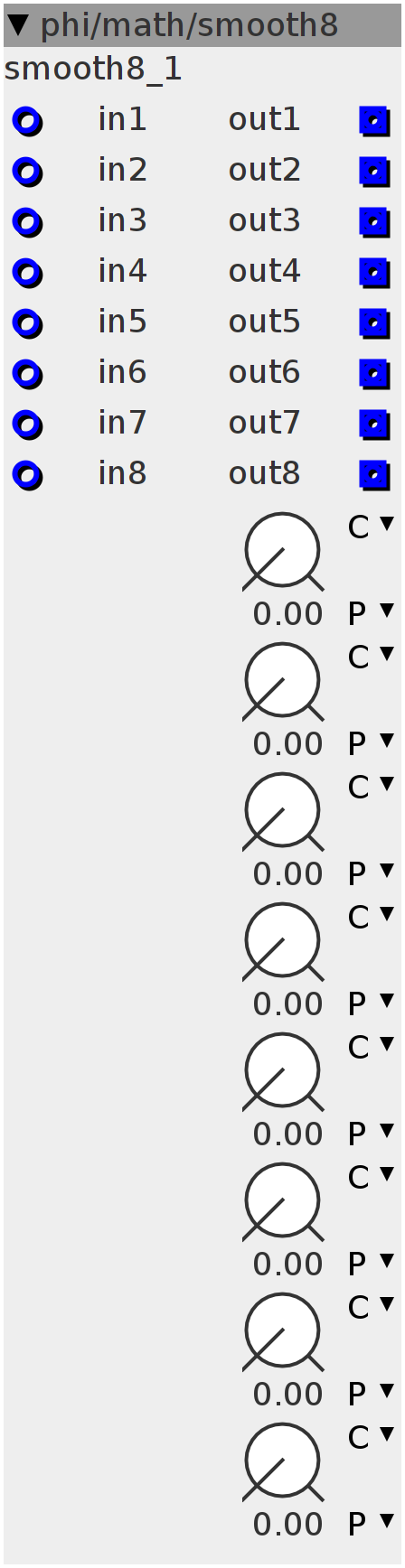

smooth8
eight exponential smooth
Inlets
frac32 input
frac32 input
frac32 input
frac32 input
frac32 input
frac32 input
frac32 input
frac32 input
Outlets
frac32 output
frac32 output
frac32 output
frac32 output
frac32 output
frac32 output
frac32 output
frac32 output
Parameters
frac32.u.map time1
frac32.u.map time2
frac32.u.map time3
frac32.u.map time4
frac32.u.map time5
frac32.u.map time6
frac32.u.map time7
frac32.u.map time8
int32_t val1;
int32_t val2;
int32_t val3;
int32_t val4;
int32_t val5;
int32_t val6;
int32_t val7;
int32_t val8;val1 = 0;
val2 = 0;
val3 = 0;
val4 = 0;
val5 = 0;
val6 = 0;
val7 = 0;
val8 = 0;val1 = ___SMMLA(val1 - inlet_in1, (-1 << 26) + (param_time1 >> 1), val1);
outlet_out1 = val1;
val2 = ___SMMLA(val2 - inlet_in2, (-1 << 26) + (param_time2 >> 1), val2);
outlet_out2 = val2;
val3 = ___SMMLA(val3 - inlet_in3, (-1 << 26) + (param_time3 >> 1), val3);
outlet_out3 = val3;
val4 = ___SMMLA(val4 - inlet_in4, (-1 << 26) + (param_time4 >> 1), val4);
outlet_out4 = val4;
val5 = ___SMMLA(val5 - inlet_in5, (-1 << 26) + (param_time5 >> 1), val5);
outlet_out5 = val5;
val6 = ___SMMLA(val6 - inlet_in6, (-1 << 26) + (param_time6 >> 1), val6);
outlet_out6 = val6;
val7 = ___SMMLA(val7 - inlet_in7, (-1 << 26) + (param_time7 >> 1), val7);
outlet_out7 = val7;
val8 = ___SMMLA(val8 - inlet_in8, (-1 << 26) + (param_time8 >> 1), val8);
outlet_out8 = val8;
