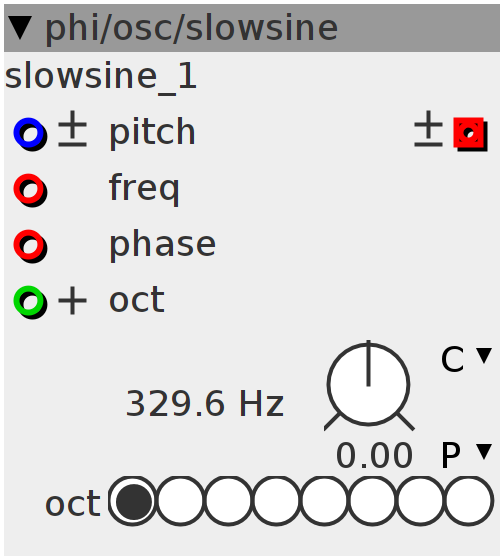

slowsine
sine wave oscillator
Inlets
int32.positive oct
frac32.bipolar pitch
frac32buffer frequency
frac32buffer phase
Outlets
frac32buffer.bipolar sine wave
Parameters
frac32.s.map.pitch pitch
int32.hradio oct
Declaration
uint32_t Phase;
Init
Phase = 0;
Control Rate
int32_t freq;
MTOFEXTENDED(param_pitch + inlet_pitch, freq);
Audio Rate
Phase += (freq + inlet_freq) >> (param_oct + inlet_oct);
int32_t r;
int32_t p2 = Phase + (inlet_phase << param_oct);
SINE2TINTERP(p2, r)
outlet_wave = (r >> 4);
