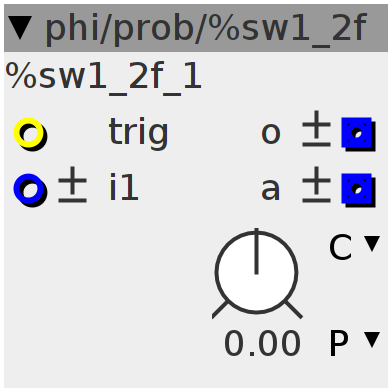

%sw1_2f
probabiltiy switch 1-2i
Inlets
bool32 trig
frac32.bipolar i1
Outlets
frac32.bipolar o
frac32.bipolar a
Parameters
frac32.s.map prob
Declaration
int32_t val;
int ntrig;
Init
val = (int32_t)(GenerateRandomNumber()) >> 4;
ntrig = 0;
Control Rate
if ((inlet_trig > 0) && !ntrig) {
val = (int32_t)(GenerateRandomNumber()) >> 4;
ntrig = 1;
} else if (!(inlet_trig > 0))
ntrig = 0;
outlet_o = ((val >= param_prob)) ? inlet_i1 : 0;
outlet_a = ((val < param_prob)) ? inlet_i1 : 0;
