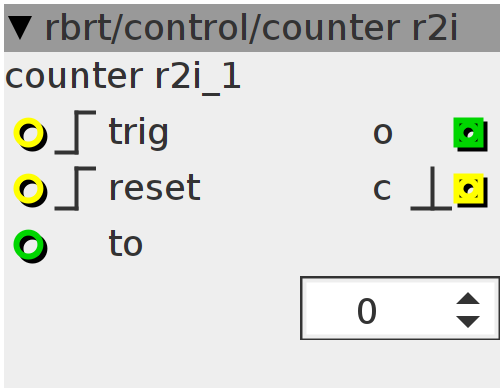

counter r2i
cyclic up counter
Inlets
bool32.rising trigger
bool32.rising reset
int32 reset to int
Outlets
int32 output
bool32.pulse carry pulse
Parameters
int32 maximum
Declaration
int ntrig;
int rtrig;
int count;
Init
count = 0;
ntrig = 0;
rtrig = 0;
Control Rate
outlet_c = 0;
if ((inlet_trig > 0) && !ntrig) {
count += 1;
if (count >= param_maximum) {
count = 0;
outlet_c = 1;
}
ntrig = 1;
} else if (!(inlet_trig > 0))
ntrig = 0;
if ((inlet_reset > 0) && !rtrig) {
count = inlet_to;
rtrig = 1;
} else if (!(inlet_reset > 0))
rtrig = 0;
outlet_o = count;
