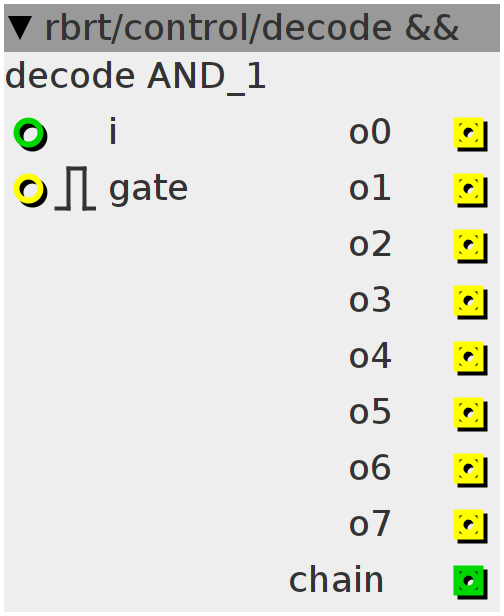

decode AND
integer decoder.only outputs if 'gate' is true.
Inlets
int32 input 1
bool32.risingfalling gate
Outlets
bool32 output 0
bool32 output 1
bool32 output 2
bool32 output 3
bool32 output 4
bool32 output 5
bool32 output 6
bool32 output 7
int32 chain output
outlet_o0 = ((inlet_i == 0) && inlet_gate) ? 1 : 0;
outlet_o1 = ((inlet_i == 1) && inlet_gate) ? 1 : 0;
outlet_o2 = ((inlet_i == 2) && inlet_gate) ? 1 : 0;
outlet_o3 = ((inlet_i == 3) && inlet_gate) ? 1 : 0;
outlet_o4 = ((inlet_i == 4) && inlet_gate) ? 1 : 0;
outlet_o5 = ((inlet_i == 5) && inlet_gate) ? 1 : 0;
outlet_o6 = ((inlet_i == 6) && inlet_gate) ? 1 : 0;
outlet_o7 = ((inlet_i == 7) && inlet_gate) ? 1 : 0;
outlet_chain = (inlet_i - 8);
