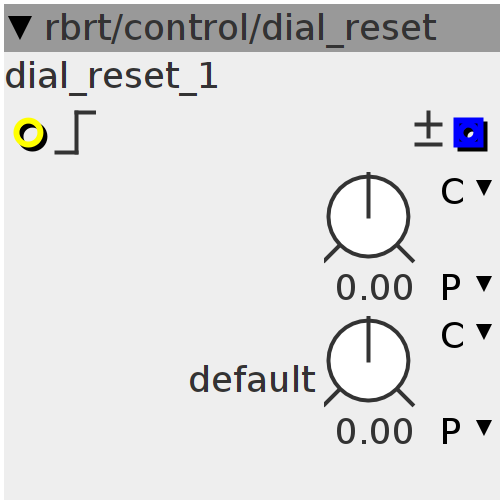

dial_reset
bipolar constant value dial. trigger at inlet 'reset' will set the output to 'default'
Inlets
bool32.rising reset output to default
Outlets
frac32.bipolar output
Parameters
frac32.s.map value
frac32.s.map default
Declaration
int ntrig;
uint32_t prev;
Control Rate
if ((inlet_reset > 0) && !ntrig) {
ntrig = 1;
outlet_out = param_default;
prev = param_value;
}
if (!(inlet_reset > 0))
ntrig = 0;
if (param_value != prev)
outlet_out = param_value;
else
outlet_out = param_default;
