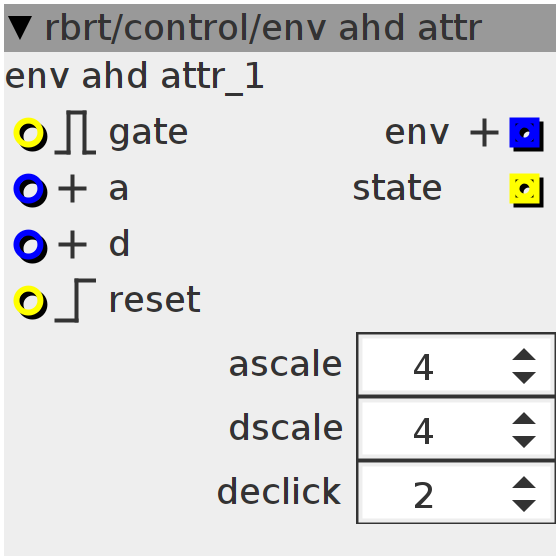

env ahd attr
mod of attack/hold/decay envelope, linear ramps. attack/decay times can be scaled with the attributes 'a' and 'd'. 'state' reflects the envelope's state. if 'attack' is zero,a very short slope defined by 'declick' is used,to avoid clicking
Inlets
bool32.risingfalling trigger
frac32.positive a
frac32.positive d
bool32.rising reset
Outlets
frac32.positive envelope output
bool32 state
Attributes
spinner ascale
spinner dscale
spinner declick
int32_t val;val = 0;if (inlet_gate > 0) {
int32_t t;
MTOF(-inlet_a, t);
val += (inlet_a) ? t >> attr_ascale : 1 << (27 - attr_declick);
} else {
int32_t t;
MTOF(-inlet_d, t);
val -= t >> attr_dscale;
}
val = __USAT(val, 27);
if (inlet_reset)
val = 0;
outlet_env = val;
outlet_state = bool(val);
