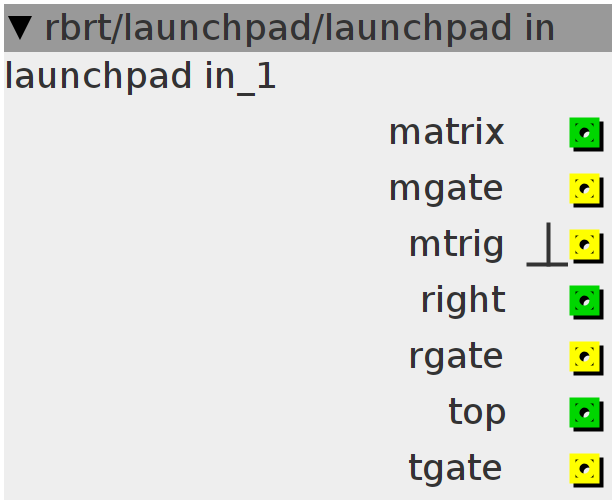

launchpad in
outputs the state of the buttons of a 'novation launchpad' (MKII or mini). will NOT work with the 'launchpad MK I' matrix: matrix-button index (from left-top to bottom-right) mgate: button pressed? right: right button index (top to bottom) rgate: pressed? top: top button index (left to right) tgate :pressed ?
Inlets
None
Outlets
int32 matrix
int32 right
int32 top
bool32 mgate
bool32 rgate
bool32 tgate
bool32.pulse mtrig
Declaration
int8_t _note1;
uint8_t _gate1;
int8_t _note2;
uint8_t _gate2;
uint8_t bitmask1 = 0b10001110;
int32_t _value;
int32_t _cc;
bool trig;
Control Rate
outlet_matrix = (_note1 - ((_note1 >> 4) << 3));
outlet_mgate = _gate1;
outlet_mtrig = trig;
outlet_right = (((_note2 - 8) >> 4) >= 0) ? ((_note2 - 8) >> 4) : 0;
outlet_rgate = _gate2;
outlet_top = (_cc >= 104) ? (_cc - 104) : 0;
outlet_tgate = _value;
trig = 0;
Midi Handler
if ((status == MIDI_NOTE_ON + attr_midichannel) && (data2)) {
if ((data1 - 8) & bitmask1) {
_note1 = data1;
_gate1 = 1;
trig = 1;
}
} else if (((status == MIDI_NOTE_ON + attr_midichannel) && (!data2)) ||
(status == MIDI_NOTE_OFF + attr_midichannel)) {
if (_note1 == data1) {
_gate1 = 0;
}
} else if ((status == attr_midichannel + MIDI_CONTROL_CHANGE) &&
(data1 == MIDI_C_ALL_NOTES_OFF)) {
_gate1 = 0;
}
if ((status == MIDI_NOTE_ON + attr_midichannel) && (data2)) {
if (!((data1 - 8) & bitmask1)) {
_note2 = data1;
_gate2 = 1;
}
} else if (((status == MIDI_NOTE_ON + attr_midichannel) && (!data2)) ||
(status == MIDI_NOTE_OFF + attr_midichannel)) {
if (_note2 == data1) {
_gate2 = 0;
}
} else if ((status == attr_midichannel + MIDI_CONTROL_CHANGE) &&
(data1 == MIDI_C_ALL_NOTES_OFF)) {
_gate2 = 0;
}
if ((status & 0xF0) == MIDI_CONTROL_CHANGE) {
_value = data2 << 20;
;
_cc = data1;
}
