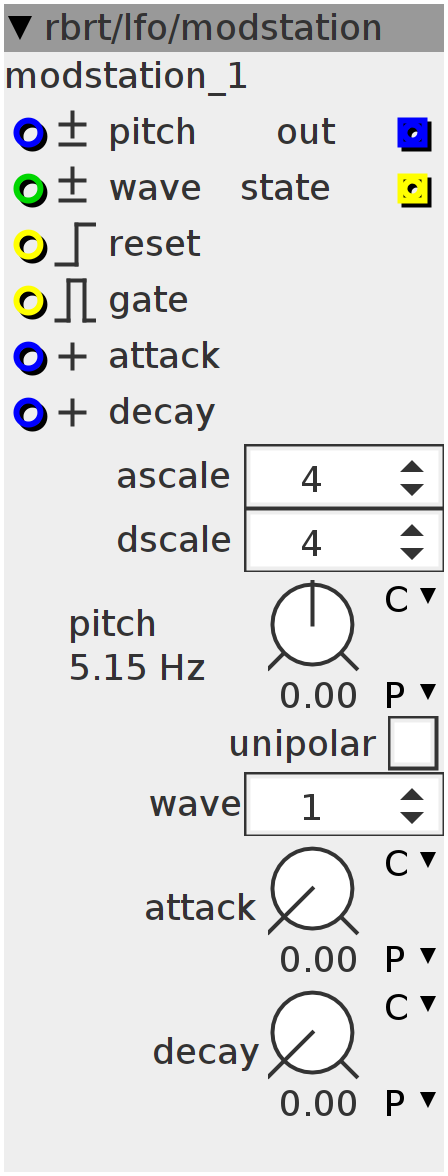

modstation
mod of an object by dr.j added an envelope as sixth option. removed some other stuff.
Inlets
int32.bipolar Waveform, added to wave parameter
bool32.rising Reset phase
bool32.risingfalling gate
frac32.positive attack
frac32.positive decay
frac32.bipolar Pitch input
Outlets
frac32 Output
bool32 state
Parameters
frac32.s.map.lfopitch Pitch
bool32.tgl Unipolar output
int32 1-5 = tri, sine, saw+, saw-, square
frac32.u.map attack
frac32.u.map decay
Attributes
spinner ascale
spinner dscale
uint32_t phase;
int32_t old_reset;
__attribute__((always_inline)) __STATIC_INLINE int32_t ___ABS(int32_t op1) {
int32_t result;
__ASM volatile("movs %0, %1\n"
"it mi\n"
"rsbmi %0, %0, #0"
: "=r"(result)
: "r"(op1));
return (result);
};
int32_t val;phase = 0;
old_reset = 0;if (inlet_reset && !old_reset) {
phase = 0;
} else {
int32_t pitch;
pitch = param_pitch + inlet_pitch;
if (pitch > 0x07FFFFFF)
pitch = 0x07FFFFFF;
// pitch = __SSAT( pitch, 28 );
MTOFEXTENDED(pitch, pitch);
phase += pitch >> 2;
}
old_reset = inlet_reset;
uint32_t phase1 = phase;
switch (param_wave + inlet_wave) {
default:
case 1:
// Sine
SINE2TINTERP(phase1, outlet_out)
outlet_out = (outlet_out >> 5) + (1 << 26);
break;
case 2:
// Triangle
outlet_out = (phase1 >> 4) - (1 << 27);
outlet_out = (1 << 27) - ___ABS(outlet_out);
break;
case 3:
// Saw rising
outlet_out = (phase1 >> 5);
break;
case 4:
// Saw falling
outlet_out = (1 << 27) - (phase1 >> 5);
break;
case 5:
// Square
outlet_out = ((phase1 >> 5) > (1 << 26)) ? 0 : (1 << 27) - 1;
break;
case 6:
// linear envelope
if (inlet_gate > 0) {
int32_t t;
MTOF(-(inlet_attack + param_attack), t);
val += (inlet_attack + param_attack) ? t >> attr_ascale : 1 << 27;
} else {
int32_t t;
MTOF(-(inlet_decay + param_decay), t);
val -= t >> attr_dscale;
}
val = __USAT(val, 27);
outlet_out = val;
outlet_state = val;
break;
}
if (!param_unipolar) {
outlet_out = (outlet_out << 1) - (1 << 27);
}
outlet_out = __SSAT(___SMMUL((1 << 27) << 3, outlet_out << 2), 28);
