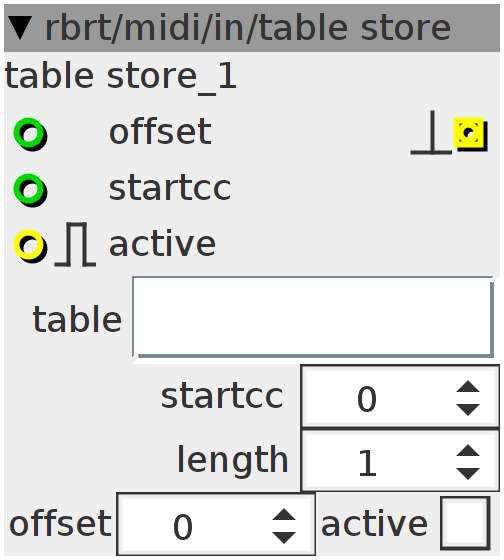

table store
writes midi controler data to a table.set the start of the range of the controlers to read out with 'startcc',the length of the range with 'length'. the data is written to the table starting at 'offset'.
Inlets
int32 offset
int32 startcc
bool32.risingfalling active
Outlets
bool32.pulse pulse if any cc value changes
Parameters
int32 offset
bool32.tgl active
Attributes
objref table
spinner startcc
spinner length
int8_t cc;
int8_t cv;
uint8_t prevcv;
uint8_t prevcc;
uint8_t end;
uint8_t start;
uint32_t offset;
bool chtrig;prevcv = 0;
prevcc = 0;
chtrig = 0;start = attr_startcc + inlet_startcc;
end = start + attr_length;
offset = (inlet_offset + param_offset);
if (((cc >= start) && (cc < end)) && (inlet_active || param_active)) {
if ((cv != prevcv) || (cc != prevcc)) {
attr_table.array[(cc - start) + offset] = ((cv << 20) >> attr_table.GAIN);
prevcv = cv;
prevcc = cc;
chtrig = 1;
}
outlet_chtrig = chtrig;
chtrig = 0;
}if (status == attr_midichannel + MIDI_CONTROL_CHANGE) {
cc = data1;
cv = data2;
}
