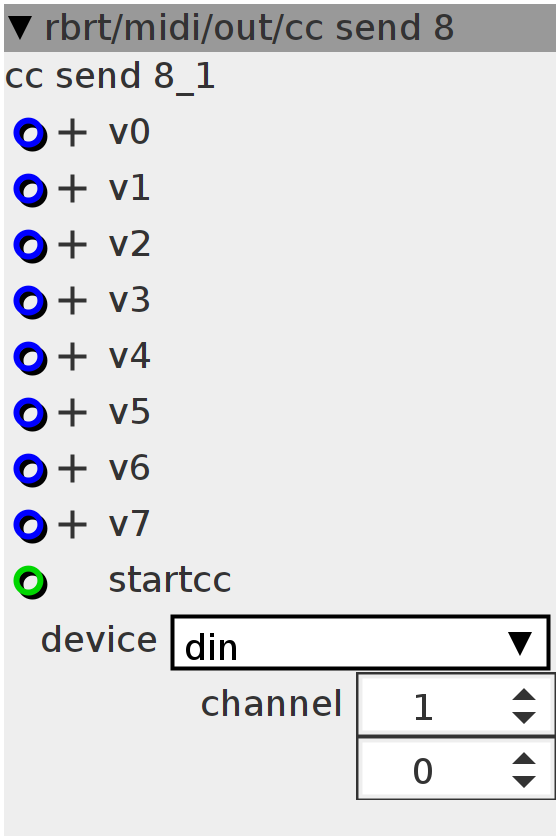

cc send 8

sends 8 midi control changes,starting from 'startcc'
Author: robert schirmer
License: BSD
Github: rbrt/midi/out/cc send 8.axo

Inlets

frac32.positive v0

frac32.positive v1

frac32.positive v2

frac32.positive v3

frac32.positive v4

frac32.positive v5

frac32.positive v6

frac32.positive v7

int32 startcc

Outlets

None

Parameters

int32 startcc

Attributes

combo device

spinner channel

Declaration
uint32_t prev0;
uint32_t prev1;
uint32_t prev2;
uint32_t prev3;
uint32_t prev4;
uint32_t prev5;
uint32_t prev6;
uint32_t prev7;
Control Rate
if (inlet_v0 != prev0) {
  MidiSend3((midi_device_t)attr_device,
            MIDI_CONTROL_CHANGE + (attr_channel - 1),
            0 + inlet_startcc + param_startcc, inlet_v0 >> 20);
  prev0 = inlet_v0;
}

if (inlet_v1 != prev1) {
  MidiSend3((midi_device_t)attr_device,
            MIDI_CONTROL_CHANGE + (attr_channel - 1),
            1 + inlet_startcc + param_startcc, inlet_v1 >> 20);
  prev1 = inlet_v1;
}

if (inlet_v2 != prev2) {
  MidiSend3((midi_device_t)attr_device,
            MIDI_CONTROL_CHANGE + (attr_channel - 1),
            2 + inlet_startcc + param_startcc, inlet_v2 >> 20);
  prev2 = inlet_v2;
}

if (inlet_v3 != prev3) {
  MidiSend3((midi_device_t)attr_device,
            MIDI_CONTROL_CHANGE + (attr_channel - 1),
            3 + inlet_startcc + param_startcc, inlet_v3 >> 20);
  prev3 = inlet_v3;
}

if (inlet_v4 != prev4) {
  MidiSend3((midi_device_t)attr_device,
            MIDI_CONTROL_CHANGE + (attr_channel - 1),
            4 + inlet_startcc + param_startcc, inlet_v4 >> 20);
  prev4 = inlet_v4;
}

if (inlet_v5 != prev5) {
  MidiSend3((midi_device_t)attr_device,
            MIDI_CONTROL_CHANGE + (attr_channel - 1),
            5 + inlet_startcc + param_startcc, inlet_v5 >> 20);
  prev5 = inlet_v5;
}

if (inlet_v6 != prev6) {
  MidiSend3((midi_device_t)attr_device,
            MIDI_CONTROL_CHANGE + (attr_channel - 1),
            6 + inlet_startcc + param_startcc, inlet_v6 >> 20);
  prev6 = inlet_v6;
}

if (inlet_v7 != prev7) {
  MidiSend3((midi_device_t)attr_device,
            MIDI_CONTROL_CHANGE + (attr_channel - 1),
            7 + inlet_startcc + param_startcc, inlet_v7 >> 20);
  prev7 = inlet_v7;
}
