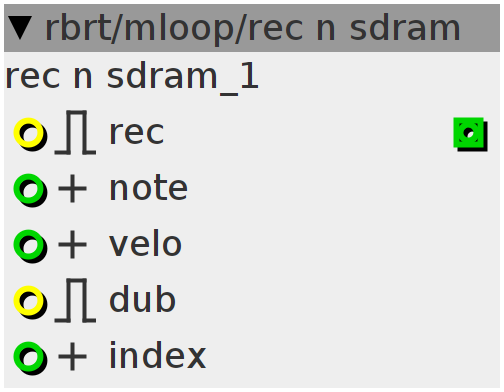

rec n sdram

records notes,as pitch and velocity,to a table with the same name as the object. after recording,the recorded notes are translated to a sequence with 512ppq resolution. the maximum recording length is 42 seconds,with a maxium of 512 events (or,256 notes played) outlet 'length' provides the recording length,in order to drive a 'ktransport' -object. use 'note play' to play the sequence.
Author: Robert Schirmer
License: BSD
Github: rbrt/mloop/rec n sdram.axo

Inlets

bool32.risingfalling start/stop recording

bool32.risingfalling dub

int32.positive note

int32.positive velo

int32.positive index

Outlets

int32 length of recording in k-ticks

Declaration
uint32_t tc;
uint16_t count;
bool rec;

uint8_t pren;
uint8_t prev;
uint8_t velo;
bool trig;

static const uint16_t LENGTHPOW = 9;
static const uint16_t LENGTH = 1 << 9;
static const uint16_t LENGTHMASK = (1 << 9) - 1;
static const uint16_t BITS = 16;
static const uint16_t GAIN = 12;
uint16_t *array;
uint32_t *recarray;

uint32_t bitmask = 0b11111111111111110000000000000000;
uint32_t bitmask2 = 0b00000000000000001111111111111111;

uint16_t target;

uint8_t _note;
uint8_t _velo;
Init
trig = 0;
pren = 0;
prev = 0;
static uint16_t _array[attr_poly][LENGTH] __attribute__((section(".sdram")));
array = &_array[parent->polyIndex][0];

static uint32_t _recarray[attr_poly][LENGTH] __attribute__((section(".sdram")));
recarray = &_recarray[parent->polyIndex][0];

{
  int i;
  for (i = 0; i < LENGTH; i++) {
    array[i] = 0;
    recarray[i] = 0;
  }
}
Control Rate
if (inlet_rec && !rec) {
  rec = 1;
  tc = 0;
  count = 0;
  pren = 255;
}

if ((inlet_note != pren) || (inlet_velo != prev)) {
  trig = 1;
  pren = inlet_note;
  prev = inlet_velo;
}

if (rec) {
  tc++;
  if (trig) {
    recarray[count] = ((tc << 16) + ((inlet_note + 1) + (inlet_velo << 8)));
    count++;
  }
}

outlet_length = tc;

if (rec && (!inlet_rec)) {
  rec = 0;
  int i;
  for (i = 0; i < 512; i++)
    array[i] = 0;
  int ii;
  for (ii = 0; ii < count; ii++) {
    target = (((recarray[ii] & bitmask) / tc) * 512) >> 16;
    while (array[target] > 0)
      target++;
    array[target] = recarray[ii] & bitmask2;
  }
}

if (inlet_dub) {
  if (trig) {
    target = inlet_index;
    while (array[target])
      target++;
    array[target] = (inlet_note + 1) + (inlet_velo << 8);
  }
}

trig = 0;
