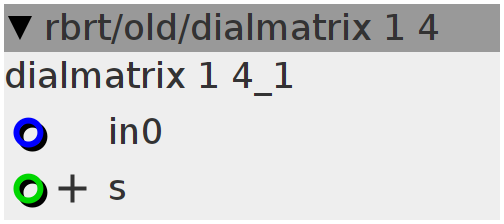

dialmatrix 1 4
demultiplexes incoming data to 4 dials.the target is set by the inlet 's'. the dials have to be named '0' , '1' , '2' ,'3'.
Inlets
frac32 in0
int32.positive s
Outlets
None
Declaration
int32_t prev0;
Init
prev0 = 0;
Control Rate
if ((inlet_s == 0) && (inlet_in0 != prev0)) {
PExParameterChange(&parent->PExch[PARAM_INDEX_0_value], inlet_in0, 0xFFFD);
}
if ((inlet_s == 1) && (inlet_in0 != prev0)) {
PExParameterChange(&parent->PExch[PARAM_INDEX_1_value], inlet_in0, 0xFFFD);
}
if ((inlet_s == 2) && (inlet_in0 != prev0)) {
PExParameterChange(&parent->PExch[PARAM_INDEX_2_value], inlet_in0, 0xFFFD);
}
if ((inlet_s == 3) && (inlet_in0 != prev0)) {
PExParameterChange(&parent->PExch[PARAM_INDEX_3_value], inlet_in0, 0xFFFD);
}
prev0 = inlet_in0;
