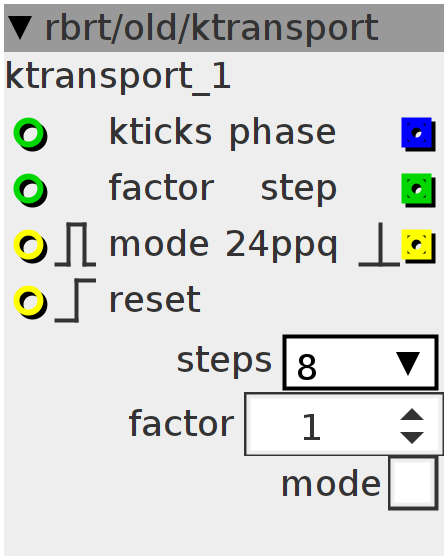

ktransport
sort of a transport for sequencing. 3000 at inlet 'kticks' will result in a 1hz wave ranging from 0 to 64. also,a position between 0 and the value of 'steps' is put out,as well as 24ppq - pulses. 'factor' sets a multiplikation or divison factor,while 'mode' selects whether to multiply or divide the 'tempo'.
Inlets
int32 length in kticks
int32 adds to 'factor'
bool32.risingfalling or 'mode'
bool32.rising reset phase
Outlets
frac32 phase 0. till 64.
int32 step index from 0 to 'steps'
bool32.pulse 24 ppq pulse
Parameters
bool32.tgl 0 = multiply, 1 = divide
int32 multiplication or division factor
Attributes
combo how many steps per bar?
uint32_t Phase;
uint32_t r;
uint64_t freq;
uint32_t base;
uint8_t factor;
uint8_t steps;
uint32_t prev;
uint32_t ppq;Phase = 0;
r = 1;factor = inlet_factor + param_factor;
base = (param_mode || inlet_mode) ? (inlet_kticks * factor)
: (inlet_kticks / factor);
freq = (int)(281474976710656.f / (base * (128 << 7)));
steps = 29 - attr_steps;
{
if (inlet_reset && r) {
Phase = 0;
r = 0;
} else {
if (!inlet_reset)
r = 1;
Phase += freq >> 2;
}
outlet_phase = (Phase >> 5);
outlet_step = (Phase >> steps);
ppq = ((Phase >> 25) * 3) >> 2;
if (ppq != prev) {
outlet_24ppq = 1;
prev = ppq;
} else
outlet_24ppq = 0;
}
